Juki TL98Q Long-arm Machine, Grace New & Improved Pinnacle Aluminum Frame, and Grace Speed Control (Single Prong)
Call 1-800-401-8151 for details.
Product Info
Images
Reviews
Accessories
Purchase the POPULAR Juki TL98Q with an incredible affordable deal! Package includes a Pinnacle Frame!
The Sewing Machine: POPULAR Juki TL98Q!
Single Needle, Lock Stitch Machine for straight stitching and quilting is also perfect for tailoring, dressmaking and home decor items. It comes included with an extension table Darning/Embroidery Foot - (Also called "Free Motion" Foot), 1/4" Seam Foot, Rolled Hem Foot, Zipper Foot and walking foot!
The new Juki TL-98Q is a high-quality sewing and quilting machine designed to replace the TL-98E. The TL-98Q is a portable, lightweight machine that is easy to transport. The arm and bed of the TL-98Q are constructed of aluminum die-casting to ensure industrial-quality sewing. The larger work area enables maneuverability of large materials. An auxiliary table extends the work area to 23" to allow for even larger projects.
Watch a video introducing the Juki TL98Q!
SewingMachinePlus.com Customer Personal Review
"Purchased this machine when it first came on the market. I have been sewing everything on this machine including quilts with absolutely no issues at all. I started teaching my granddaughters how to sew this summer and contemplated bringing out my older machine for the sake of ease and simplicity but decided that the JUKI wouldn't overwhelm them. I was right! My ten year granddaughter even threads the machine and fills the bobbins. She loves this machine. I promised to purchase her first sewing machine and now I have to figure out how to "sell her" on a machine that's not too expensive. I might have to purchase anther one just for her." - Kathleen, Coral Springs Fl (Jul 23, 2010)
For more customer reviews, click the "Review" tab of this page!
Juki TL98Q Machine Features
These are the following key features of the Juki TL98Q
Automatic Thread Trimmer The machine is equipped with an automatic thread trimmer device that simulaneously trims the needle and bobbin threads at the sewing end by lightly pressing the push-button. It uses the thread trimming mechanism.
Even Feed Foot With its reliable feed, the even feed foot ensures the machine's ability to produce beautiful seams when sewing difficult-to-feed fabrics such as georgette and velvets, as well as heavy weight materials such as leather.
Heavy Weight Materials are sewn with Ease The speed control mechanism, operated by microcomputer, allows the machine to sew materials at low speeds. This provides for accurate feed and perfect stitching when sewing heavy weight fabric, quilting and multiple layers of materials.
Predetermined Stop Position of the Needle When you stop sewing, the machine will come to an accurate stop with the needle down. To move the needle up or down as desired, simply press the needle up/down button.
Two Types of Quilting Foot/Drop Feed The quilting feet are designed for free motion quilting and free-hand embroidery. The feed dog can be raised and lowered simply by depressing a switch. When quilting, the drop feed allows you to sew curved stitches with ease.

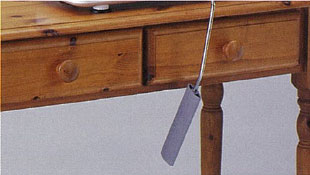

Knee Lifter Lever The knee lifter level allows you to lift/lower the presser foot without using your hands. The presser foot can be raised as high as 12mm.
Foot Pedal Switch for Thread Trimming As with an industrial sewing machine, the thread trimmer can be activated with the foot pedal switch. It greatly increases sewing efficiency.
Automatic Needle Threader The push lever automatic needle threader easily threads the needle without eyestrain and allows you to start sewing quickly.
Thread Tension Scale The machine is provided with the thread tension scale, which allows you to adjust the tension according to the thread and material to be used.
Easy Bobbin Replacement A new bobbin case latch and an enlarged bobbin case area make it easier to remove and replace the bobbin.
Adjustment of Presser Foot Pressure Presser foot pressure can be adjusted according to the fabric being sewn by turning a regulator located on the top of the machine.
Additional Features
Light weight and portable
Supplied with HA-type needles.
Arm and bed of TL98Q is contructed of aluminum die-casting.
Large work area - wider handling area than conventional sewing machines.
Longer arm and sewing bed for easy handling of quilts
High sewing speeds up to 1,500 spm
Basic sewing functions operated by foot pedal
Automatic bobbin winder
Included Accessories
These are the following accessories that will come with your Juki TL98Q
Hemming Foot
Zipper Attaching Foot
Even Feet Foot
1/5 Quilting Foot
1/4 Quilting Foot
Compensating Presser Foot
Small screwdriver
T-screwdriver
Lint brush
Spool cap
Oiler
Needle pack
Straight stitch foot
Power cord
Foot control w/ thread trimmer
Instruction manual
Knee lever
Extension table (see product image)
Juki TL98Q Machine Specifications
Sewing Speed: Max. 1,500 r.p.m
Stitch Length: Max. 6mm
Lift of the Presser Foot:
- By Lever, Max. 9mm
- By Knee Lifter, Max. 12mm
Needle: HAx1 (130/705H) #7-#18 (HLx5#9-#16)
Dimensions: 452 (W) x 350 (H) x 219 (D) (mm)
Weight (Machine only): 11.5kg
Rated Voltage / Power Consumption: 120V / 1.4A, 100W

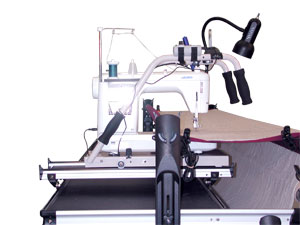

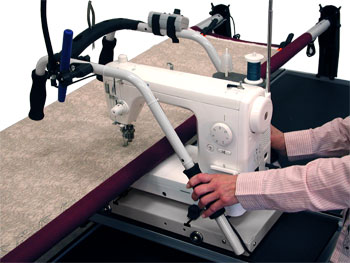

The Grace Pinnacle Frame is a machine quilting frame designed for the optimal quilting experience with completely new innovative frame components, improved performance and simple assembly. Rail extensions (included) take the frame out to King (120"), or you may set it up in Crib (60").
New smooth, seamless tracking; no metal on metal. The key to the entire system is how the sewing machine tracks. With the Pinnacle your machine rests on two specially designed, sturdy plates that track perfectly with ball-bearing rollers for an incredibly smooth ride. There is no wobbling. These plates allow for up to 16 inches of forward/reverse travel in the work area. The only limit to your reach is your own machine. The carriage accommodates any machine with up to an 18" throat space. It provides enhanced stability and locks your machine in place with four base clamps.
Easy Grip Handles on Both Sides - Easy-grip handles allow quilting from both sides of the frame.
A Smooth Cushioned Ride - Grace provides the following for the smoothest, quietest track system you can find:
Precision bearing wheels
Wobble-free platforms
Seamless plastic tracks that install perfectly straight. No seams or bumps!
Bungee Clamps for Easy Side Tension - The Pinnacle comes with four side-tension clamps (two for each side). Simply apply the clamp, then pull and secure the bungee cord in the side slot. Fast and easy!
Fabri-Fast Rails Included - This is a no-baste, four-rail system. Our custom designed rails come with the new Fabri-Fast system for fast and easy fabric installation. Simply push your fabric and tubing into the Fabri-Fast slot with the Fabri-fast tool included. Fabric goes in and stays in, straight and clean.
Sturdy Design - The Pinnacle's sturdy design includes table tops ideal for pantographs. Aluminum track supports add to the frame's robust construction and professional appearance.
Maximum Stability - The frame has an angled leg design to maximize stability. Customized components include reinforced thermoplastic rail uprights, rigid steel and aluminum supports, and matte-finished table surfaces.
Professional Rail System - The easy-in, easy-out rails install with ease, and roll using a high-precision ratcheting system. Advance and reverse your quilt with the simple flip of a switch.
Professional Rail System - The easy-in, easy-out rails install with ease, and roll using a high-precision ratcheting system. Advance and reverse your quilt with the simple flip of a switch.
Smooth Tracking - The tracks for the bottom plate are engineered specifically for the Pinnacle out of ABS plastic. The steel wheels on plastic provide for a cushioned, smooth ride. The tracks are in-set on the tabletops in pre-cut grooves, so they automatically align and are guaranteed to stay straight - you never have to worry about them being mis-aligned! With the track being one single length, there is no worry of seams or bumps.
The Grace Speed Control is a universal foot pedal replacement that works with many machines on the market. The easily accessible setting adjustment allows you to have compatibility with multiple machines. With Grace Speed Control, when you switch machines it will too!
Speed dial that allows you to set your machine to desired stich speed.
On/Off Button
Pulse Button (machine runs untill you release it, or touch and release for a single stitch)
Thread Cutter Button --activates your machine's thread cutter. (Only compatible with the Juki 98 series.)
Velcro Straps for easy attachment to your frame.
Compact Ergonomic Design.
The Speed Control Box comes with a 3.5mm Male Mono Plug connector and a 5.5mm Female Power Plug. (Machines with other connectors are not currently compatible.)
Purchase the POPULAR Juki TL98Q with an incredible affordable deal! Package includes a Pinnacle Frame!
