Babylock Embroidery Machine Professional Plus - BMP9

Babylock BMP9 Embroidery Professional Plus

The Baby Lock Embroidery Professional Plus is the perfect machine to support your personal or professional embroidery ambitions. It has the speed and abilities of an industrial machine yet is compact enough to fit in a home sewing room. It has easy features to save you time and money. There will always be a demand for custom clothing. From wedding gifts and infant garments to company logos and sports teams, there is a growing need for embroidery!

Babylock BMP9 Embroidery Professional Plus Key Features

Support Features

• Built-in operation guide with 4 videos.
• Built-in help messages.
• Auto save feature. The last design is saved automatically when power is turned off or a power failure occurs.
• Shipping weight (117 lbs. or 53 kg.).
• Machine weight (81 lbs. or 37 kg.).
• Warranty.
• 5 years limited.
• 2 years computer circuit.
• 1 year electrical.
• 1 year parts.
• 1 year labor.
• Optional Gold Standard Comprehensive Care Program available.

Flexible Technology Features

• Enjoy the TruView display. An 8.5 inch HD LCD screen with 480 x 800 pixels has an exceptionally clear and wide 160 degree viewing range.
• See embroidery designs with ease. Two LED lights illuminate the entire work area.
• 6 Needles, one position for each needle. Embroider multi color designs without frequent thread changes.

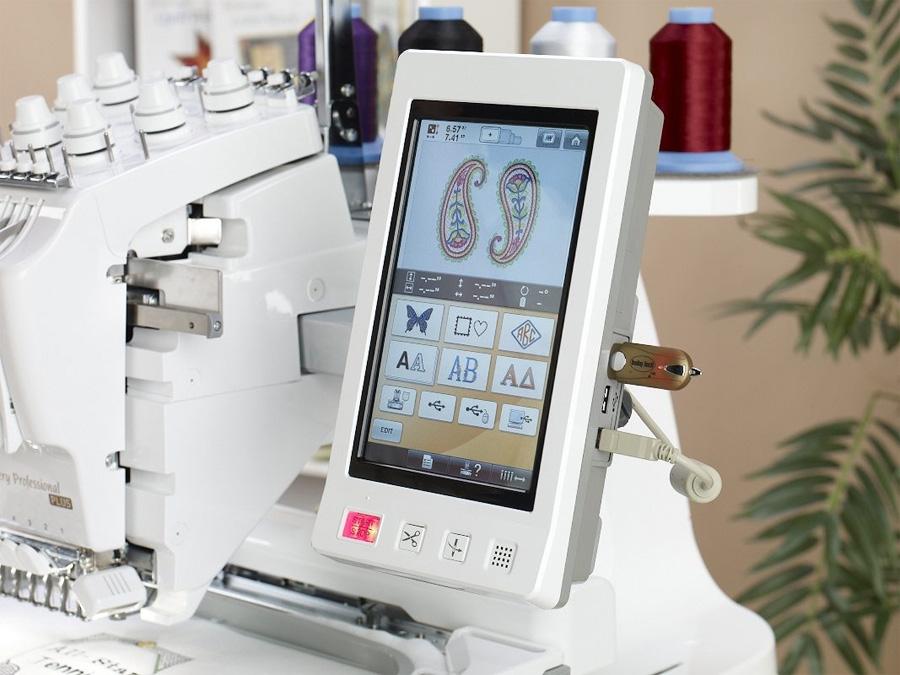

TruView Color Touch Screen

• Shows 260,000 colors.
• Measures 8.5" diagonally.
• 160 Degrees for optimum viewing.

TruView Touch Screen Features

• Design placement using drag and drop capabilities.
• Estimated embroidery time display and stitch count.
• Needle advancement (1, 10 or 100 stitch increments).
• Measurements displayed in inches or mm.
• Color separation.
• Thread color indicator.
• On–screen hoop size indicator.
• 300 Color names.
• Screen saver customization.
• Customizable mouse pointer.

Software Connectivity

• Optional external USB 1GB flash drive. Storage size up to 32GB.
• 3 USB ports.
• 2 Type A ports.
• Version 1.1 connects with mouse, hub, and floppy drives.
• Version 2.0 connects with flash drives and CD-ROM drives.
• 1 Type B USB port connects directly to a PC.
• Reads multiple formats: PES, PEC, DST, PHC.
• Upgrade with the USB connection or removable flash drive.

Semi-Industrial Features

• 6 Needles. 1 position for each needle.
• Maximum speed is 1,000 stitches per minute.
• Embroiders up to 7-7/8 inch x 11-3/4 inch (200mm x 300mm) embroidery field.
• Stitch reading capacity.
• 500,000 Stitches per design. Or
• 500 Color changes. Or
• 100 Combined designs.

Customizing Features

• Built-in embroidery designs.
• 60 Designs.
• 28 Fonts including large floral alphabet, Baby Lock exclusive script and Greek letters.
• 3 Monogram designs with fonts frames.
• 120 Frame combinations.
• Combine embroidery designs on screen.
• Character / text array function.
• Character spacing.
• Pattern rotation (1 degree, 10 degrees, and 90 degrees).
• Design size change (10% reduction and 20% enlargement) on most designs.
• Needle forward and reverse position placement. 1, 10, or 100 stitch increments.
• Easy-to-use switch spool key to rotate color spools on screen.
• Design duplication up to 20 times in both directions.
• Automatic appliqué stitching.
• Automatic basting.
• Mirror imaging.
• Increase design thumbnail from 100% to 150% for easy viewing.
• Change color selections within designs.
• Continuous border capabilities and color sorting on border designs.
• Monochrome option for embroidery designs.
• Short stitch delete.
• Instant needle edge placement (8 starting and 8 ending positions).
• Thread color display in 6 options.
• Custom color displays in 3 options.
• Original Palette.
• Custom Palette 1.
• Custom Palette 2.
• Embroidery fields (4 hoops included).
• 7-7/8 inch x 11-3/4 inch (200mm x 300mm).
• 5-1/8 inch x 7-1/8 inch (130mm x 180mm).
• 4 inch x 4 inch (100mm x 100mm).
• 1-1/2 inch x 2-3/8 inch (40mm x 60mm).
• Hoop sensor advises hoop size for design chosen.
• On-screen count and running time system.

Convenience Features

• Increased CPU processing speed. Three times faster than the BMP8.
• Built-in memory: 1.7MB.
• Bobbin system: front loading, vertical rotary hook.
• Uses pre-wound bobbins.
• Push button, automatic needle threader.
• 2 LED lights to illuminate work area.
• Upper thread breakage sensors.
• Manual tension control.
• Automatic thread trimmer (upper and lower).
• Start / Stop button with lock feature.
• On-screen speed control while stitching.
• Change screen and thumbnail background color.
• Built-in stylus holder with stylus.
