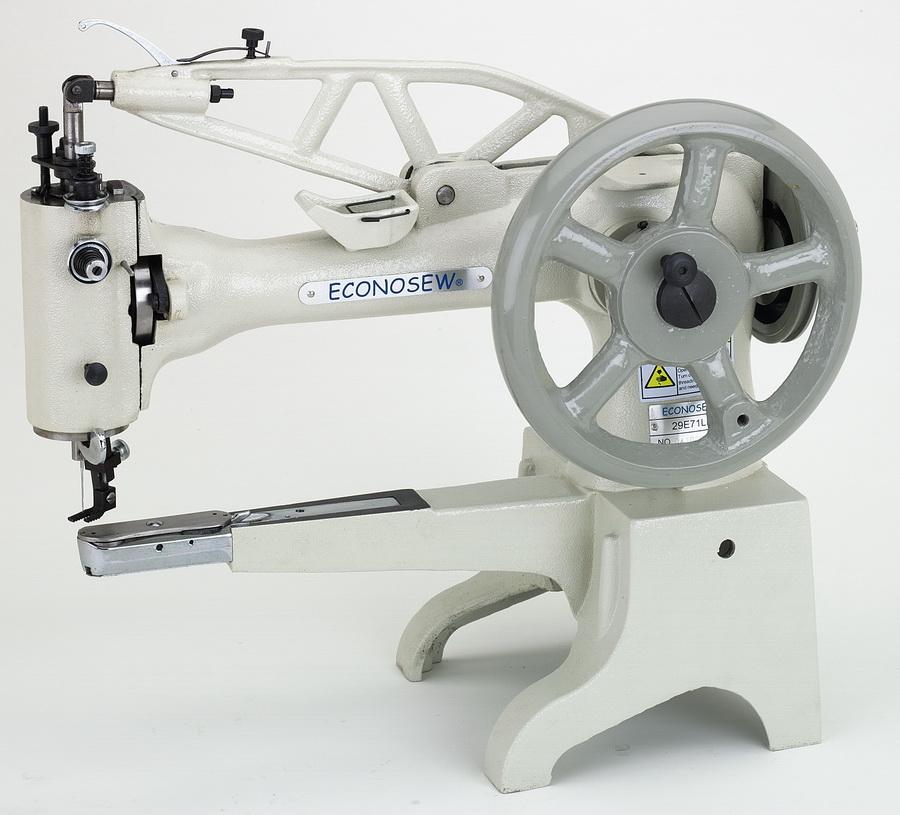

ECONOSEW Extra Heavy Cylinder Bed Lockstitch Machine 29E71T

ECONOSEW Extra Heavy Cylinder Bed Lockstitch Machine 29E71T

Disclaimer: Due to the weight of the table with motor, there might be some minor marring or scratches due to shipping. This is normal when shipping industrial machines because of the weight associated with the items.

SKU : econ-29E71T

Econosew

🏆 50+ Year Authorized Dealer | 60-Day Money Back Guarantee
Price Match — We Beat Any Price
Free Shipping on Orders Over $49 | Over 1 Million Happy Customers!

This product is currently out of stock. Click here to view similar products.

Call 800-401-8151 For Details.
Condition:  Brand New

Have you seen this item for less?

Product Information

Cylinder Bed, Top Feed Single Needle Lockstitch Patching Machine

with Standard Bobbin, 12" Arm


Specifications

  • Model: 29E71T
  • Maximum Sewing Speed: 500 spm*
  • Stitch Length Adjustment: 1 to 7mm
  • Presser Foot Lift: 10 ½mm
  • Needle System: 29x3
  • Feed Type: Top-Feed
  • Hook Type: Small oscillating shuttle hook
  • Working Space: 310mm
  • Depth of Cylinder: Bed 22 mm
  • Width of Cylinder: Bed 25 mm
  • Lubrication: System Manual
* Depends on thread, material & type of operation

Features

  • Extra small cylinder bed
  • Oscillating shuttle
  • Universal upper feed for stitching in any direction without turning work
  • Double ended needle plate with different size holes at back end to accommodate various size needles
  • Machine can be driven by foot treadle or hand crank
  • Hand wheel can be mounted on front or right end of machine
  • It can sew extra heavy materials like leather, rubber, canvas & plastic; especially for cylindrical products
* Specifications subject to change without notice

Optional Fully Assembled Table

Table & Clutch Motor

Table & Servo Motor

Choose your add-on table & servo motor in the Dropdown menu above

This Package has an optional Fully Assembled Table and a Servo Motor.


Motor Options

With so many options available for motors when we talk about replacing or buying a motor for our industrial sewing machine, there is one important point to keep always in mind "The Speed". Regardless of brand or price, motors come in two different configurations:

  1. Fixed-Speed Clutch Motor
  2. Adjustable-Speed Servo Motor

Clutch motors operate at a fixed speed, typically between 1725 - 3450 rpm, depending on the type of machine. Servo Motors on the other hand are speed adjustable. The two major advantages of the Servo Motor are that you can control the speed of the motor and that the motor is completely silent when the pedal is not engaged.

Some other advantages of the Servo Motor include:

  • They consume up to 90% less energy than clutch motors
  • 1/3 lighter than clutch motors
  • Reverse motor rotation with the flick of a switch
  • Nothing to wear or adjust
  • Adjusted speed remains the same no matter how hard the pedal is pressed

Most of our customers find that the sewing machine is much easier to control with a Servo motor because of the speed control. This is especially helpful for beginner sewers but also for projects that simply don't require high speed stitching.

This machine package includes a fixed-speed clutch motor.

If you need help deciding what option is best for you, give us a call at 800-401-8151, and have one of our experts walk you through the decision.


Optional Space Saver Table

Space Saver Table

Choose your add-on table from the Dropdown menu above
