This product is currently discontinued. Browse our full line of Sewing Furniture or call us at 800-401-8151 to find a similar product.
SKU : 5400C
Galaxy Sewing Cabinets
🏆 50+ Year Authorized Dealer | 60-Day Money Back Guarantee
Price Match — We Beat Any Price
Free Shipping on Orders Over $49 | Over 1 Million Happy Customers!
Pickup currently not available

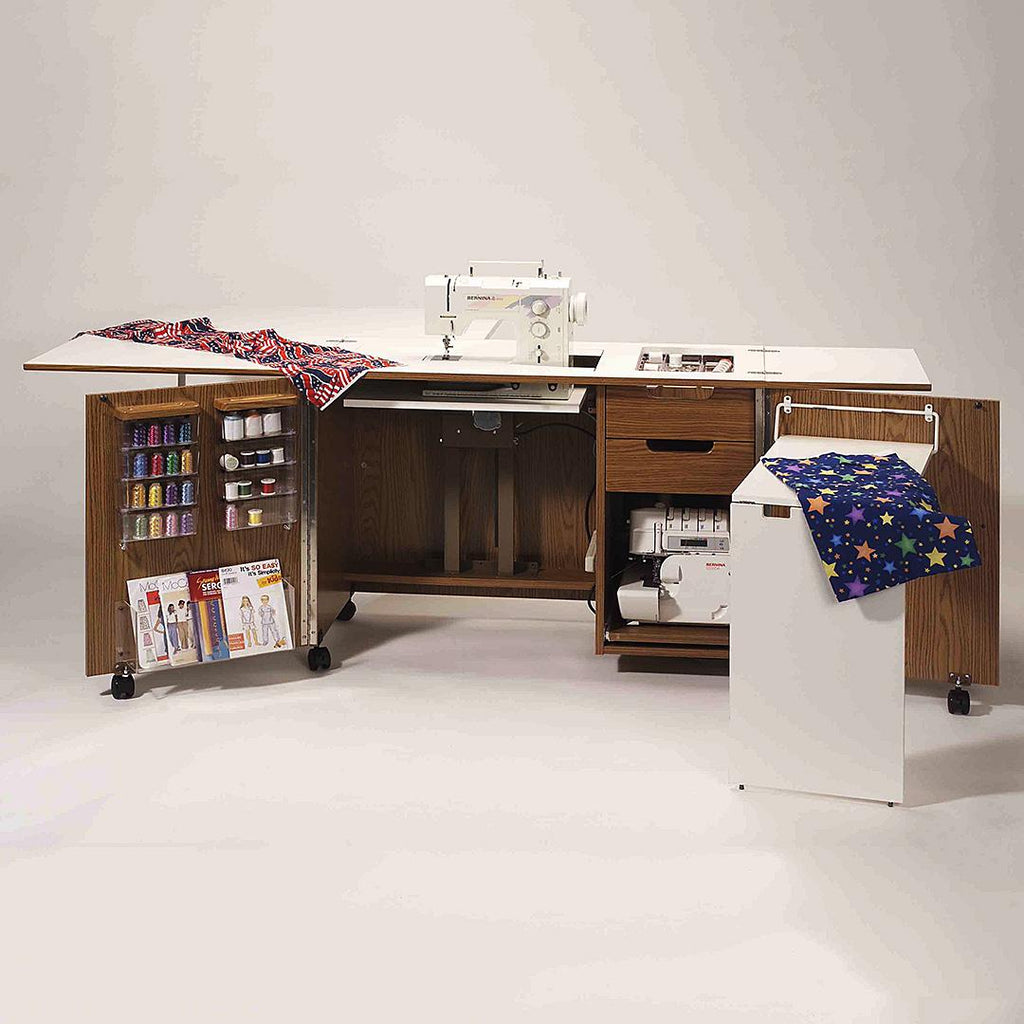

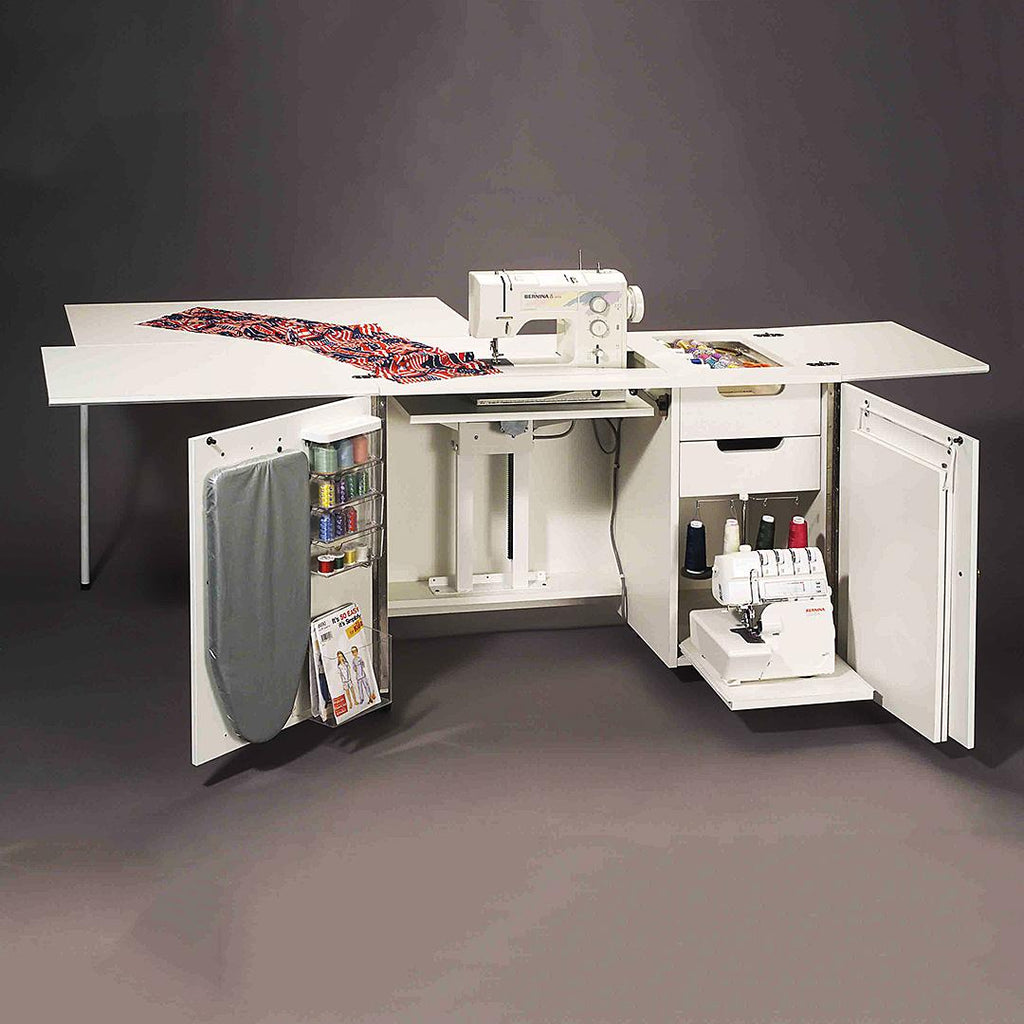

Enjoy convenient storage of your serger sewing machine with the Galaxy Sewing Cabinets 5400 cabinet. Your sewing machine can be set up easily with an electric lift, and a convenient power strip is located inside the cabinet. Accessory bins are included to hang on the door, and a divided notions tray is located under a leaf. The leaves are self-supported for a large workspace. The adhesive measuring tape can be placed wherever you prefer. Order an insert to customize your cabinet to your machine.
Serger shelf height 13 ½" can accommodate larger machines by removing the bottom drawer
Our electric lift is strong (up to 75 pound capacity), easy to use and effortless at the touch of a switch. The new optional Auto-Stop feature makes using the lift even easier and extends the warranty to 5 years.
The electric lift is very strong (75 pound capacity), easy to use and effortless at the touch of a switch. The new optional Auto-Stop feature makes using your lift even easier and extends the warranty to 5 years. Preset the lift to stop at the flatbed position (where you would use an insert) and it will stop at that level perfectly every time, eliminating the hassle of running it up & down until you hit the right spot. Then, if you want to use your machine in the free-arm position you simply hold the bypass switch and press the rocker switch to go up until the unit stops again by itself. See the instruction in the Auto-Stop section of this product page.
Note: Shown in the top image is the current structure of the electric lift, but wiring is now a separate power pack that attaches to the switch (pictured here).
The Standard Height of the lift is 23 Âľ (pictured above) with a total travel height of 17 ÂĽ".
Note: The Electic Lift can be customized to heights from about 19" on up, and may cost a little extra for customization. Additional cost depends on a case-by-case basis. If you need a custom Lift call (Toll Free): 800-401-8151.
The "wings" or platform supports can be adjusted to change their width, but take care as excessive bending may damage the powder coating. Typically, they wings measure 17 Âľ" to 18" from front tip to tip. From the back of the mounting bracket to the first edge is 3" and to the front tip is 11".
The Mounting Brackets top & bottom are 11 " wide by 2 3/16" deep at the bottom with a back mount flange that comes down ". There are three 3/16" holes across the mounting brackets on each top, bottom and the back flanges (exception: the middle holes on the back flanges are ¼") measuring from the sides are ½" and the middle hole 5 11/16". The top & bottom holes are 1 7/16" from the back and the flange holes are 9/16" from the top or bottom per case.
Electrical cord consists of a C-13 typically, C-5 or C-7 connector to US NEMA 5-15P plug.
You can use petroleum jelly (Vaseline) to coat the exposed metal to prevent rust and keep the operation of the lift quiet. For longer service: Never allow your lift to slam into the top or bottom (Auto-Stop v2.0 add-on prevents this). Check the movement & condition of cords for wear, cracking and freedom of movement.
Your Electric Lift comes with a 1 year parts & labor manufacturer's warranty on moving and electrical parts, i.e.:
The addition of the Auto-Stop feature doubles the warranty to 2 years. Warranty is voided if Lift is misused. Lift mechanisms should be inspected for wear, alignment and function at least yearly and maintained accordingly to prevent failure. A failure of the Lift could result in a vertical fall. Failure to maintain proper function of your Lift may result in other damages for which we are not responsible.
Product specifications & pricing are subject to change without notice. Actual colors may vary from those shown. Fabric, sewing/serging machines and miscellaneous items are for demonstration and not included with the unit unless specified.
Available in White, Rustic Maple and Swiss Chocolate. *
Choose Your Preferred Color in the Dropdown Menu Before Checkout
Note: Some assembly is required. Product specifications and pricing are subject to change without notice. Actual colors may vary from those shown. Fabric, sewing/serging machines, and miscellaneous items are for demonstration and not included with the unit unless specified.
It makes the lift stop at the Stowage (bottom), Flatbed (adjustable) and Free-Arm (desktop) positions.
Pictured: A rear view of a lift with the Auto-Stop feature installed. Notice the threaded rod and the bottom stop on the opposite side from the gear rack.
It makes the lift stop at the Stowage (bottom), Flatbed (adjustable) and Free-Arm (desktop) positions.
Perhaps better than saving on wear and tear on the lift itself, extending the warranty to 5 years, this consumer friendly feature removes the hassle of seeking that just-right position for your insert/filler for working as a flatbed machine.
Press & hold the UP/DOWN switch as usual until the lift stops by itself at either the bottom or Flatbed position. To continue to the Free-Arm position, hold the bypass button and then press UP/DOWN switch in the UP direction until the lift stops on its own. To return to the Flatbed position press DOWN until the position is passed then go UP again until it stops. To park at the bottom hold the UP/DOWN switch in the DOWN direction until it stops.
Auto-Stop installed on lifts before May 1, 2014. Press and hold the UP/DOWN switch as usual until the lift stops by itself at either the bottom or Flatbed position. To continue to the Free-Arm position hold the UP/DOWN switch in the UP direction and tap the Bypass button until the lift continues to rise without it, then ONLY hold the UP/DOWN switch in the UP direction until it again stops on its own. To park at the bottom hold the UP/DOWN switch in the DOWN direction until it stops
CAUTION: DO NOT HOLD THE BYPASS BUTTON IN as it will bypass the other limits as well and void the warranty.
Turn the threaded rod, located behind the lift rail opposite the drive rack, to adjust the Flatbed position stop by using the two jamb nuts found about 6" from the bottom of the lift WITH THE MATCHINE IN PLACE (as viewed from above). Turn the rod counter-clockwise to lower the position & clockwise to raise the position. Be sure, when checking the setting, to lower well past the level & then raise again.
Once the level is set properly it should remain exactly the same each time. However, due to the accuracy of the Auto-Stop positioning any significant change to the weight on the lift - such as adding something to the machine - may change the stop location. If the weight does change, if you change the machine altogether for instance, it is simply a matter of re-adjusting the stop for the new weight.
A lift that comes with the Auto-Stop option already installed automatically has the lift warranty extended to 5 years.
Owners of Galaxy Cabinet's current rectangular rail lift made since 2013 can have the Auto-Stop feature added after sale. Though it won't extend the warranty to 5 years (when added post purchase), it will provide added protection against the harsh conditions of running into the top or bottom and up & down jerks to get to the right Insert position, extending the life of the motor and components.
Product specifications & pricing are subject to change without notice. Actual colors may vary from those shown. Fabric, sewing/serging machines and miscellaneous items are for demonstration and not included with the unit unless specified.
You can also choose Galaxy Cabinet's optional Caddy from the dropdown menu above. Make sure to also choose your #27 Comet Caddy cabinet color in the dropdowns as well.*
* Additional cost for Rustic Maple or Swiss Chocolate.
You can also choose Galaxy Cabinet's optional Caddy from the dropdown menu above. Make sure to also choose your #32 Caddy cabinet color in the dropdowns as well.*
* Additional cost for Rustic Maple or Swiss Chocolate.
Note: Pictured Rustic Maple. Additional cost for Rustic Maple or Swiss Chocolate.
Heat resistant cover. Folds flat on door, leg, or on cabinet side. Great for ironing out wrinkles as you sew.
Removable organizer tray. They can be used in most drawer units for organizing your thread and sewing tools.
Note: 1 Notions Tray is included with your purchase. Additional Notions Tray(s) can be added for organizing your drawers and work area.
Plastic mat with inch and metric grid. The durable thick 3/16" plastic smoothes gaps in fabric cutting tables. Available in 2 sizes:
