Consew 228R-11-1 High Speed, Post Type, Single Needle, Drop Feed, Lockstitch Machine With Assembled Table

Consew 228R-11-1 High-Speed Post Bed Single Needle Drop Feed Lockstitch Sewing Machine with Assembled Table

The Consew 228R-11-1 is a high-speed, single-needle, post bed industrial lockstitch sewing machine designed for precision stitching on light to medium-weight materials. Its drop feed mechanism, vertical-axis rotary hook, and specialized roller presser foot provide controlled material handling for detailed sewing operations.

Featuring a 7-inch (178 mm) post height, reverse feed, adjustable stitch length, and a maximum sewing speed of 3,000 stitches per minute, this machine is suitable for footwear manufacturing, leatherwork, garment production, and applications requiring accurate stitching around sharp corners and tight curves.

This package includes an Assembled Table.

Applications

• Sewing light to medium-weight fabrics, leather, vinyl, canvas, and synthetic materials.
• Stitching various coated and laminated materials.
• Manufacturing raincoats, underwear, corsets, brassieres, and similar garments.
• Footwear manufacturing, including vamping, space stitching, and tipping operations.
• Precision stitching around sharp corners, narrow curves, and detailed sections.
• Attaching patches to hats, jackets, and other garments.
• Manufacturing leather accessories and specialized sewn products.
• Working with shaped articles that benefit from a raised post bed sewing surface.

Ideal for: Footwear manufacturers, leather goods workshops, garment manufacturers, embroidery and patch application businesses, and industrial sewing operations requiring a high-speed post bed machine.

Key Features

• Single Needle Lockstitch System: Produces Type 301 lockstitches for consistent and reliable stitching on compatible light and medium-weight materials.

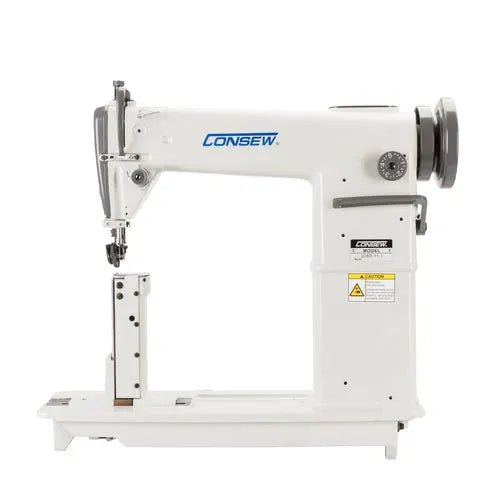

• Post Bed Design: Features a raised sewing surface that provides improved access to curved, shaped, and difficult-to-reach areas of footwear and other specialized products.

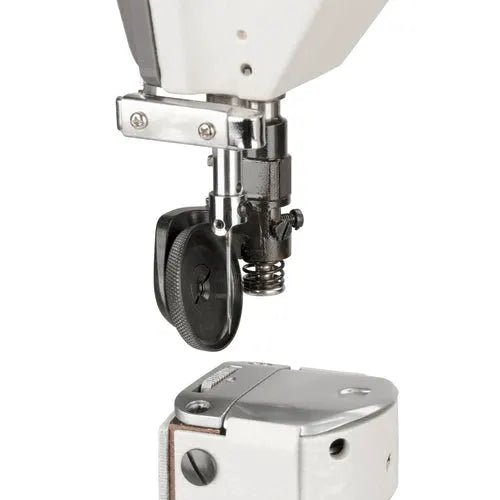

• Roller Presser Foot: Allows the operator to guide materials around sharp corners and tight curves for accurate detailed stitching.
• Drop Feed Mechanism: Provides consistent material movement during sewing operations through the machine's lower feeding system.
• Vertical-Axis Rotary Hook: Supports reliable lockstitch formation during industrial sewing.
• High-Speed Operation: Supports sewing speeds of up to 3,000 stitches per minute, depending on the material, thread, and application.
• Reverse Feed: Allows reverse stitching for securing seam ends and reinforcing stitched sections.
• Adjustable Stitch Length: Provides stitch length adjustment up to approximately 5 mm, equivalent to 5 stitches per inch.
• 7-Inch Post Height: Provides a raised work area suitable for footwear, curved components, and specialized sewing applications.
• Compact Work Surface: Features a 1-7/8" x 2" sewing surface designed for precision work on smaller or shaped components.
• Presser Foot Clearance: Provides 15/64" (6 mm) clearance under the presser foot.
• Manual Lubrication: Uses a manually maintained lubrication system for routine machine care.

Stitching Capabilities

The Consew 228R-11-1 produces a Type 301 lockstitch using a single-needle, drop feed mechanism. Its vertical-axis hook and roller presser foot make it particularly suitable for sewing curved sections, shaped products, and detailed patterns requiring precise material positioning.

• Stitch Type: 301 Lockstitch
• Feeding System: Drop Feed
• Maximum Stitch Length: 5 mm
• Reverse Stitching: Yes
• Maximum Sewing Speed: 3,000 Stitches Per Minute
• Presser Foot Clearance: 15/64" (6 mm)
• Presser Foot Type: Roller Presser Foot

The specialized post bed construction helps operators handle footwear components, garment sections, and other shaped materials while maintaining control over the stitching direction.

Note: Maximum sewing speed depends on the thread, material, and sewing application.

Technical Specifications

Assembled Table Package

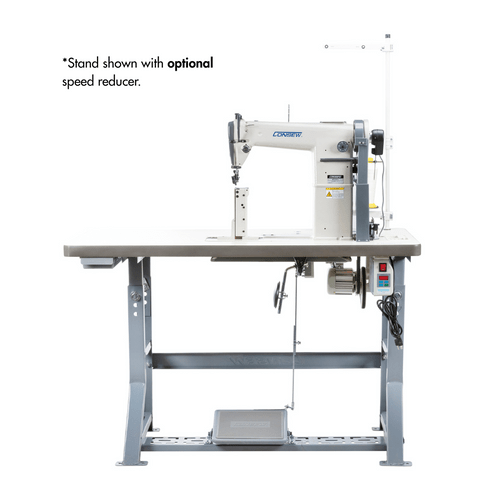

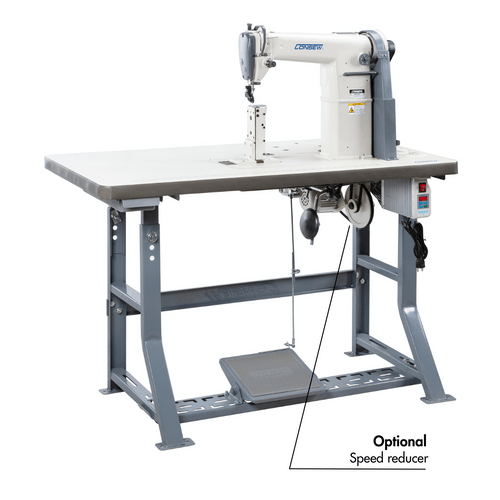

This Consew 228R-11-1 package includes an assembled industrial sewing machine table.

The table supports the machine's specialized post bed construction, providing a suitable work setup for footwear manufacturing, leather goods production, and other precision industrial stitching applications.

• Assembled industrial sewing table included
• Specialized post bed machine configuration
• Suitable for footwear and precision stitching applications
• Designed for use in industrial sewing environments

Note: The motor type and inclusion should be confirmed with the selected package configuration.

Important Notes

• The Consew 228R-11-1 is designed primarily for light to medium-weight sewing applications.
• The roller presser foot is particularly useful for stitching sharp corners and tight curves.
• The 7-inch post height provides access for specialized footwear and shaped-product sewing operations.
• Maximum operating speed depends on material thickness, thread, and sewing conditions.
• This model requires manual lubrication and routine maintenance.
• Consew documentation lists different needle and hook references. Confirm compatibility before purchasing replacement parts.
• Optional accessories and specialized attachments may require separate purchase.
