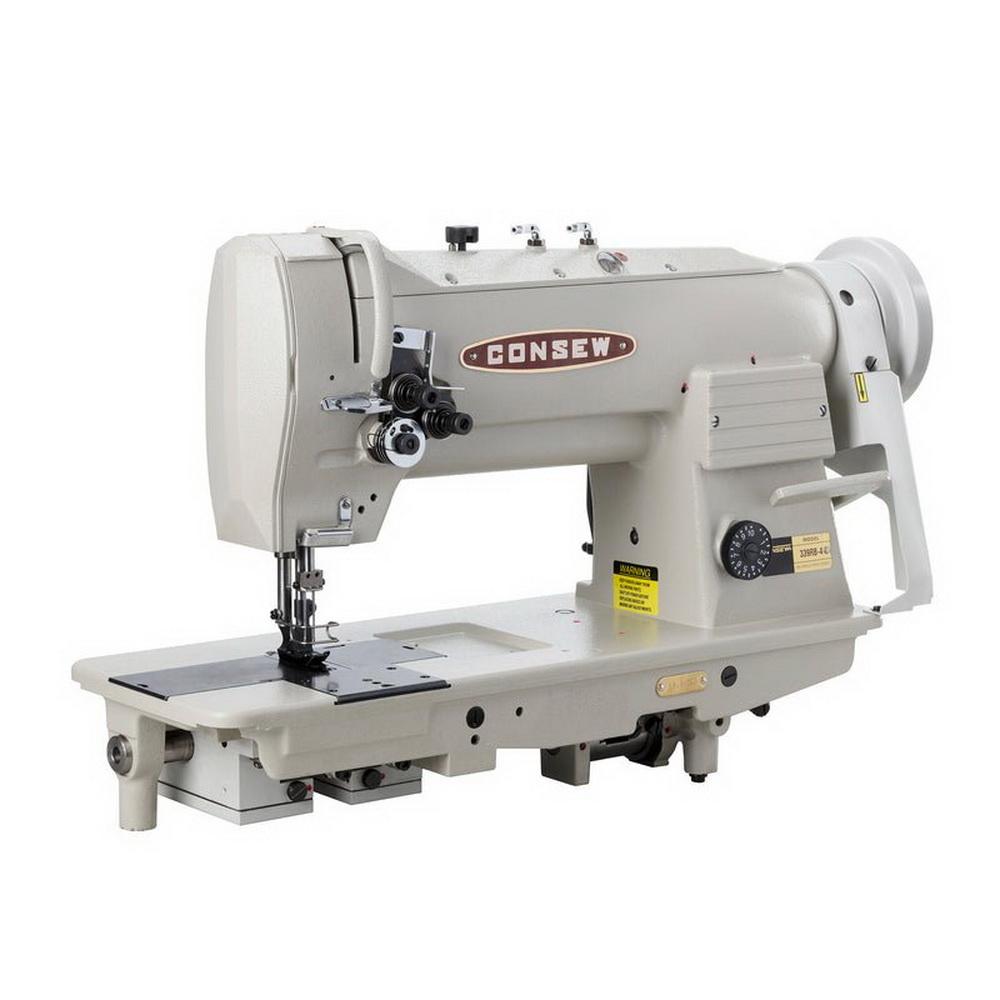

339RB-4 Heavy Duty, High Speed, Two Needle, Lockstitch Machine, Drop Feed, Needle Feed and Alternating (Walking) Presser Feet

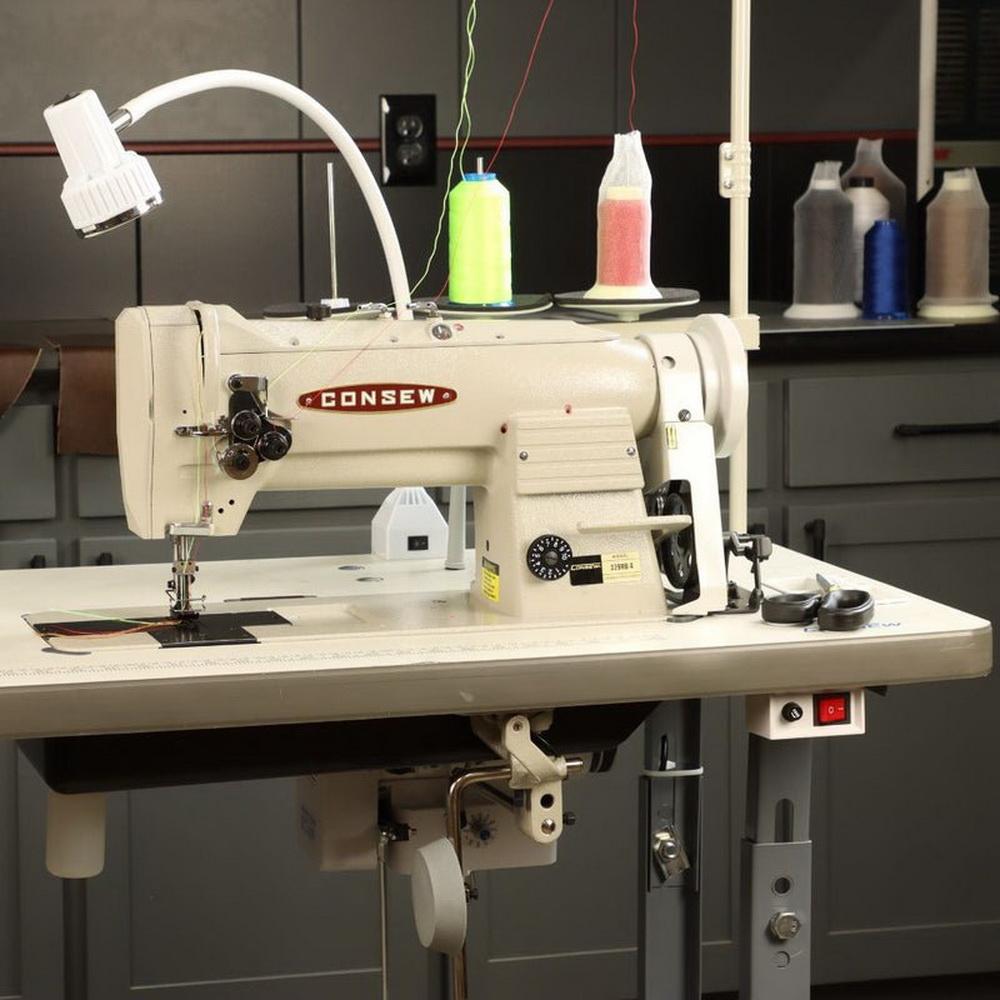

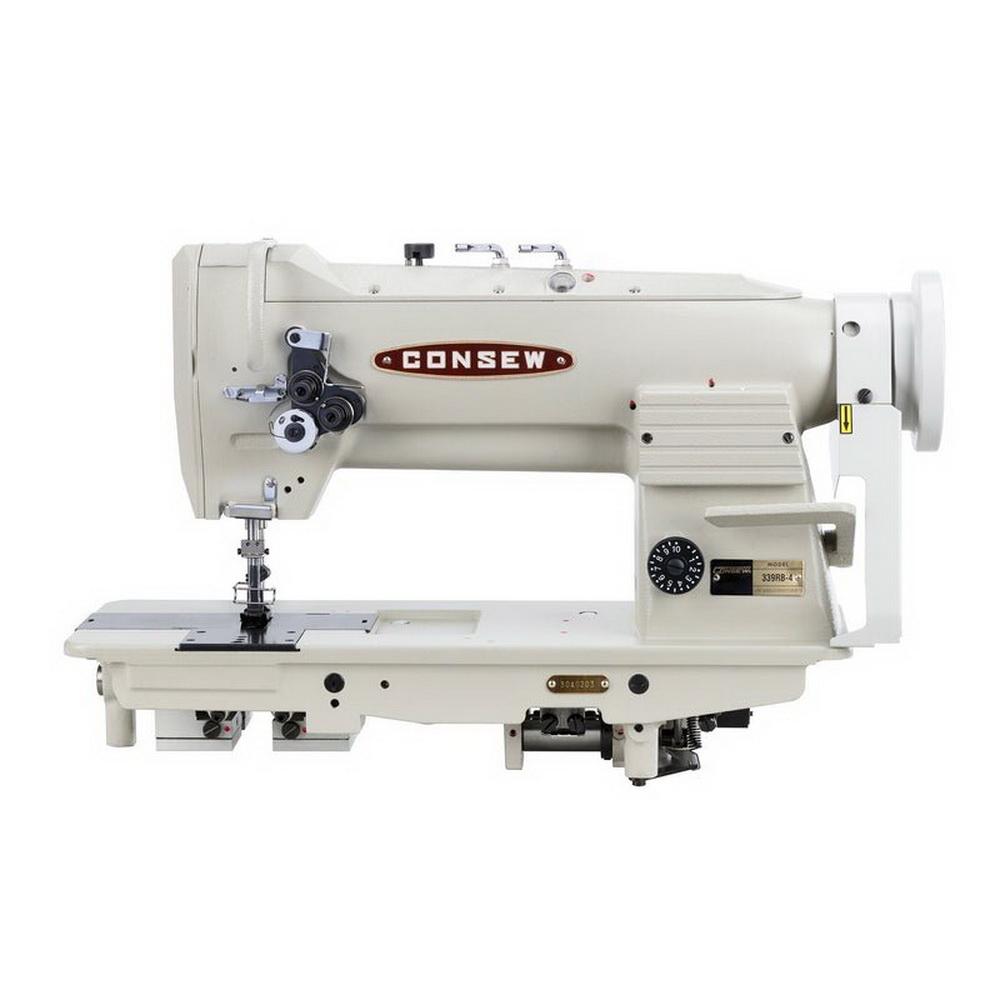

Consew 339RB-4 Heavy Duty, High Speed, Two Needle, Lockstitch Machine, Drop Feed, Needle Feed and Alternating (Walking) Presser Feet

With: Centra-Lube Semi-Automatic Lubrication System, Large Vertical Axis Hooks and Bobbins, Reverse Feed, Safety Clutch

Applications

• Suitable for sewing light to heavy-weight materials such as leather, vinyl, upholstery, synthetics, canvas, and various coated and laminated products.
• Designed for stitching auto, boat, and furniture upholstery, tarpaulins, covers, sails, tents, camping trailer covers, awnings, umbrellas, tops, bags, luggage, handbags, travelware accessories, sports and camping equipment, wearing apparel, outdoor clothing, canvas shoes, slippers, and orthopedic appliances.
• Ideal for double needle seaming, binding, taping, and piping operations.

Features

• Two-needle mechanism for parallel lines of stitches.
• Compound feed, walking foot mechanism ensures even feeding of material.

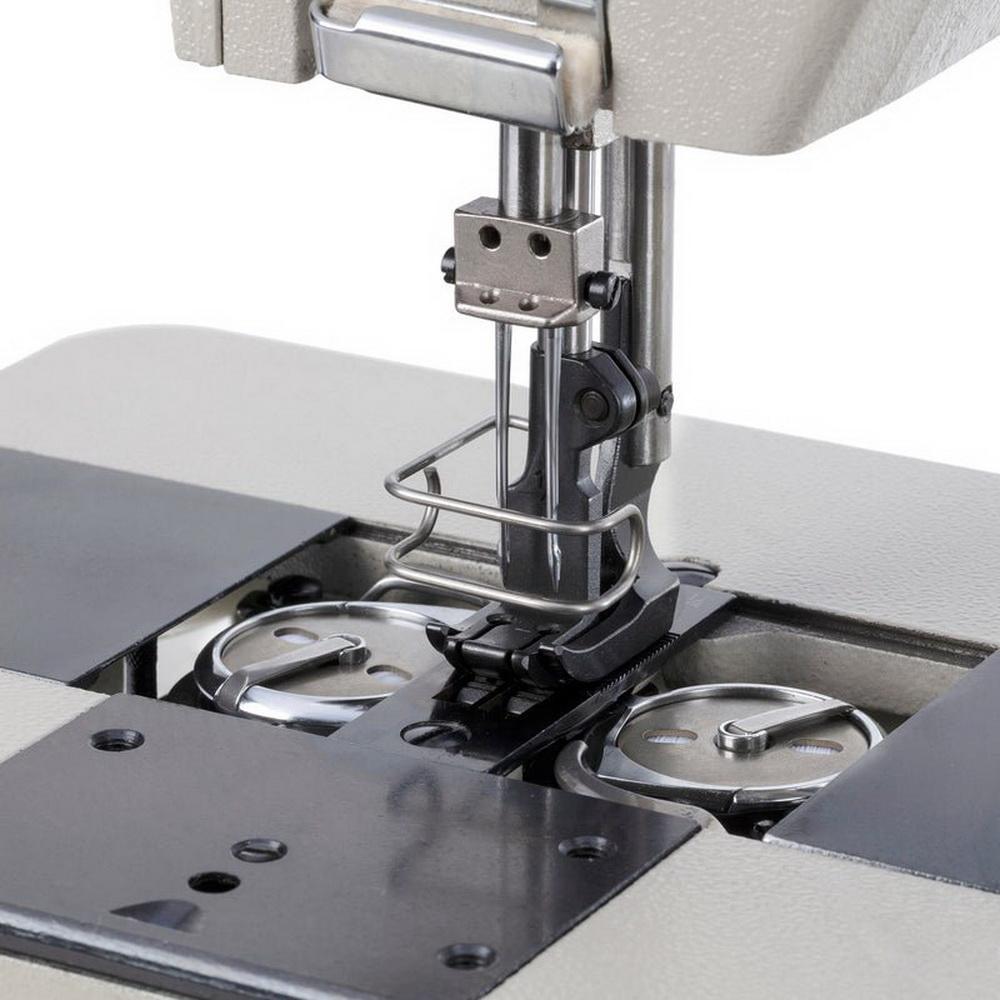

• Large hooks and bobbins for longer operation between bobbin changes.
• Centra-Lube® semi-automatic lubrication system.
• Automatic hook lubrication.
• Oil-fed take-up.
• Simple adjustment for raising and lowering the center foot to accommodate different material thicknesses.

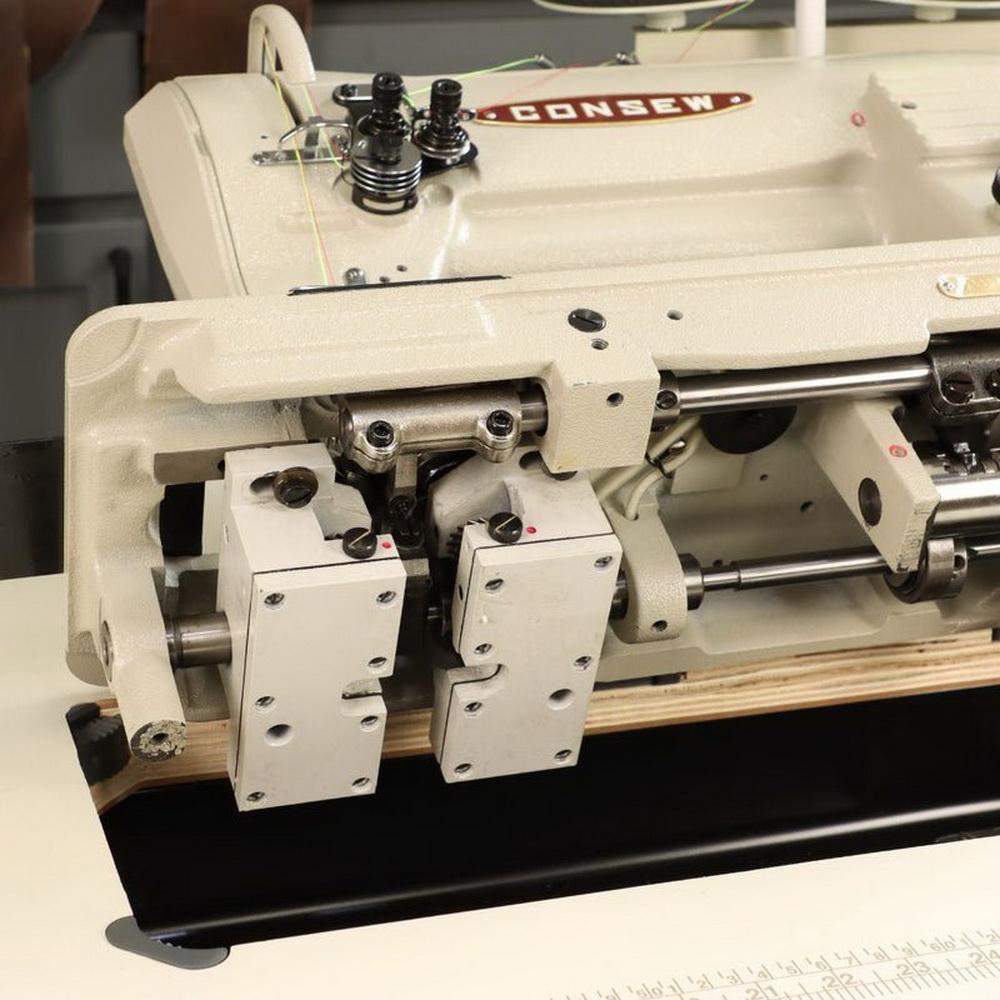

• Safety clutch protects hooks from damage.

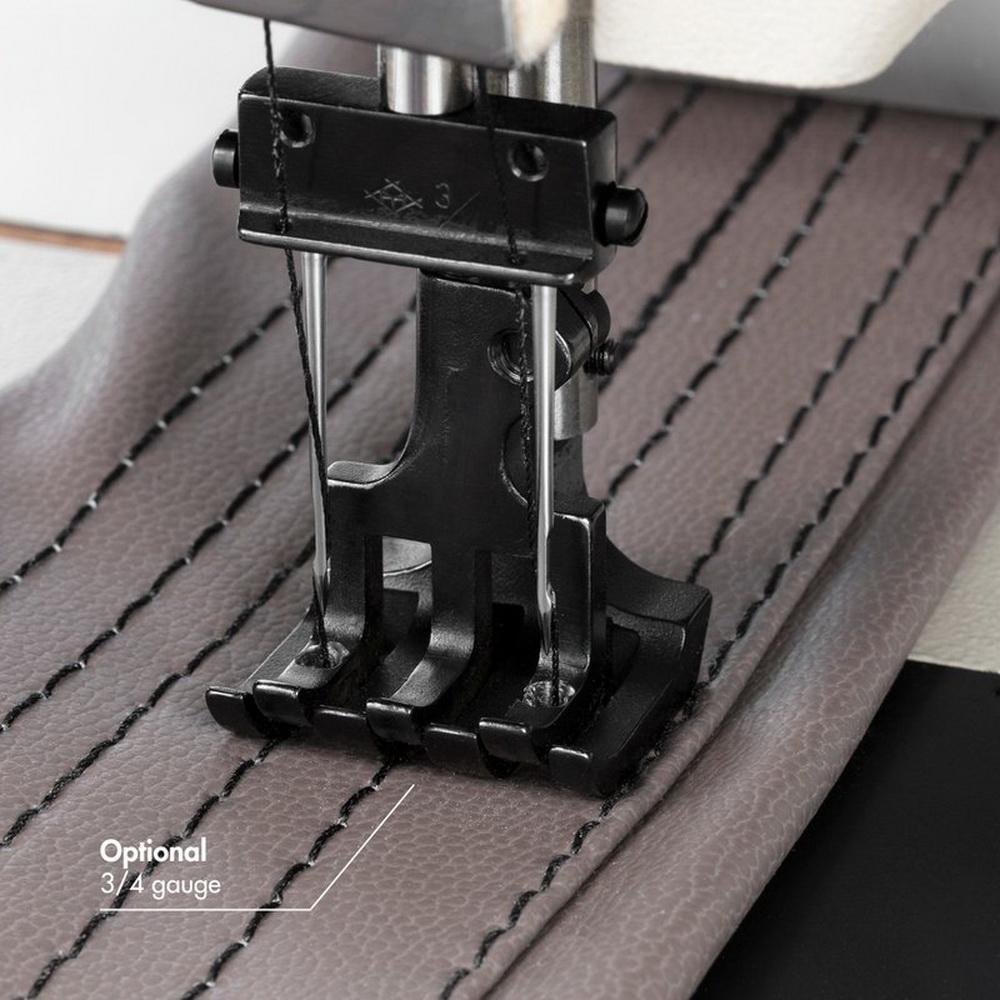

• Various needle gauges available.

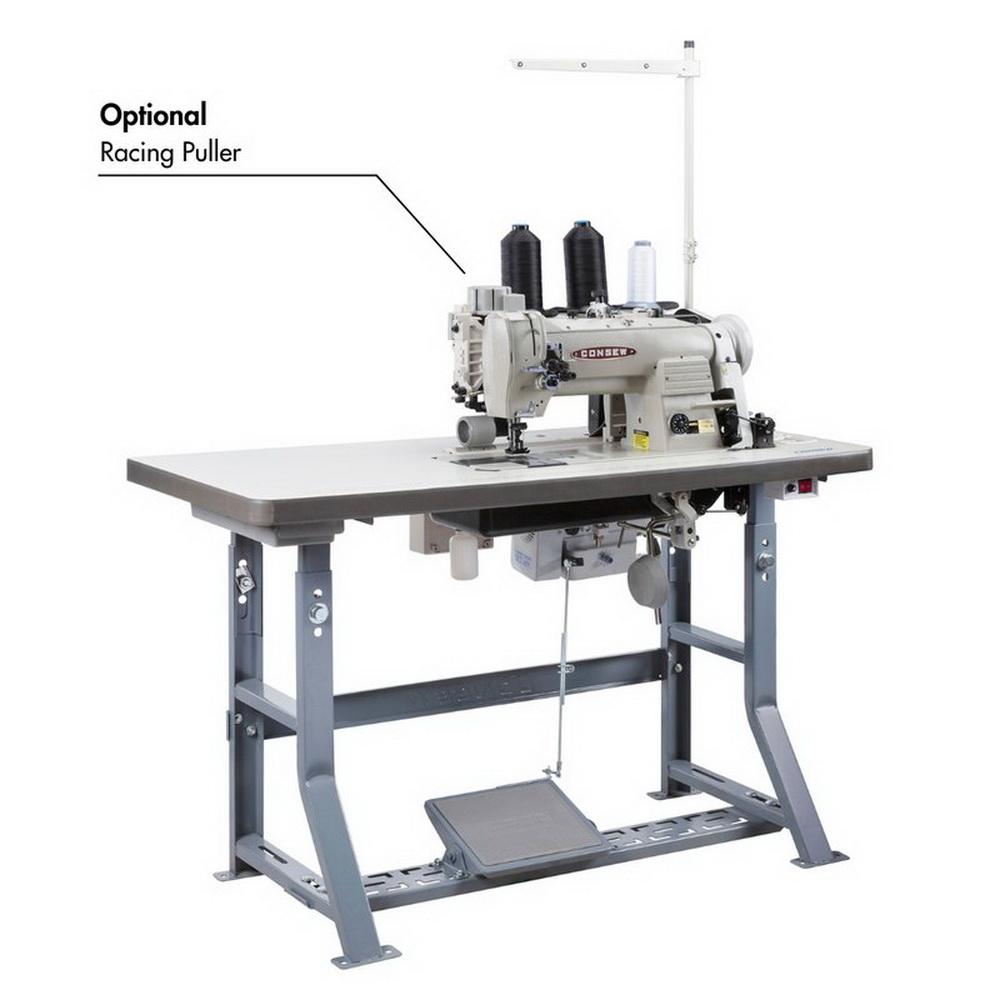

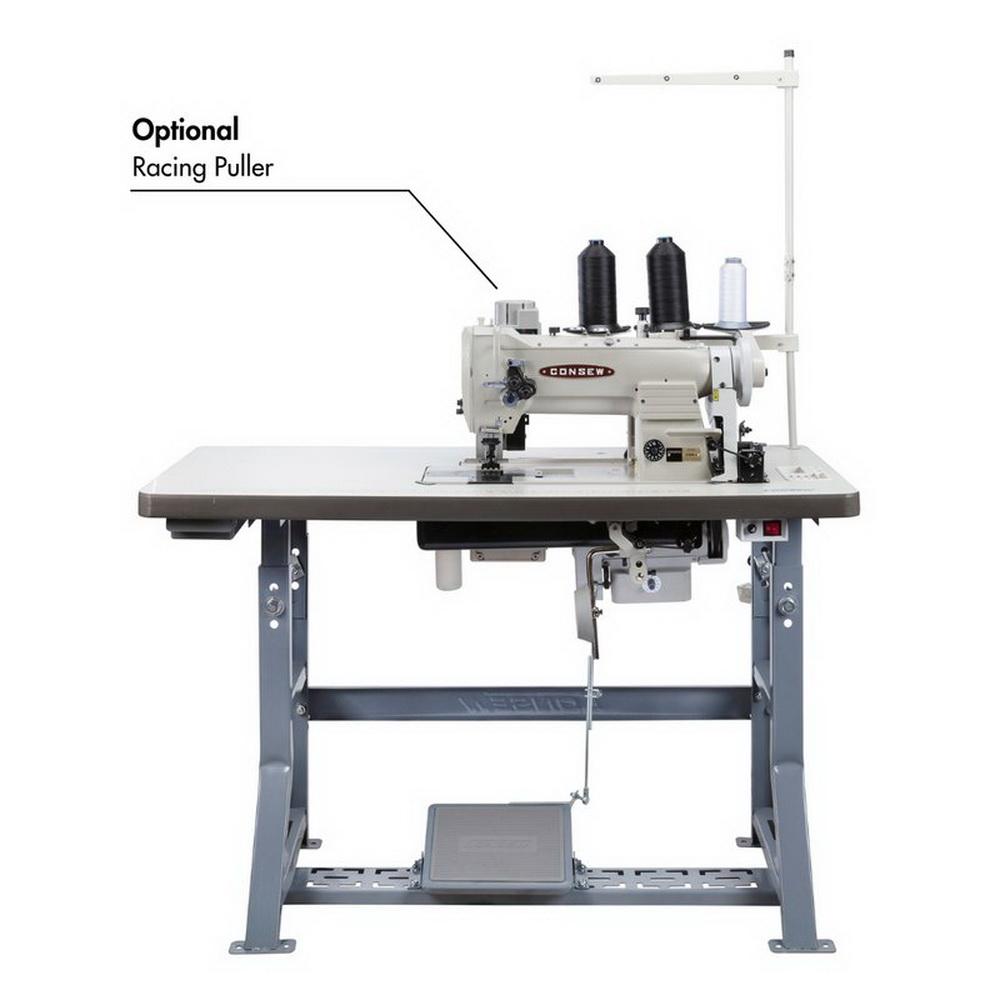

• Synchronized puller available (add suffix -P).
• Large hooks, bobbins, and reverse feed with long stitch (2 1/2 s.p.i.).

Specifications

• Number of Needles: 2 (Double)
• Feeding Mechanism: Walking Foot
• Workspace: Standard Workspace
• Standard or Full Function: Standard Functions
• Speed, Max (S.P.M.): 3000
• Clearance Under Presser Foot: 9/16" (14mm)
• Stitch Length: 2 1/2" s.p.i. (10mm)
• Hook Size: Large
• Work Space: 10" (258mm)
• Needle: 135 x 17
• Bobbin: Metal 15041, Pre-wound S or U
• Bed Size: 7" x 20 3/8" (177mm x 518mm)
• Stitch Type: 301
• Weight: 183 lbs
• Needle Bar Stroke: 1 5/16" (33mm)
• Available Needle Spacings: 1/8" (3.2mm) - 1 1/2" (38.1mm)
• Standard Needle Spacing: 1/4" (6.4mm)
• Hook: 15502
