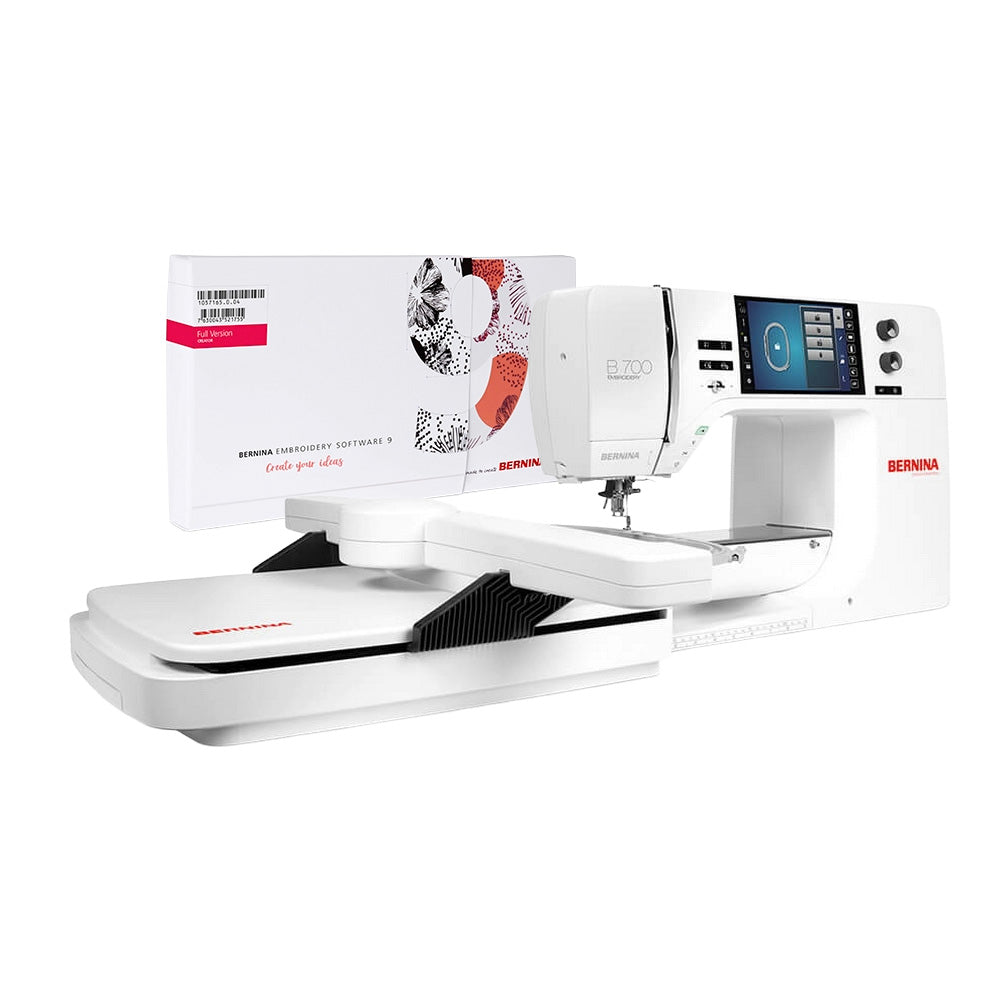

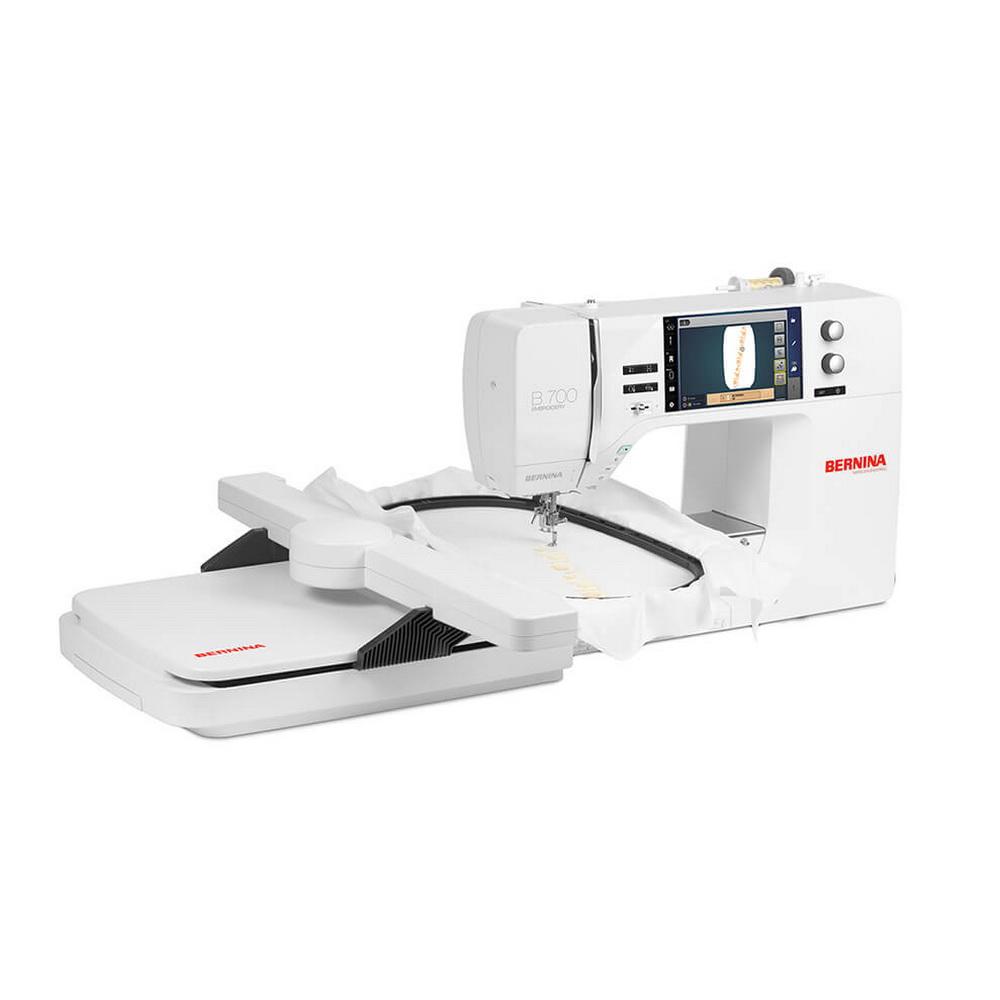

Bernina 700E Embroidery Machine with FREE V9 Creator Software

Features and options for embroidery lovers

• Choose from 320 embroidery designs, 18 embroidery fonts and 1 large monogram set - all built-in
• Design editing mode with positioning, mirroring, rotating, combining and resizing of motifs
• Create curved lettering effects
• Alter stitch density
• Combine alphabets with embroidery
• Create beautiful endless embroidery designs
• Resequence complex combinations according to color
• Choose alternative color options before stitching out
• Save your created designs on the machine or USB stick
• Import additional designs to the machine
• Precise positioning of the designs with the Check function
• Help on demand: the Embroidery Consultant and built-in tutorials offer direct on-screen support and answers to your questions whenever you need them
• Use Thread-up Command to lower and raise the needle bringing the bobbin thread to the top of the fabric at the start of stitching leaving the underneath side of an embroidery project beautiful and clean
• Move hoop to back for easy bobbin threading
• Move hoop to center for threading of upper thread
• Move to center of embroidery pattern

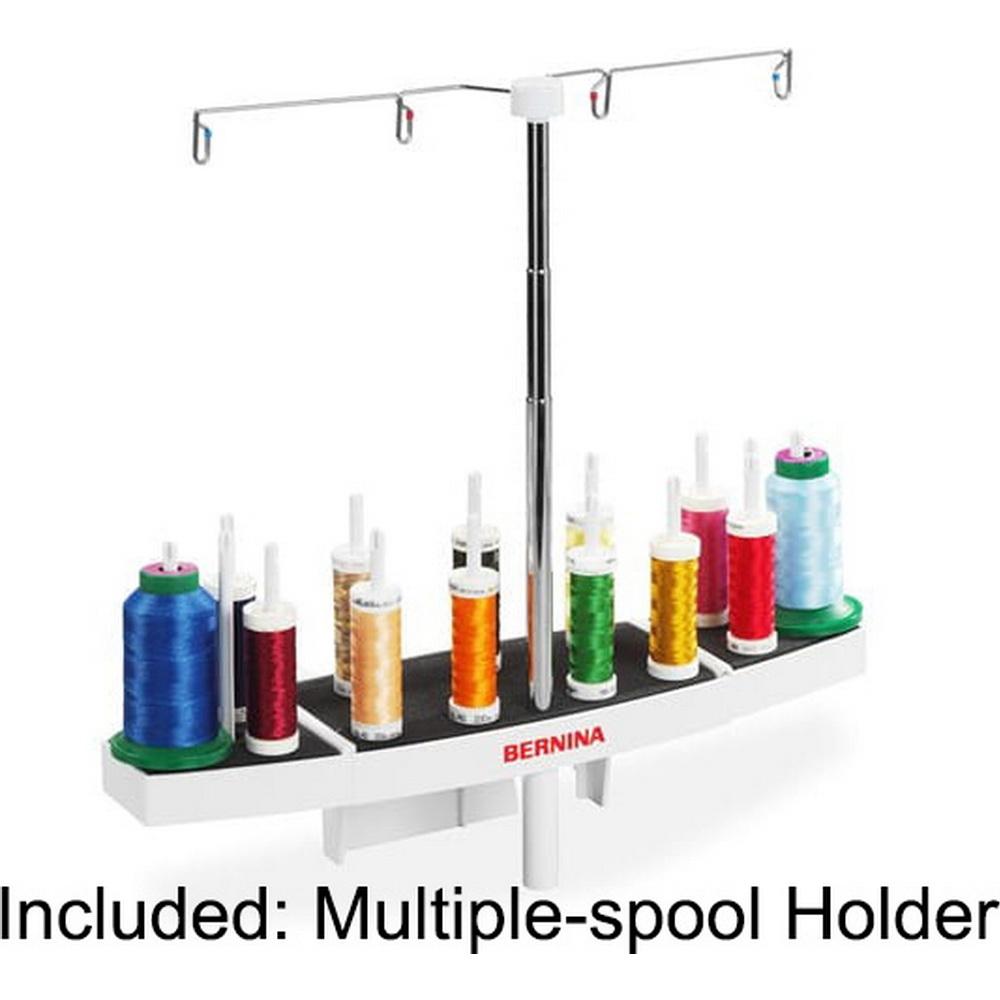

• Multiple spool holder for up to 15 threads included

Downloads

Bernina 700 Simulator

Enjoy all the great features of the Bernina 700 already now. Download the simulator!

Bernina 700 Machine Manual

Bernina 700 Brochure

Centrally Located Color Touch Screen

7” / 18 cm

Upper Thread Sensor

Indicates when the upper thread breaks or runs out.

Embroidery Area

15.7" x 8.3"

Freearm Embroidery

Easy freearm embroidery with all embroidery hoops without additional tools. For embroidering tubular items such as pant legs, t-shirts, onesies, etc.

Built-in Embroidery Designs

320

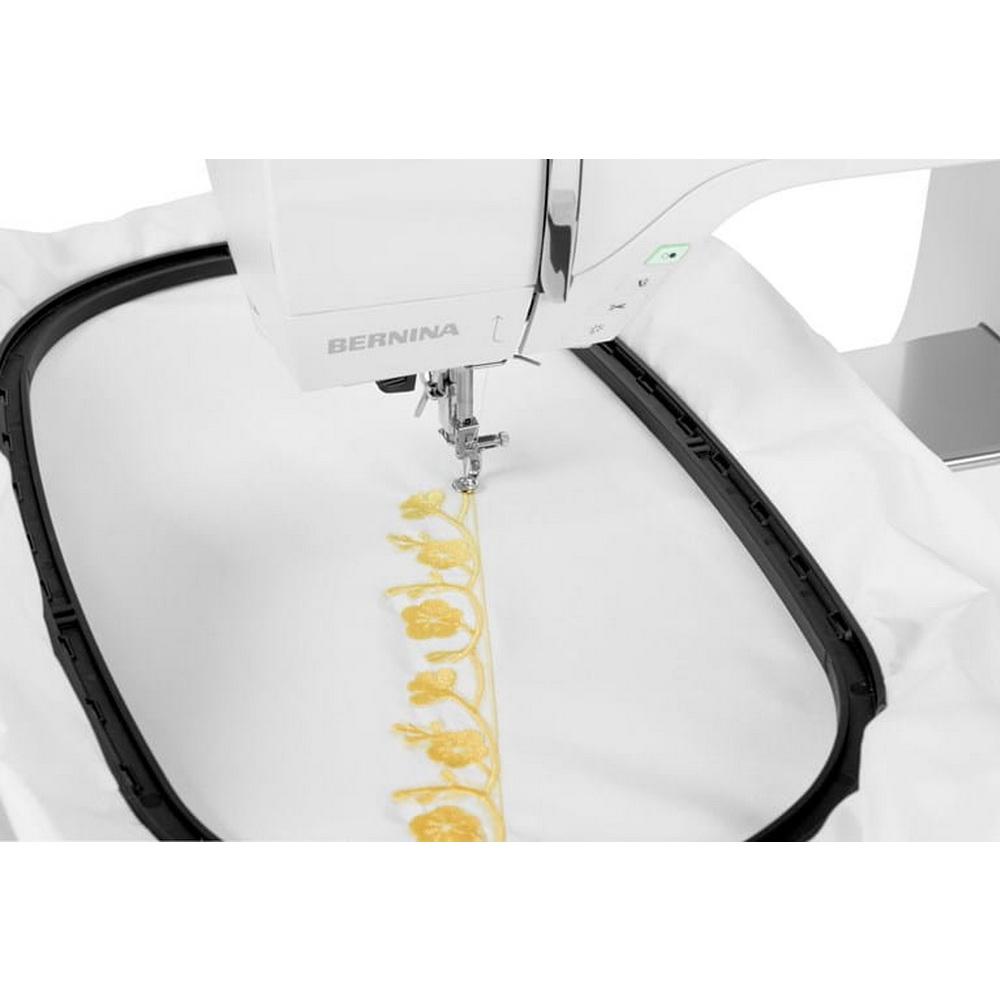

Endless Embroidery

Perfect for embroidered borders that are longer than the hoop. Stitched reference marks and on-screen animations ensure precise re-alignment during rehooping.

Color Wheel

Quickly change the colorway of your design on-screen to get an impression with other color design. New colors are assigned to the current thread library.

2-Point Placement

For easy positioning and alignment to place embroidery designs accurately. Rotate and align designs when the project is crooked. Possibility of grid point or free point positioning.

Group/Ungroup

Objects can be easily grouped and edited at the same time. Depending on the design, it can be split using the ungroup function in order to edit or delete individual parts.

Undo/Redo

Undo and redo steps when on-screen editing.

Maximum Embroidery Speed (Stitches per minute)

1000

Embroidery Area

15.7" x 8.3"

Freearm Embroidery

Easy freearm embroidery with all embroidery hoops without additional tools. For embroidering tubular items such as pant legs, t-shirts, onesies, etc.

Built-in Embroidery Designs

320

Embroidery Alphabets

18

On-screen Editing of Designs

Easily and quickly edit embroidery designs directly on the touch screen.

Duplicate/Add Designs

Increase the number of designs quickly with duplicate. Use + to combine designs and lettering onscreen.

Change Design Size Proportionally

Enlarge or reduce designs proportionally on-screen. Increasing/decreasing in a range of +/- 20% provides the best results. Other ranges should be tested first.

Change Design Size Non-Proportionally

Change the height and width independently. Increasing/decreasing in a range of +/- 20% provides the best results. Other ranges should be tested first.

Move, Rotate, and Mirror

Move designs through drag and drop or the multi-function knobs; Rotate in 1 degree increments and mirror image embroidery designs for optimal placement on projects.

Endless Embroidery

Perfect for embroidered borders that are longer than the hoop. Stitched reference marks and on-screen animations ensure precise re-alignment during rehooping.

WordArt

Create vertical, horizontal and curved baselines. Adjust letter spacing to create the best look.

Drag & Drop

Simple drag and drop allows for easy positioning of embroidery designs.

Virtual Positioning

Place every design to an exact stitch and see the visualization in the hoop on the screen.

Absolute Check Design Positioning

Design placement tool – stitch by stitch. Check individual stitch locations for precise placement on the project from the Edit screen. the needle moves to that location in the hoop.

2-Point Placement

For easy positioning and alignment to place embroidery designs accurately. Rotate and align designs when the project is crooked. Possibility of grid point or free point positioning.

Check Design Size

Tool for placing designs. Check the embroidery design size. The center of the pattern can also be displayed.

Group/Ungroup

Objects can be easily grouped and edited at the same time. Depending on the design, it can be split using the ungroup function in order to edit or delete individual parts.

Rearrange designs

Change the stitching order of designs by changing the order of the layers.

Undo/Redo

Undo and redo steps when on-screen editing.

Adjust Stitch Density

Change Stitch Density to complement varied fabric.

Change Stitch Type

Change a satin stitch to a fill stitch to minimize long satin stitches that may catch.

Change Thread Brand

Quickly change thread color and/or brand on-screen to suit your project at hand.

Basting

Stitch your choice of basting stitches before embroidering. Choose to baste around your design or the inner hoop.

Color Resequence

Several identical colors of an embroidery design are combined into one color, thus reducing the number of color changes to a minimum. Saves time.

Stitch Design as Single/Multi-Color

Stitch an entire design in one color without stopping or as a multi-color design.

Personal Memory for Saving Embroidery Designs

Own combinations, altered embroidery designs or external designs can be stored.

Programmable Jump Stitch Cutting

Set any length of jump stitches to be cut and eliminate manual cutting.

Smart Secure

Missing tie-on/off stitches are added automatically if none were programmed.

Invisible Secure

Enhanced tie-on/off stitch formation is completely invisible under design.

Centering the Embroidery Design

Off-center design positioning can be saved to the machine and design position in hoop is imported as set in the BERNINA Embroidery Software.

Thread Away Mode

An automatic, quick movement of the hoop ensures thread tails are transferred to the wrong side of the project. Set on/ off as desired depending on design.

Switch Unit of Measurement

Choose to view embroidery design dimensions and hoop sizes in inches or millimeters.

Creative Consultant Embroidery

Get reliable support for various applications and fabrics from the integrated Embroidery Consultant. Makes suggestions regarding needles, presser foot, stabilizer etc.

Multi-format Design compatible

No need to convert. Reads EXP, DST, PES, PEC, JEF, PCS, SEW, XXX.

Embroidery Design Import/Export via USB Interface

Enjoy rapid and direct connectivity for design transfer and updates.

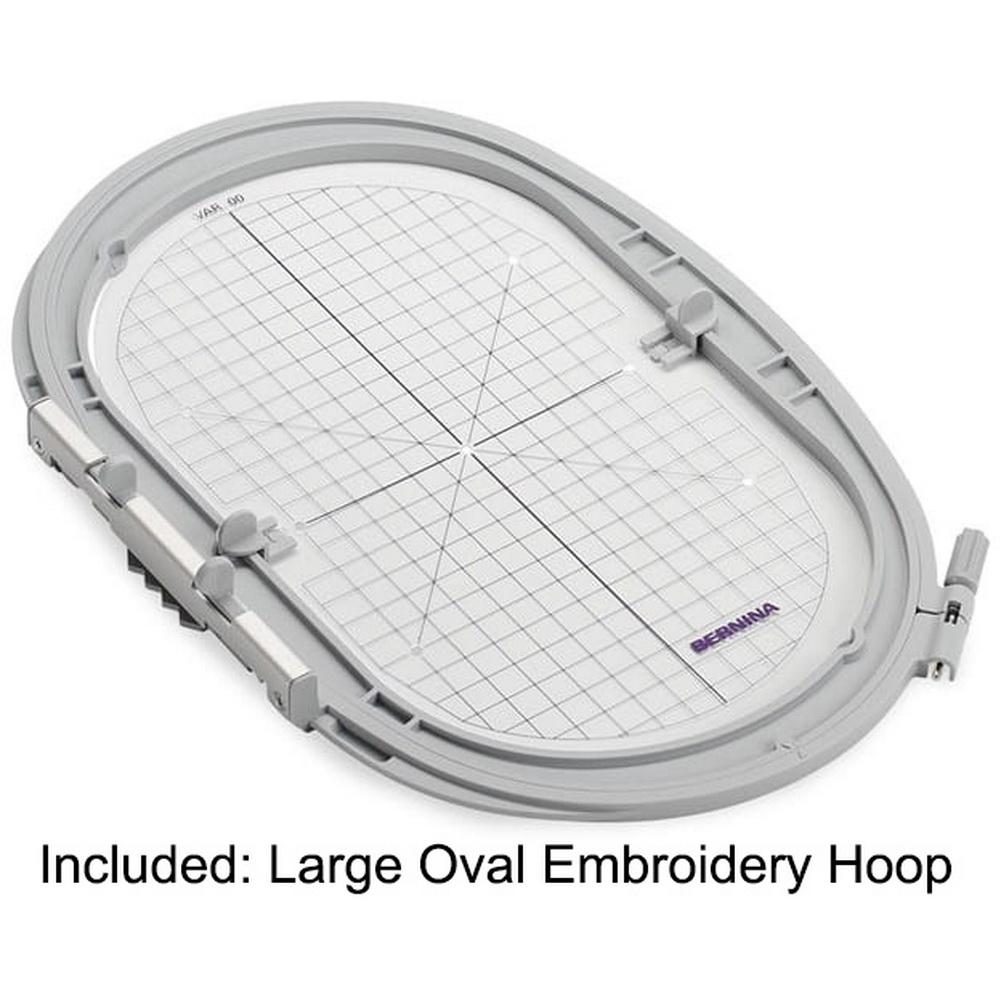

Automatic Hoop Recognition

The attached hoop is automatically recognized by the embroidery module.

View Stitch-out Time, Thread Colors, Size, Stitches

View design details at a glance.

Embroidery Sequence Control

This function helps to reposition the embroidery position after a thread breakage. You can move forward or backward stitch-by-stitch or in steps of 50.

Position Recall

The last embroidered stitch is always saved so that embroidery can be resumed at exactly the same point in the project in case of a power failure.

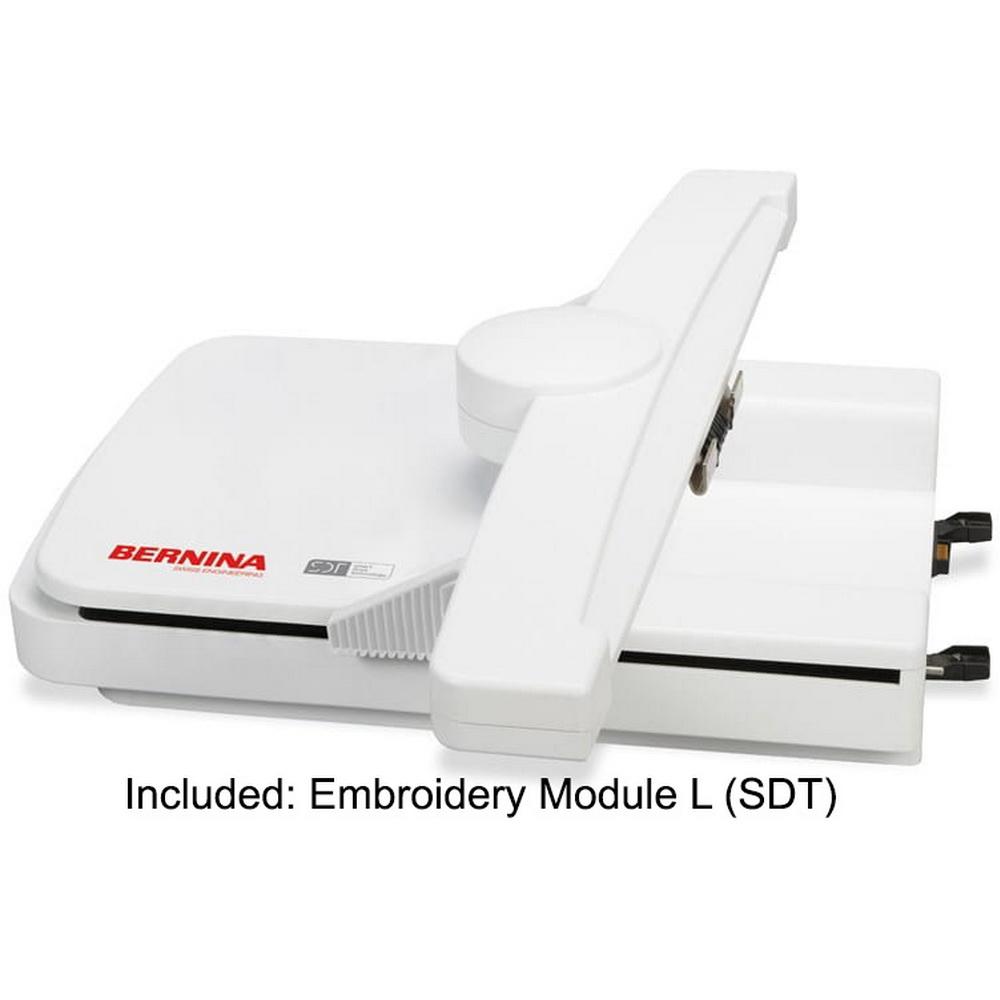

Embroidery Module

Embroidery Module L (SDT)

Sewing space to the right of the needle

10”

Workspace Height

5"

Weight of the Machine

30.9 lb

Measurements (W x H x D)

20.5″ / 8.4″ / 14.1″

Centrally Located Color Touch Screen

7” / 18 cm

Total Memory

256 MB

Multi-function Knobs

Easily accessible knobs for making stitch adjustments before and during sewing in .05 increments for smooth stitch transitions. Used in embroidery for composing and design alterations.

Spool Holders

2

LED Sewing Light

30

Semi-automatic Needle Threader

Easy threading of the needle.

Manual Thread Cutters

3

BERNINA Adaptive Thread Tension

Once the tension is set according to the fabric and thread used, the thread tension is constantly monitored and adjusted automatically, if needed, resulting in the finest stitching.

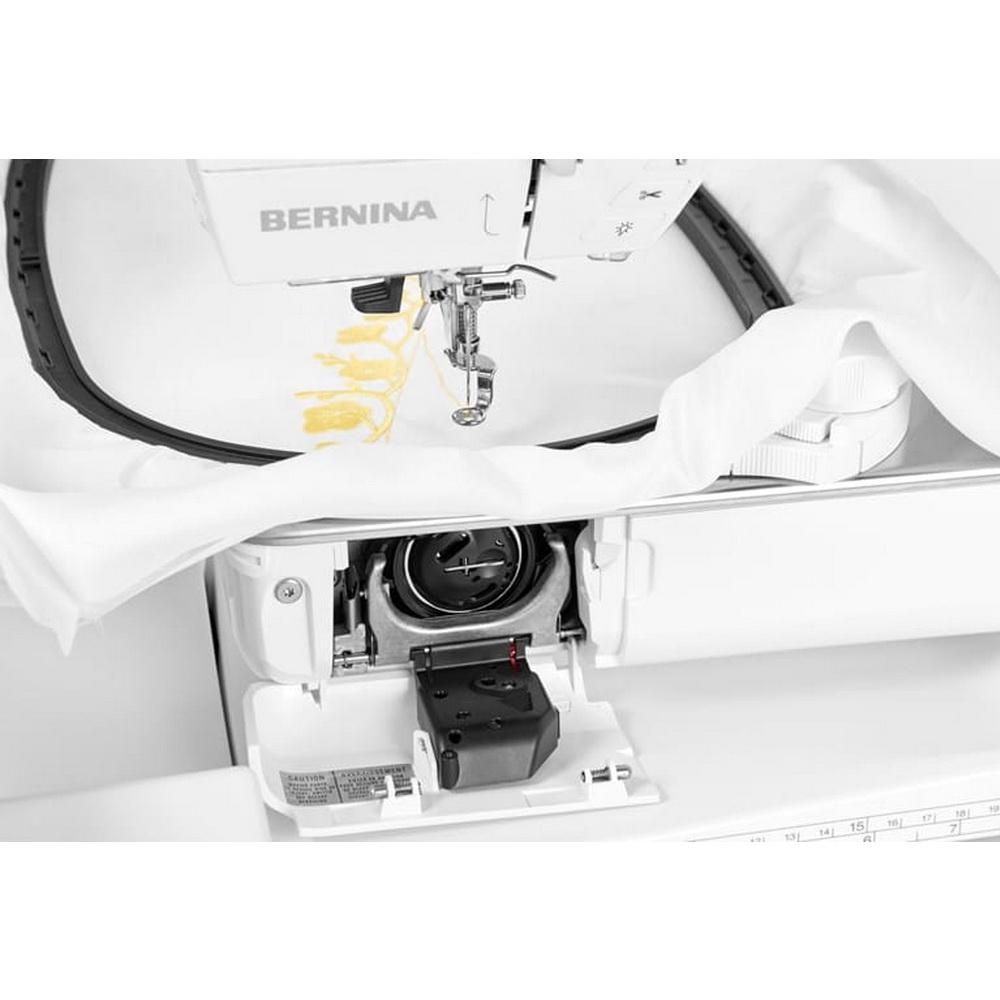

Hook system

The innovative BERNINA Hook maintains legendary BERNINA stitch quality at 5.5 mm and 9 mm stitch widths. An easy bobbin case insertion and large capacity bobbin make this ideal.

Jumbo Bobbin with 70 % more Capacity

More thread on the bobbin ensures significantly fewer interruptions in sewing, which is particularly helpful for large quilts or when embroidering.

Bobbin Winding while Sewing/Embroidering

Fast winding of the bobbin, even while sewing.

Powerful DC Motor

Full power at all speeds provides for consistent stitching on multiple layers and heavy fabrics.

Hammer Mode

Built-in mechanism that drives the needle to stitch through more than 30 layers of fabric. The needle pulsates through the fabric to form the stitch.

BERNINA Foot Control

Consistent control and a back-kick function to raise and lower the needle. One single push onto the front sews one stitch, one heel push makes the needle move up or down.

Needle Stop Up/Down

The needle can be programmed to stop in the raised (up) or lowered (down) position.

Automatic Presser Foot Lifter

Convenient automatic presser foot lowering and raising. Press the foot control to lower the presser foot, and sewing or embroidering can be started. At the end of the sewing or embroidery process, the foot is raised automatically.

Automatic Thread Cutter

The upper and lower threads are cut automatically or at the touch of a button. The top thread is carried to the back side of the fabric. Program 2 types of tie-offs.

Needle Reminder

To save the settings for the needle type used.

Lower Thread Sensor

Warns when the bobbin thread runs low.

Upper Thread Sensor

Indicates when the upper thread breaks or runs out.

On-screen Help

Use the '?' to identify functions and stitches. Built-in animations lead you through processes and provide reminders.

eco Mode

The eco mode saves energy and provides a child safety lock.

Slide speed control

Regulate the speed with the Slide Speed Control.
