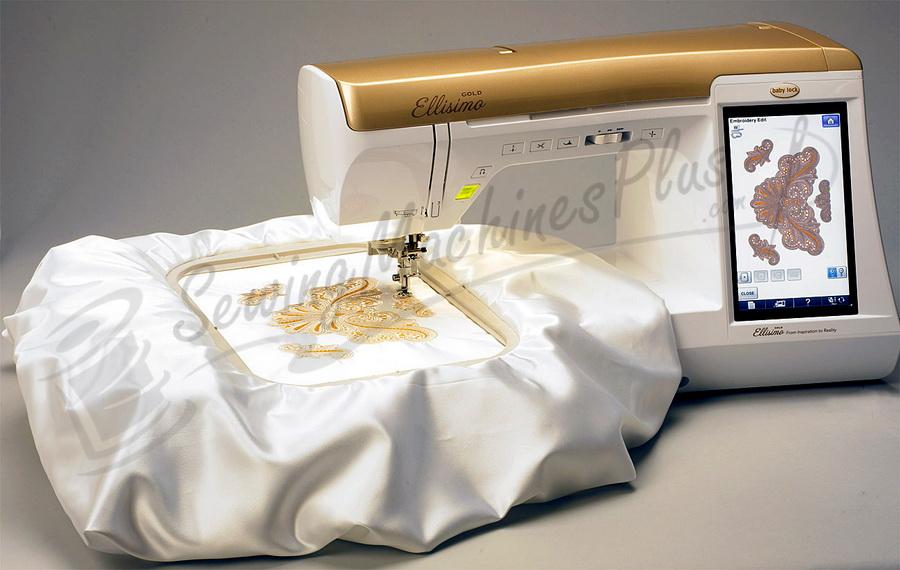

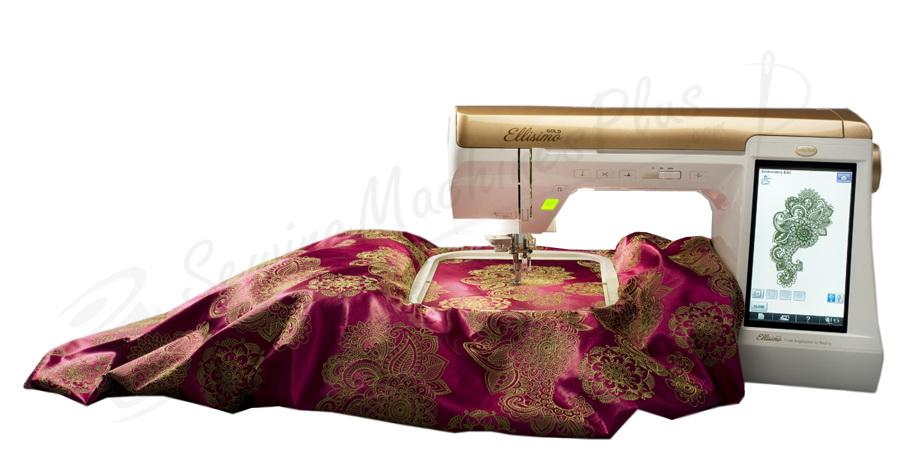

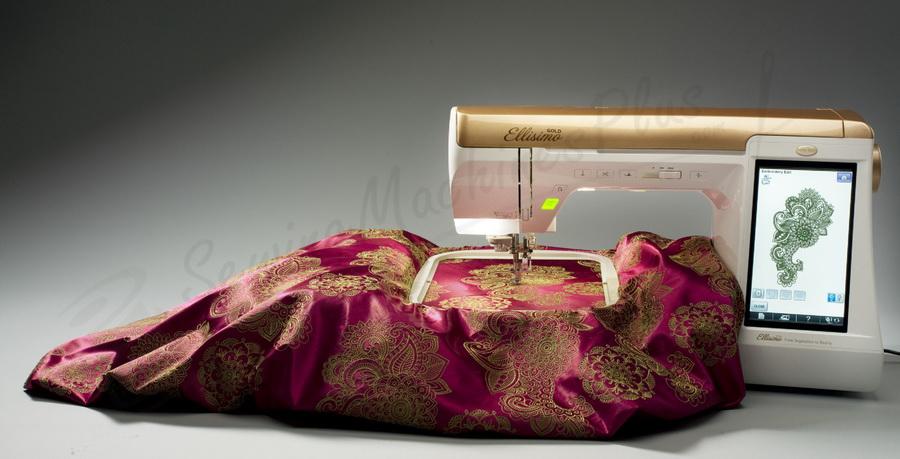

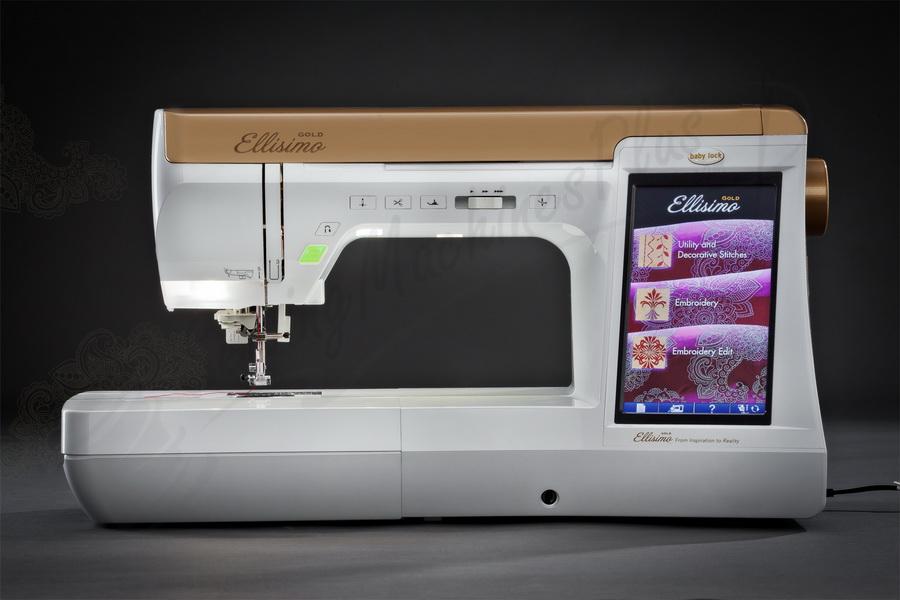

Baby Lock Ellisimo Gold Sewing, Quilting and Embroidery Machine (BLSOG)

NeverMiss Automatic Needle Threader

The NeverMiss Automatic Needle Threader does exactly what it promises. It's never been this fast or easy - the Ellisimo Gold threads your needle with little more than the push of a button.

TruView ASV LCD Color Touch Screen in HD

• Shows over 16 million colors and 480 x 800 pixels
• Measures 8 ½" diagonally
• 160 degrees for optimum viewing

Embroidery Editing and Resizing

Sometimes it's the tiniest details that really pull a project together, and other times you need a super-sized image for a large task. With the Ellisimio Gold, you can reduce your images down to 60% or increase them up to 200%.

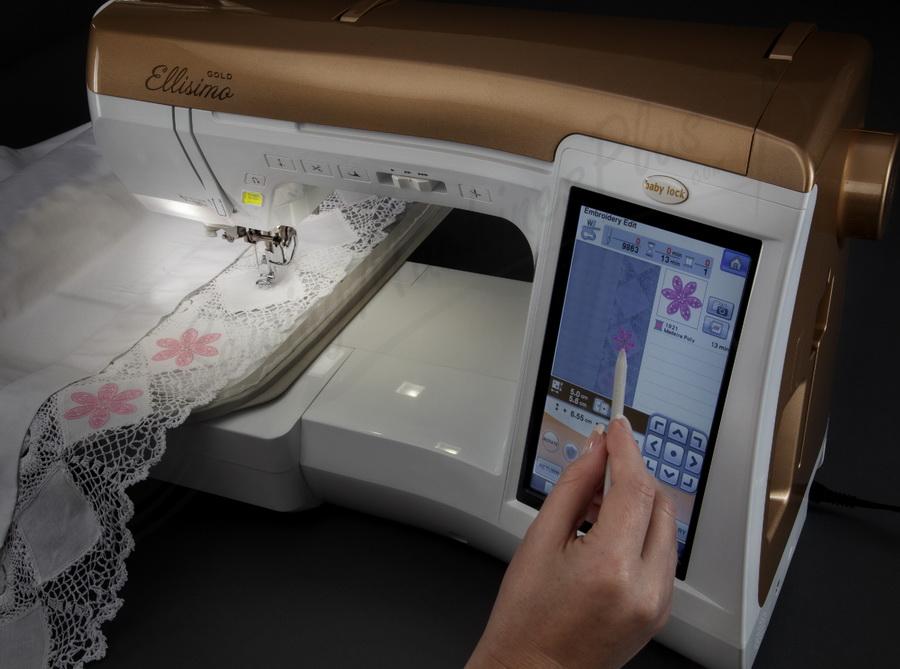

Exclusive NeedleCam For Scanning and Flawless Positioning

NeedleCam Digital Camera for perfect embroidery and sewing positioning

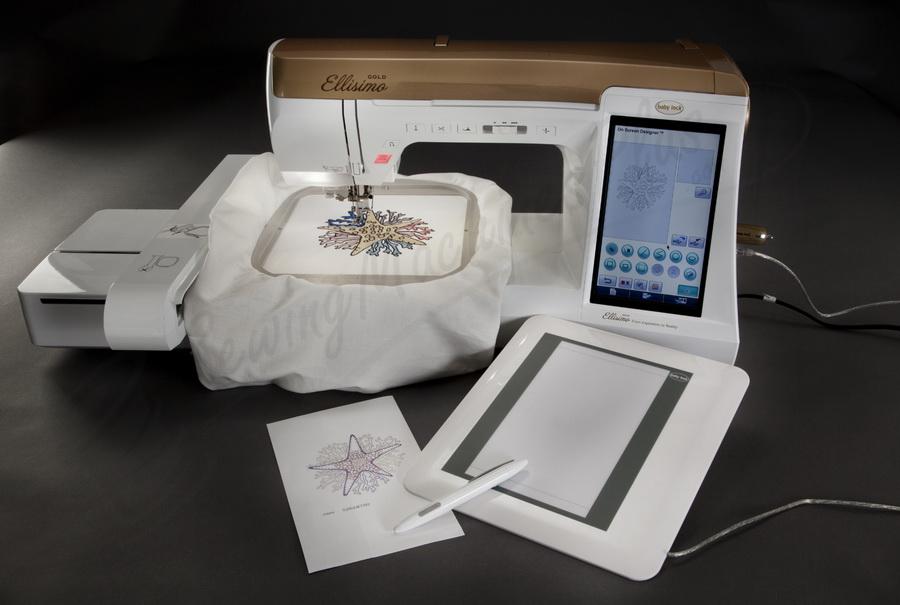

OnScreen Designer with SketchPad Digital Tablet

With OnScreen Designer, you can take personalization to a whole new level. Now you can produce your own embroidery designs with the SketchPad Digital Tablet. The Ellisimo Gold instantly digitizes hand-drawn designs with this revolutionary feature. Drawn and traced designs can be filled or left as an outline; either way, embroidering a completely original design has never been easier.

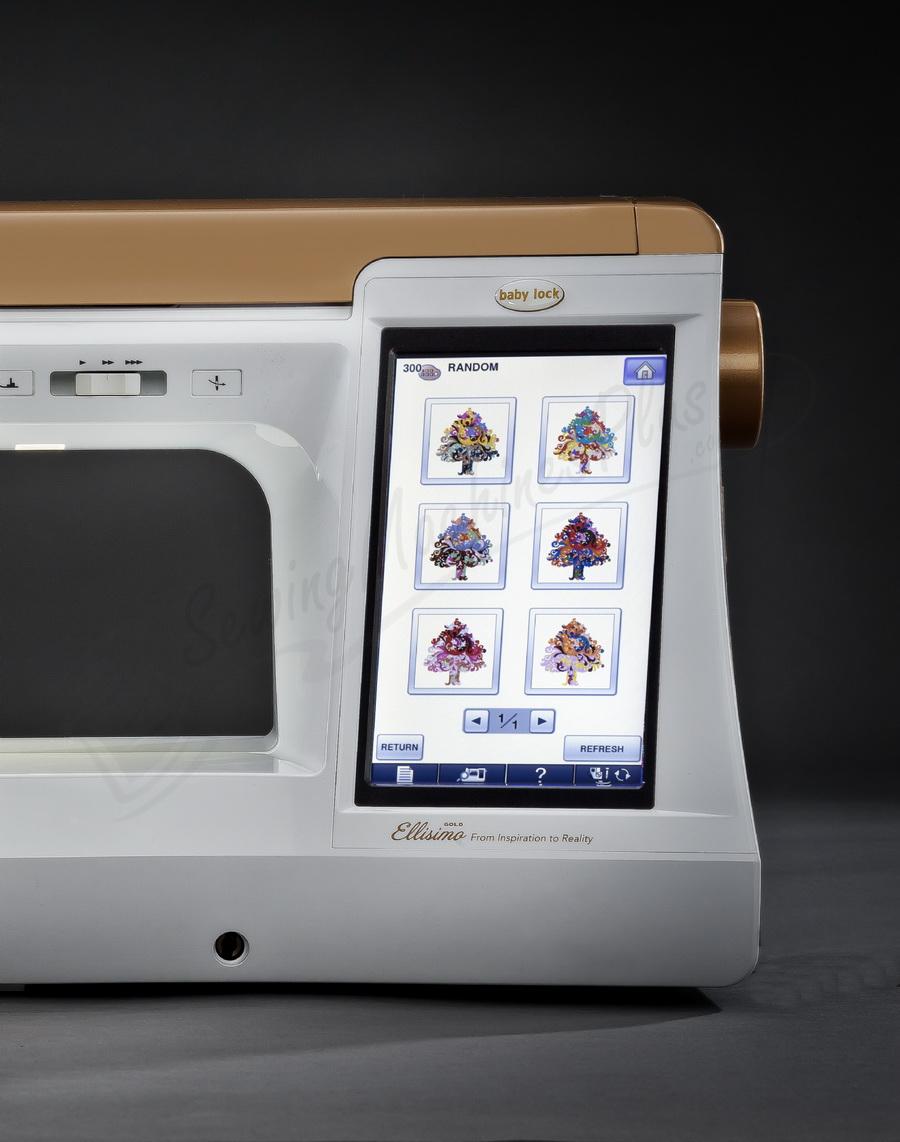

Color Visualizer

The unique Color Visualizer feature helps to enhance your creativity by displaying your design in an endless array of color combinations. Choose from four categories: Random, Vivid, Gradient and Soft. Then watch as your designs transform on the vivid ASV LCD screen. Each color combination is just as elegant as the last, and they'll all have you thinking, "Why didn't I think of that?"

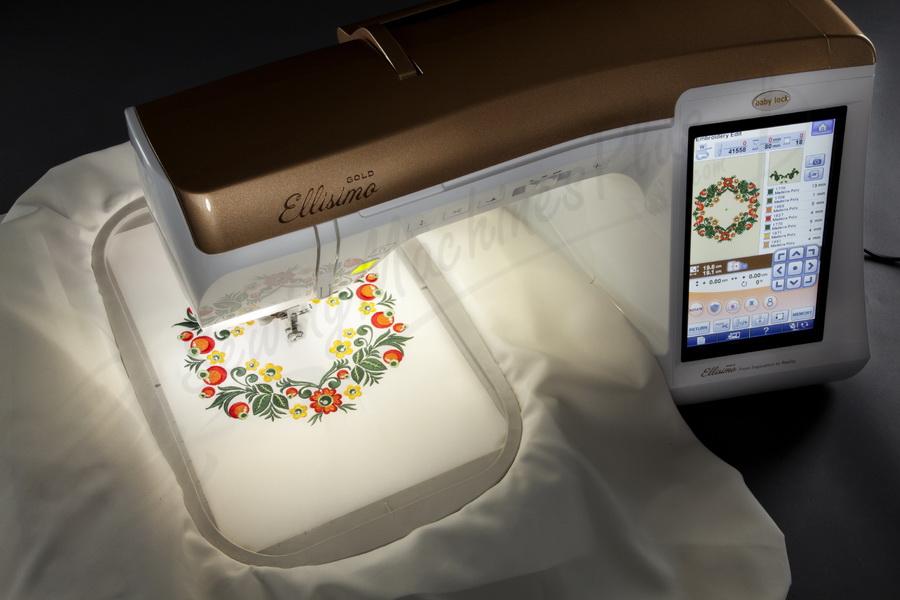

Stadium Lighting

Shine a spotlight on your projects with Stadium lighting. This system uses 8 high-color LED lights to illuminate the needle and work area for brighter true color LED lighting. By surrounding your needle with up to 10 inches of light, you can see every stitch clearly without straining your eyes.

557 Built-In Embroidery Designs

With 557 built-in embroidery designs, the Ellisimo Gold is constructed to help your imagination reach new heights. The Ellisimo Gold features hundreds of exclusive designs including 39 from Nancy Zieman herself! Now you can truly sew like Nancy.

682 Built-in-Stitches

The Ellisimo Gold includes a stitch for every type of project, no matter where your inspiration leads. Plus, if you want more you can customize your stitches and save them for future use. Changes made to your stitches are instantly processed and displayed on the LCD screen, so you can check and edit, it only takes a second to change it again. Find and create stitches for every occasion.

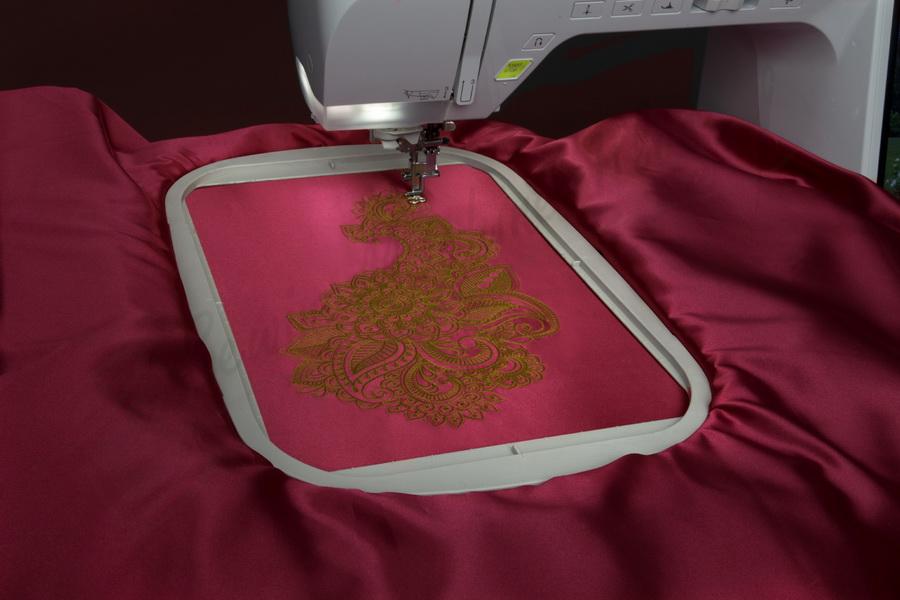

Hoops of all sizes for nearly every project

• Extra large 8" x 12" (200mm x 300mm)
• Square 8" x 8" (200mm x 200mm)
• Medium 4" x 4" (100mm x 100mm)
• Small 1" x 2 ½" (20mm x 60mm)

Bobbin Work Capabilities

Add a bit of personality, texture, and style to your projects through the use of the Ellisimo Gold's bobbin work capabilities.

Baby Lock IQ Technology

Baby Lock IQ Technology is what makes Baby Lock machines so smart and efficient. IQ Technology works with the "brain" of your machine to help achieve exactly what you desire.

Embroidery Capabilities

• Built-in embroidery design library
• 557 Embroidery designs built-in
• 302 Baby Lock exclusives including 39 Nancy Zieman designs
• 14 bobbin work embroidery designs
• 120 Frame combinations
• 19 font styles including
• Exclusive script alphabet characters (75 total)
• Large Floral Alphabet
• Greek Alphabet
• Embroiders up to 8" x 12" (200mm x 300mm) embroidery field
• Memory capacity 2MB
• Reads embroidery designs with a stitch capacity of up to 500,000 stitches per design
• TruView ASV Touch Screen shows:
• Design placement using drag and drop capabilities
• Enhanced realistic preview
• Design previews can be enlarged 200%
• Needle positioning grid
• Needle position image can be enlarged 200%
• Thumbnail images viewed at 150% the normal size
• Estimated embroidery time display and stitch count
• Needle advancement (1, 10, or 100 stitch increments)
• Measurements displayed in inches or metrics
• Color separation
• Thread color indicator
• On screen hoop size indicator
• Low bobbin thread indicator
• 300 color names
• Screen saver customization
• Embroidery speed up to 1,000 spm
• 8-Point trial check points
• Starting point key for instant alignment of characters or patterns
• Alternate bobbin case for pre-wound bobbins
• Customize embroidery pattern and thumbnail background colors (66 options)
• Resume feature
• On screen grid
• Cuts jump stitches (with on/off capability)
• Embroider without removing the foot control

Embroidery Editing Capabilities

• Combine embroidery designs on screen
• Character/text array function
• Character spacing
• 1>1°, 10°, and 90° Pattern rotation
• Enhanced design enlargement (up 200%)and reduction (down 60%)
• Design duplication
• Automatic applique
• Automatic basting
• Mirror imaging
• Change color selections within designs
• Color sorting on border designs
• Monochrome option for embroidery designs
• Programmable custom thread color selection
• Print and stitch capabilities

Instructional and Help Resources

• Built-in Operational Guide with 11 built-in videos
• Built-in Sewing Application Guide
• Built-in Help Messages
• Embroidery Stitch Count System - .SCS
• Capability to save screen images

Advanced Sewing Features

• 682 Built-in stitches including
• 148 Utility including 15 one-step buttonhole styles and 1 four-step custom buttonhole
• 355 Decorative
• 79 Decorative satin
• 20 Satin
• 17 Cross
• 63 Combinable Utility stitches
• 3 Built-in alphabets
• 29 Quilting stitches offer 57 needle position options
• Stitch length 0.0mm - 5.0mm
• Basting stitch length of up to 30mm
• Maximum Utility stitch width 7mm
• Utility stitch editing capabilities
• 5 Memory settings for each Utility stitch
• Decorative stitch editing capabilities
• Edit and combine Character Decorative stitches
• 20 memory Pockets for Character/Decorative stitches equaling 800KB
• Satin stitch elongation
• Edge sewing capabilities using NeedleCam Digital Camera
• Sew Utility and Decorative stitches while embroidery arm is attached
• Automatic drop feed
• Mirror-image
• Lock key for Utility and Decorative stitches
• Lateral and diagonal feeding
• Variable needle positions
• Fully automatic built-in darning
• Twin needle settings

Additional Information

• Language conversion capabilities (12 languages)
• Warranty (25 years limited, 10 years parts, 5 years computer circuit, 5 years electrical, 1 year labor)
• Optional Gold Standard Comprehensive Care Program
• Optional embroidery hoops
• 6 ¼" x 10 ¼" (160mm x 260mm) hoop
• 5" x 7" (130mm x 180mm) hoop
• Continuous Border Hoop (100mm X 180mm)
• Optional 1GB Flash Drive (BL-1GBFD)
• Optional Thread Stand (holds 10 spools) (BLSO-TS)
• Optional 16" x 23 ¾" Extension Table and grip (BLSO-ET)
• Optional Embroidery Card Reader (BLECR)

Technology Features

• TruView ASV LCD Color Touch Screen
• Shows 16,770,000 colors
• Measures 8 ½" diagonally
• 160 degrees for optimum viewing
• NeedleCam Digital Camera for perfect embroidery and sewing positioning
• Center position scanning
• Precise Touch Positioning using NeedleCam
• OnScreen Designer
• Sketchpad tablet and electronic pen
• Color Visualizer for multiple thread options
• Stadium Lighting for brighter true color LED lighting on the needle and work area
• 3 USB drives; 2 (Type A) drives, 2.0 and 1.1 connects with a Mouse, Hub, Floppy drives, Flash drives and CD-Rom drives and 1 (Type B) USB direct connect to a PC
• Increased Processing Speed
• NeverMiss Automatic Threading System
• Advanced Pivoting Feature and Automatic Fabric Senor System
• Automatic thread cutter (with on/off capability)
• Quick-Set, Top-Loading bobbin with sensor
• Quick-Set Independent bobbin winding system with variable speed
• Automatic sensors
• Thread tension control makes tension adjustments for accurate stitches
• Upper and lower thread sensors on/off
• Upper and lower thread sensors to alert when threads run out
• On-screen hoop sensor to recommend size of hoop
• Access designs stored in folders when using USB type A
• Embroidery and sewing speed up to 1,000 spm

Convenient Sewing Features

• Larger sewing bed and workspace equaling 50 square inches
• Convenient One-Touch Buttons for
• Start/Stop
• Reverse sewing
• Needle up/down
• Thread cutter
• Automatic presser foot lift
• Automatic needle threading
• Sewing speed control
• Ergonomic 3-position, adjustable knee lift with extra high presser foot lift
• 10mm Automatic and 13mm Manual
• Programmable 3-step needle up/down
• Needle plate with scale in inches and centimeters
• Electronic foot control with separate power cord
• Free arm
• Two accessory storage compartments

Included Accessories

• Sketchpad USB tablet and cordless pen
• Adjustable knee lifter with 3-position handle
• Baby Lock digital USB mouse
• Touch pen (stylus)
• LCD cleaning cloth
• USB cable
• 18 Snap-on presser feet
• Buttonhole
• Embroidery
• Overcasting
• Monogramming
• Zipper
• Zig zag
• Blind stitch
• Button fitting
• Walking
• Free-motion quilting
• Free-motion open toe quilting
• Echo quilting
• Straight stitch
• Side cutter
• Blind stitch (with guide)
• Narrow hemmer
• Cording (with 3 cord guide)
• Vertical stitch alignment foot
• Accessory case for presser foot storage with interchangeable trays
• Soft canvas cover for machine with 3 storage pockets
• Carrying case for embroidery unit
• 2 Thread spool stand for larger cones
• Straight stitch needle plate
• Alternate bobbin case for use with pre-wound bobbins
• Bobbin center pin
• Embroidery bobbin thread
• Bobbins
• Cord guide bobbin cover
• Seam ripper
• Twin needle
• Embroidery hoops and grids included
• 8" x 12" (200mm x 300mm)
• 8" x 8" (200mm x 200mm)
• 4" x 4" (100mm x 100mm)
• 1" x 2 ½" (20mm x 60mm)
• Plus more
• Manuals & Guides

Downloadable Software

• Your Ellisimo Gold will stay current with future upgrades via USB connection

Additional Downloads

Brochure

Additional Accessories Guide

Instruction and Reference Guide

Quick Reference Guide

On Screen Designer

OnScreen Designer and SketchPad Practice Sheet

Updates

Update Version 3.10
