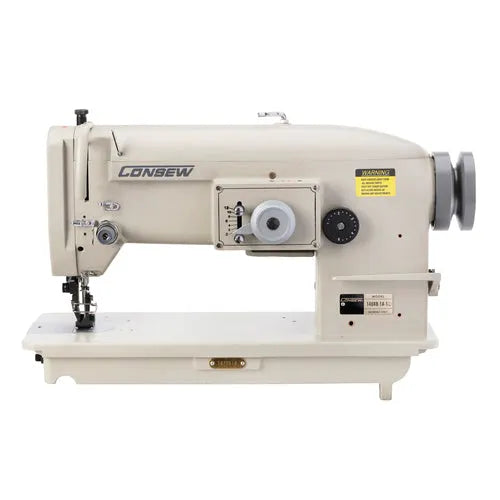

The Consew 146RB-1A-1WS is a heavy-duty, single-needle, walking-foot zig-zag lockstitch machine designed for sewing medium to heavy-weight materials that can be difficult to feed.
Equipped with a horizontal-axis transverse rotary hook, large bobbin, wide zig-zag stitching, and reverse feed, this industrial sewing machine is suitable for leather, canvas, tarpaulins, footwear, and wet-suit applications.

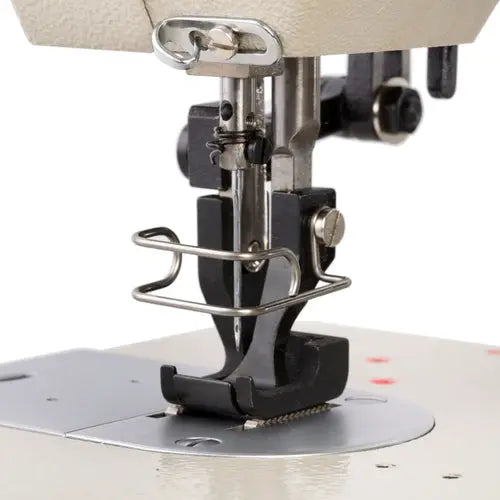

The walking-foot mechanism helps reduce material slippage during sewing, making the machine suitable for commercial applications involving thick or challenging fabrics.

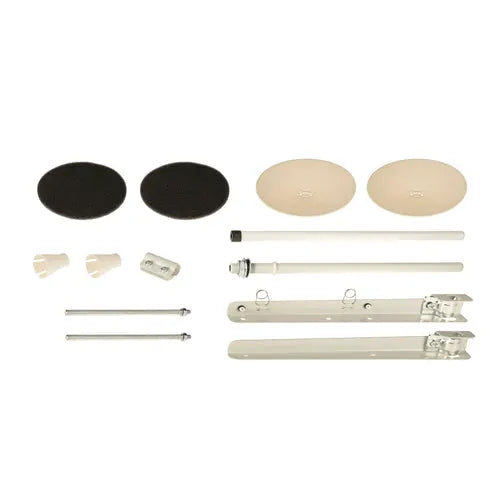

This package includes a fully assembled table and a servo motor.
The servo motor provides adjustable sewing speed for greater control when working with different materials and stitching requirements.
The Consew 146RB features a walking-foot feeding mechanism, horizontal-axis transverse rotary hook, large bobbin, wide zig-zag stitching, and reverse feed.
Its upper feeding mechanism helps minimize fabric slippage when sewing heavy or difficult-to-feed materials.
Maximum sewing speed depends on the thread, material, and sewing operation.
The Consew 146RB-1A-1WS is designed for sewing medium to heavy-weight materials, particularly fabrics that are difficult to feed consistently.

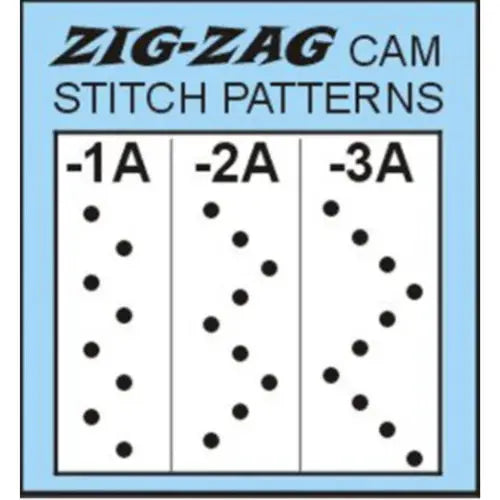

The Consew 146RB series offers different zig-zag stitching configurations.
This product is the Stitch Type 1A configuration. Conversion between stitch types is optional and requires additional parts that are not included.
| Specification | Details |
|---|---|
| Brand | Consew |
| Model | 146RB-1A-1WS |
| Machine Type | Walking Foot Zig-Zag Lockstitch Machine |
| Number of Needles | 1 (Single) |
| Feeding Mechanism | Walking Foot |
| Workspace | Standard Workspace |
| Machine Functions | Standard Functions |
| Stitch Type | 1A - Federal Stitch 304 |
| Maximum Speed | 2,500 SPM |
| Clearance Under Presser Foot | 25/64" (10 mm) |
| Maximum Stitch Length | 5 s.p.i. (5 mm) |
| Work Space | 10" (255 mm) |
| Needle System | 135 x 17 |
| Pre-Wound Bobbin | M |
| Hook | B79 |
| Bed Size | 7" x 18 7/8" (178 x 480 mm) |
| Needle Bar Stroke | 1 11/32" (34 mm) |
| Maximum Zig-Zag Width | 3/8" (9.5 mm) |
This package includes a servo motor that allows adjustable sewing speed for greater control during industrial sewing operations.
The optional Cool-Lite LED-10 Magnetic Light features 10 LED lights that provide bright white illumination over the sewing area.
Its magnetic mounting system allows attachment to suitable metal surfaces, making it a convenient lighting accessory for industrial sewing machines. The light is powered using the included AC plug.
Optional accessory. Not included unless selected as part of the purchase.
Download the Consew 146RB series operating instruction manual.
