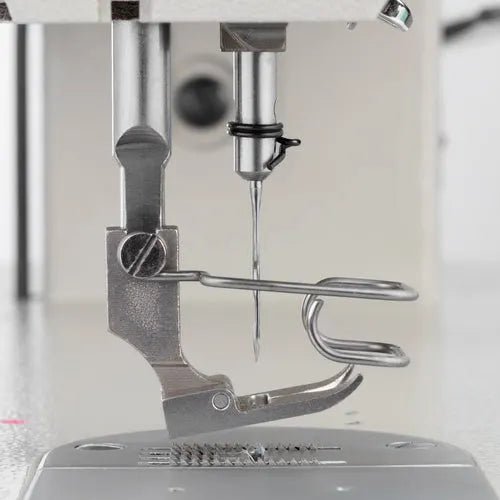

Consew 199R single-needle, drop-feed Stitch Type-2A w/ Table & Servo Motor (Table Comes Assembled)

Consew 199R Single-Needle, Drop-Feed Stitch Type-2A

With Table & Servo Motor Fully Assembled

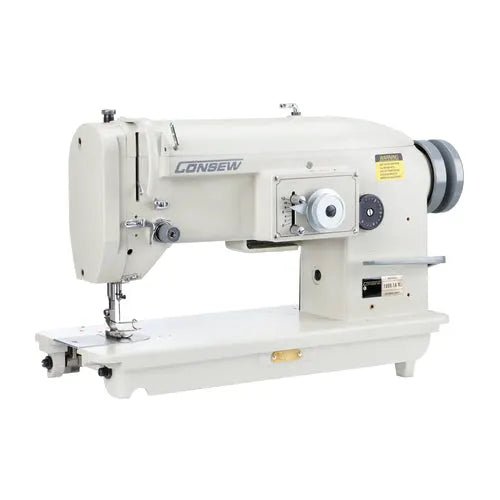

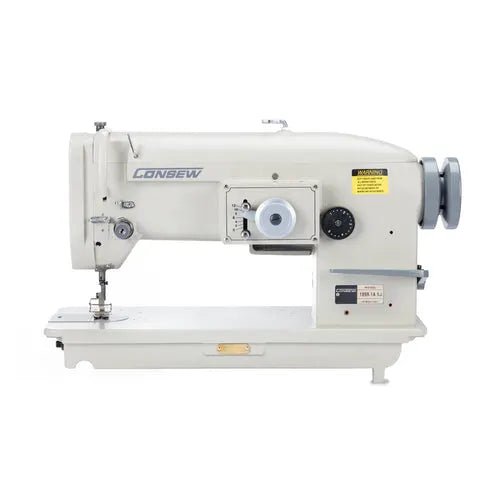

Consew 199R is a single-needle, drop-feed, zig-zag lockstitch machine with a horizontal axis transverse rotary hook, reverse feed, and combination zig-zag and straight stitch function.

With: Horizontal Axis Transverse Rotary Hook, Reverse Feed, Combination Zig-Zag and Straight Stitcher.

Stitch Type-2A features a three-step/two-stitch zig-zag pattern (Federal Stitch 308), suitable for elastic and stretch materials, ornamental stitching, and applications where reinforced stitching is necessary.

Table & Servo Motor

This Package includes a Fully Assembled Table and a Servo Motor.

Single Needle, Drop Feed, Zig-Zag, Lockstitch Machine

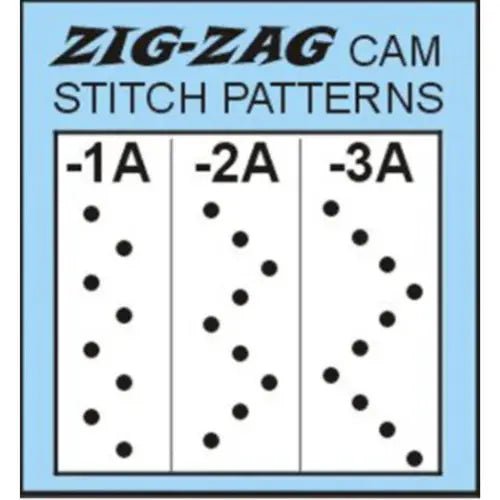

199R - Series Stitches

Stitch Type-1A

2-step / 1-stitch zig-zag

Stitch Type-2A

3-step / 2-stitch zig-zag (Currently Viewing This Product)

Stitch Type-3A

4-step / 3-stitch zig-zag

Optional: Interchangeable between 1A, 2A and 3A stitches. Additional parts required (not included).

Features

• Horizontal axis transverse rotary hook

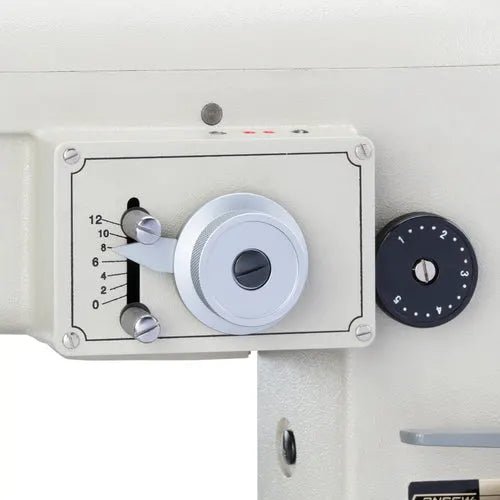

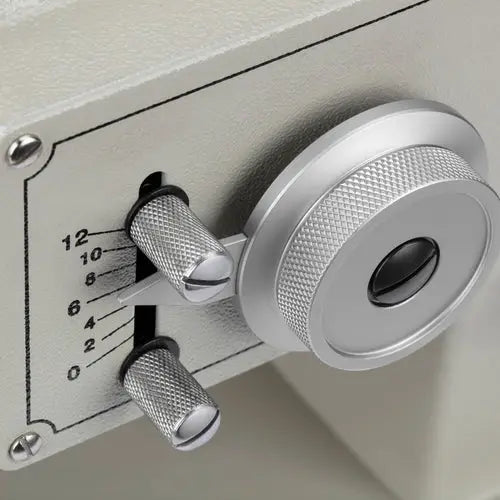

• Wide Zig-Zag - Locking Zig-Zag width regulator
• Straight stitcher when zig-zag is set to 0 mm
• Upper feed mechanism helps avoid slippage when sewing
• Reverse stitching
• Maximum width of zig-zag: 3/8" (9.5 mm)
• Long arm with 10" free space between needle and arm
• Three-step / two-stitch zig-zag pattern
• Special fittings available for rope-end and rope-loop stitching
• Optional interchangeability between 1A, 2A and 3A stitches; additional parts required (not included)

Applications

Stitch Type-2A (Currently Viewing)

• Three-step / two-stitch zig-zag (Federal Stitch 308).
• For sewing elastic and other stretch materials, as well as for ornamental stitching.
• For stitching such products as boat and truck covers, tents, awnings, sails, parachutes, tarpaulins, canvas bags and many items of military and naval equipment.
• Used on such materials as canvas, nylon, vinyl, leather, synthetics and similar materials.
• Especially desirable where reinforced stitch is necessary.
• Also available with special fittings for rope tacking operations.
• Used for rope tacking, making loops in rope and attaching small and medium size ropes to such products as truck covers, tents, sails, hammocks, parachutes, grain bags and many items of military and naval equipment.

Specifications

Maximum Speed for Other Stitch Types

• Stitch Type-1A: Zig-Zag 3000 S.P.M. / Straight Stitch 3200 S.P.M.
• Stitch Type-3A: Zig-Zag 3000 S.P.M. / Straight Stitch 3200 S.P.M.

Maximum operating speed depends on the width of the zig-zag stitch, thread, material and sewing operation.

Alternate Models

Stitch Type-1A

Used for a wide range of products and operations such as edge sewing, patch sewing, attaching and abutting work, applique work and binding on such materials as leather, vinyl, canvas, cloth, lace and similar materials.

Stitch Type-2A

(Currently Viewing)

• For sewing elastic and other stretch materials, as well as for ornamental stitching
• For stitching such products as boat and truck covers, tents, awnings, sails, parachutes, tarpaulins, canvas bags also many items of military and naval equipment
• Used on such materials as canvas, nylon, vinyl, leather, synthetics and similar materials
• Especially desirable where reinforced stitch is necessary
• Also available with special fittings for rope tacking operations
• Used for rope tacking, making loops in rope and attaching small and medium size ropes to such products as truck covers, tents, sails, hammocks, parachutes, grain bags and many items of military and naval equipment

Stitch Type-3A

Performs similar operations as Model 199R-2A-1 with the added advantage of making an additional stitch for extra reinforcement.

Motor Options

With so many options available for motors when we talk about replacing or buying a motor for our industrial sewing machine, there is one important point to keep always in mind "The Speed". Regardless of brand or price, motors come in two different configurations:

1. Variable Speed Servo Motor
2. Adjustable-Speed Servo Motor

Clutch motors operate at a fixed speed, typically between 1725 - 3450 rpm, depending on the type of machine. Servo Motors on the other hand are speed adjustable. The two major advantages of the Servo Motor are that you can control the speed of the motor and that the motor is completely silent when the pedal is not engaged.

Some other advantages of the Servo Motor include:

• They consume up to 90% less energy than clutch motors
• 1/3 lighter than clutch motors
• Reverse motor rotation with the flick of a switch
• Nothing to wear or adjust
• Adjusted speed remains the same no matter how hard the pedal is pressed

Most of our customers find that the sewing machine is much easier to control with a Servo motor because of the speed control. This is especially helpful for beginner sewers but also for projects that simply don't require high speed stitching.

This machine package includes a servo motor.

If you need help deciding what option is best for you, give us a call at 800-401-8151, and have one of our experts walk you through the decision.

Optional Cool-Lite LED-10 Magnetic Light

This Magnetic Lamp features 10 LED lights that cast a bright white across the target area. The magnetic attachment makes the lamp great for mounting on any metal surface. Light is powered by an included AC plug.

Specifications:

• Power: 0.5 W
• Voltage: AC110-240V
• Frequency: 50/60 Hz
• LED10 connects to motor switch
• Application: Any sewing machine
• Feature: Has convenient on/off switch on magnet mounting
