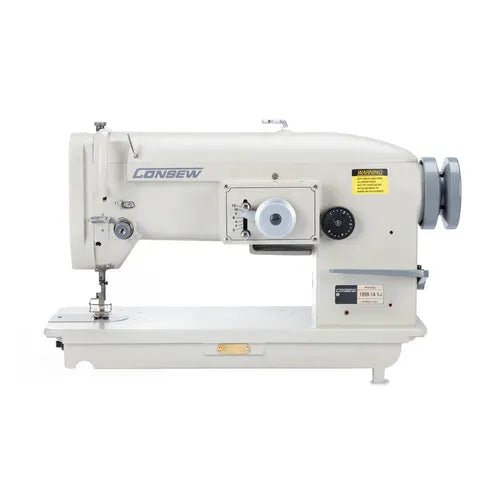

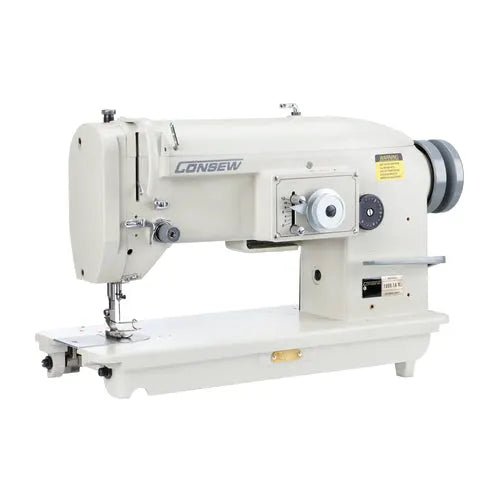

The Consew 199RB-2A is a single-needle, drop-feed, zigzag lockstitch industrial sewing machine featuring a large bobbin, horizontal axis transverse rotary hook, reverse feed, and combination zigzag and straight stitch capabilities.
This machine features the three-step, two-stitch zigzag pattern (Federal Stitch 308), making it suitable for elastic materials, reinforced stitching, ornamental sewing, and industrial applications involving canvas, leather, vinyl, nylon, and synthetic materials.
This package includes a fully assembled table and a servo motor.
The Consew 199RB features drop feed, a horizontal axis transverse rotary hook, reverse feed, a large bobbin, and combination zigzag and straight stitch functionality.
It is suitable for sewing applications requiring reinforced or decorative stitching.

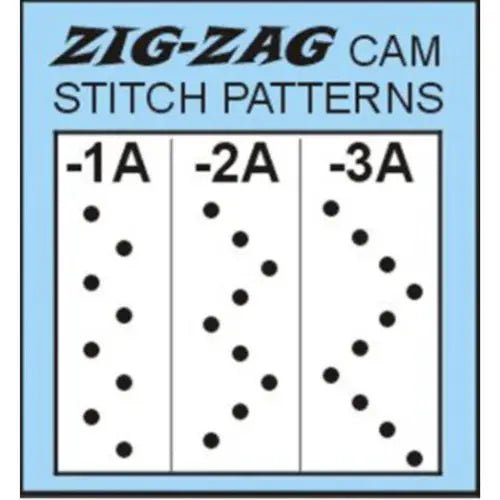

Interchanging between 1A, 2A, and 3A stitch patterns requires additional parts, which are not included.
The Consew 199RB-2A is designed for sewing elastic and stretch materials, ornamental stitching, and applications requiring reinforced seams.
| Specification | Details |
|---|---|
| Model | Consew 199RB-2A-1 |
| Number of Needles | 1 (Single) |
| Feeding Mechanism | Needle Feed |
| Workspace | Standard Workspace |
| Functions | Standard Functions |
| Stitch Type | Three-Step / Two-Stitch Zigzag (Federal Stitch 308) |
| Maximum Stitch Length | 5 S.P.I. (5mm) |
| Work Space | 10" |
| Needle | 135 x 17 |
| Pre-Wound Bobbin | M |
| Bed Size | 7" x 18 7/8" (178mm x 480mm) |
| Needle Bar Stroke | 1 11/32" (34mm) |
| Maximum Zigzag Width | 3/8" (9.5mm) |
| Machine Weight | 78 lbs |
When selecting a motor for an industrial sewing machine, one of the most important considerations is speed control. Two common motor configurations are:
Clutch motors operate at a fixed speed, typically between 1725 and 3450 RPM depending on the motor and machine. Servo motors allow speed adjustment and quieter operation when the pedal is not engaged.
Many operators find sewing machines easier to control with servo motors, especially when working on projects that require slower, more precise stitching.
This Consew 199RB-2A package includes a servo motor.
If you need assistance choosing a motor, contact our sales support team at 800-401-8151.
The optional Cool-Lite LED-10 magnetic lamp features 10 LED lights that provide bright white illumination across the sewing area.
Its magnetic attachment allows convenient mounting on compatible metal surfaces. The light is powered by an included AC plug.
Optional accessory. Availability depends on the product options offered.
Download the Consew 199RB Series instruction manual, parts book and product catalog.
