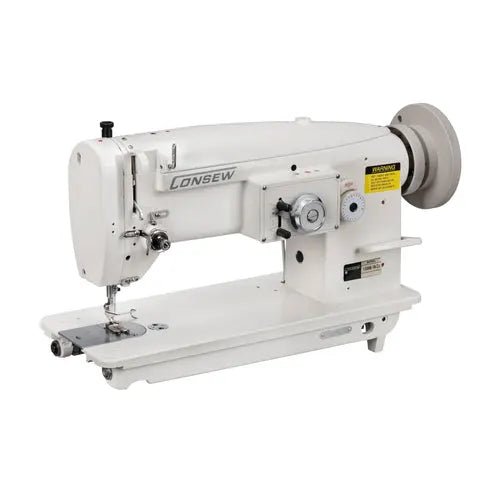

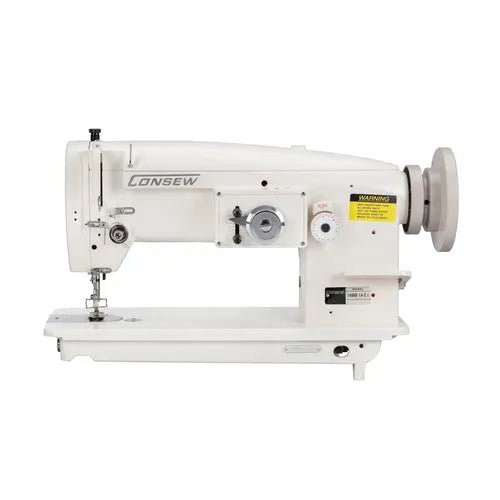

Consew 199RB Single Needle Zigzag Sewing Machine - Stitch Type 3A With Assembled Table and Servo Motor
The Consew 199RB Stitch Type-3A is a heavy-duty, single-needle, drop-feed industrial zigzag lockstitch sewing machine featuring a large bobbin, horizontal axis transverse rotary hook, reverse feed, and combination zigzag and straight stitch functions.

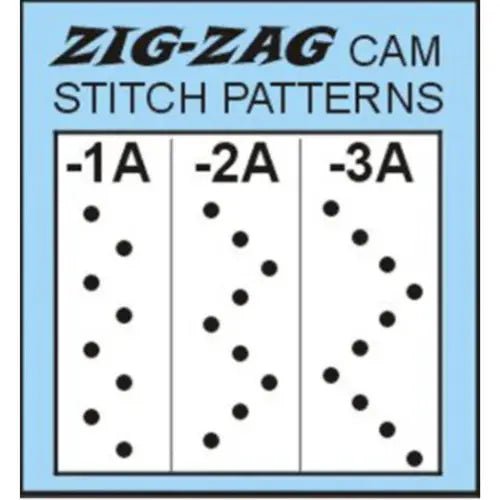

The 3A stitch configuration produces a four-step, three-stitch zigzag pattern designed for applications requiring additional stitch reinforcement. This machine is suitable for working with elastic, canvas, leather, vinyl, nylon, synthetics, and other industrial sewing materials.
This package includes a fully assembled table and a servo motor.
The Consew 199RB features a single needle, drop feed, large bobbin, horizontal axis transverse rotary hook, and reverse feed.
It offers both zigzag and straight stitch capabilities for a variety of industrial sewing applications.
The 3A stitch pattern provides an additional stitch compared with the 2A configuration, making it useful for reinforced sewing.
The Consew 199RB Type-3A is designed for reinforced zigzag stitching on a variety of industrial fabrics and products.
| Specification | Details |
|---|---|
| Model Series | Consew 199RB |
| Stitch Configuration | 3A |
| Number of Needles | 1 (Single) |
| Machine Type | Drop-Feed Zigzag Lockstitch |
| Workspace | Standard Workspace |
| Functions | Standard Functions |
| Stitch Pattern | Four-Step / Three-Stitch Zigzag |
| Maximum Stitch Length | 5 S.P.I. (5mm) |
| Work Space | 10" |
| Needle | 135 x 17 |
| Pre-Wound Bobbin | M |
| Bed Size | 7" x 18 7/8" (178mm x 480mm) |
| Needle Bar Stroke | 1 11/32" (34mm) |
When selecting a motor for an industrial sewing machine, one of the most important considerations is sewing speed. Two common motor configurations are:
Clutch motors typically operate at a fixed speed, often between 1725 and 3450 RPM, depending on the motor and machine configuration.
Servo motors offer adjustable speed control and quieter operation when the foot pedal is not engaged.
Many operators find sewing machines easier to control with servo motors, especially for sewing projects that require slower, more precise stitching.
This Consew 199RB Type-3A package includes a servo motor.
If you need assistance choosing a motor, contact our sales support team at 800-401-8151.
The optional Cool-Lite LED-10 magnetic lamp features 10 LED lights that provide bright white illumination across the sewing area.
Its magnetic attachment allows convenient mounting on compatible metal surfaces. The light is powered by an included AC plug.
Optional accessory. Availability depends on the product options offered.
Download the Consew 199RB Series instruction manual, parts book and product catalog.
