Juki DU-1181N Walking foot Industrial Sewing Machine with Table and Servo Motor (Table Comes Assembled)

How Juki Industrial Machines Are Shipped and PackagedEmpty heading

Juki industrial machine heads are packed in a secured box or crate and will be shipped under the assembled table on a skid or pallet. the customer is responsible for installing the machine head into the table, connecting the motor belt/belt guard and assembling the thread tree using the included hardware. The only exception to this would be the LK-1900B which ships completely assembled due to the more difficult set up.

Disclaimer: Due to the weight of the table with motor, there might be some minor marring or scratches due to shipping. This is normal when shipping industrial machines because of the weight associated with the items. Some machines may be subject to additional freight shipping where the machine is shipped via a crate due to the size and weight. View our freight policy here.

If you have any questions, please call our sales support team: 800-401-8151

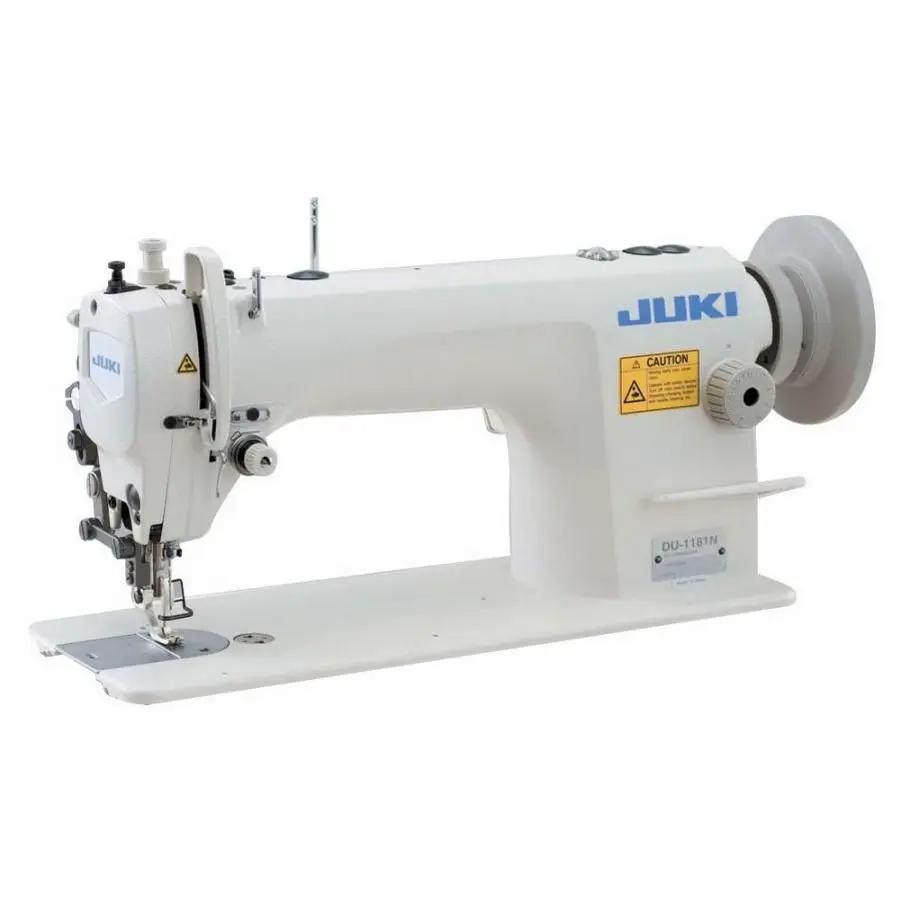

Juki DU-1181N 1-Needle, Top and Bottom-feed, Lockstitch Machine with Double-capacity Hook

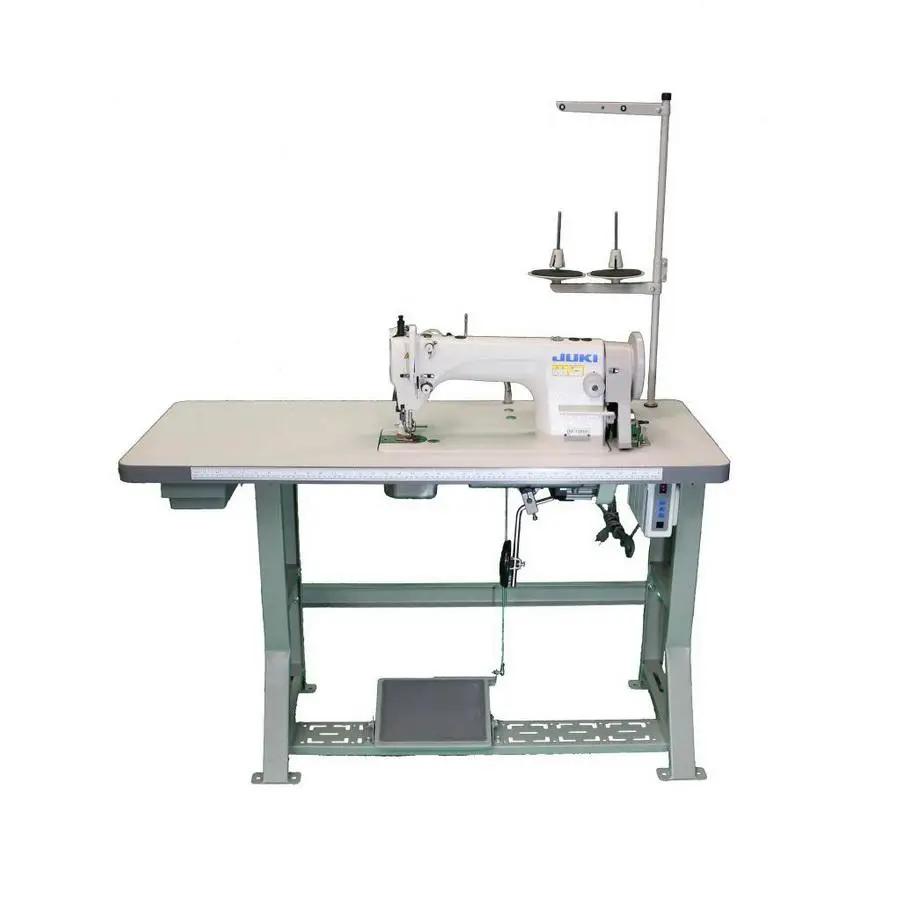

Juki DU-1181N Walking Foot Machine Includes Fully Assembled Table and Servo Motor

With its powerful top and bottom feed mechanism, the machine smoothly feeds a difficult to feed material or a multi layered part of material without pitch errors, achieving consistent seam quality. The automatic lubricating mechanism dramatically improves maintainability of the machine.

Key Features

Table and Servo Motor

This Package includes a Fully Assembled Table and a Servo Motor.

High lift of the presser foot

The lift of the presser foot, by the knee lifter, is as high as 15mm so as to support processes which require a higher lift of the presser foot such as piping and tape attaching.

The Maximum stitch length is 9mm

With its stitch length being as large as 9mm, the machine is applicable to a broader range of sewing processes.

The Double Capacity hook is standard

The machine comes with a horizontal-axis double-capacity hook, not only to decrease the frequency of bobbin thread changing, but also to enable sewing work with increased efficiency.

Automatic Lubrication

A pump-unit type automatic lubricating mechanism dramatically improves maintainability. The oil amount in the face plate and hook is adjustable.

Lubricating mechanism

The top feed mechanism employs a grease tank and oil wick lubrication mechanism.

The machine achieves low-vibration and low-noise

The machine head is designed to achieve optimum balance, thereby reducing vibration and noise. The machine affords the operator a comfortable working environment.

Excellent Operability

• The stitch can be adjusted in both the normal and reverse directions
• The height and inclination of the feed dog can be adjusted
• The amount of the alternating vertical movement of the walking foot and presser foot is adjustable in a range from 2mm to 5mm according to the height of a multi-layered section of material
• The horizontal feed cam, top and bottom feed cam and top feed cam can be adjusted after opening the rubber caps (three caps) on top of the machine head

Specifications

Motor Options

Some other advantages of the Servo Motor include:

• They consume up to 90% less energy than clutch motors
• 1/3 lighter than clutch motors
• Reverse motor rotation with the flick of a switch
• Nothing to wear or adjust
• Adjusted speed remains the same no matter how hard the pedal is pressed

Most of our customers find that the sewing machine is much easier to control with a Servo motor because of the speed control. This is especially helpful for beginner sewers but also for projects that simply don't require high speed stitching.

Optional T-Leg Table Stand with Wheels Upgrade

Features:

• Adjustable Height
• Caster Wheels
• Heavy Duty Steel Construction

Downloads
