Reliable 4000SW Single Needle, Compound Feed - Walking Foot Sewing Machine. Includes High Quality Table (Assembled), SewQuiet Servomotor, and FREE BONUS LED Uberlight!

Disclaimer: Due to the weight of the table with motor, there might be some minor marring or scratches due to shipping. This is normal when shipping industrial machines because of the weight associated with the items.

SKU : rel-4000sw

Reliable

🏆 50+ Year Authorized Dealer | 60-Day Money Back Guarantee
Price Match — We Beat Any Price
Free Shipping on Orders Over $49 | Over 1 Million Happy Customers!

This product is currently out of stock. Click here to view similar products.

Call 800-401-8151 For Details.
Condition:  Brand New

Have you seen this item for less?

Returns: General returns are not accepted on this item.

Product Information
Accessories

1 Year Warranty on Reliable Corporation Machines

Reliable Corporation warrants to original purchaser of its products that every product sold by Reliable is free from defects in material and workmanship for a period of one (1) year from the date of purchase.

LOOKING FOR GREAT VALUE IN A WALKING FOOT MACHINE, THEN LOOK NO FURTHER!

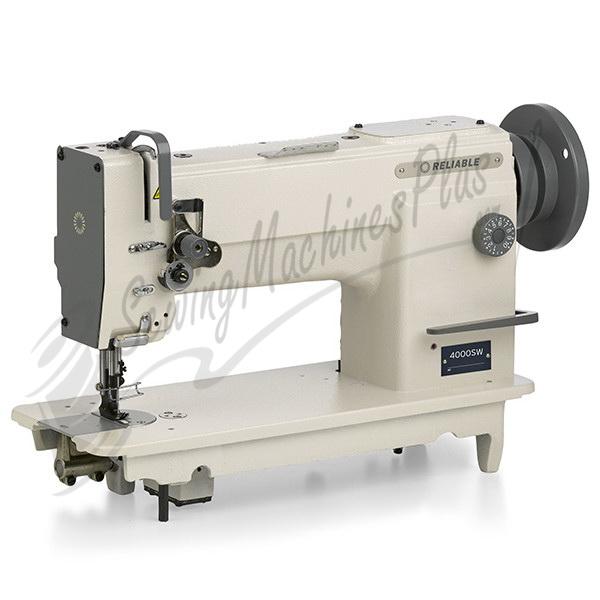

Reliable 4000SW Single Needle, Compound Feed - Walking Foot Sewing Machine

The Reliable 4000SW Includes

  • Walking Foot Machine Head
  • SewQuiet 6000SM Adjustable Speed ServoMotor

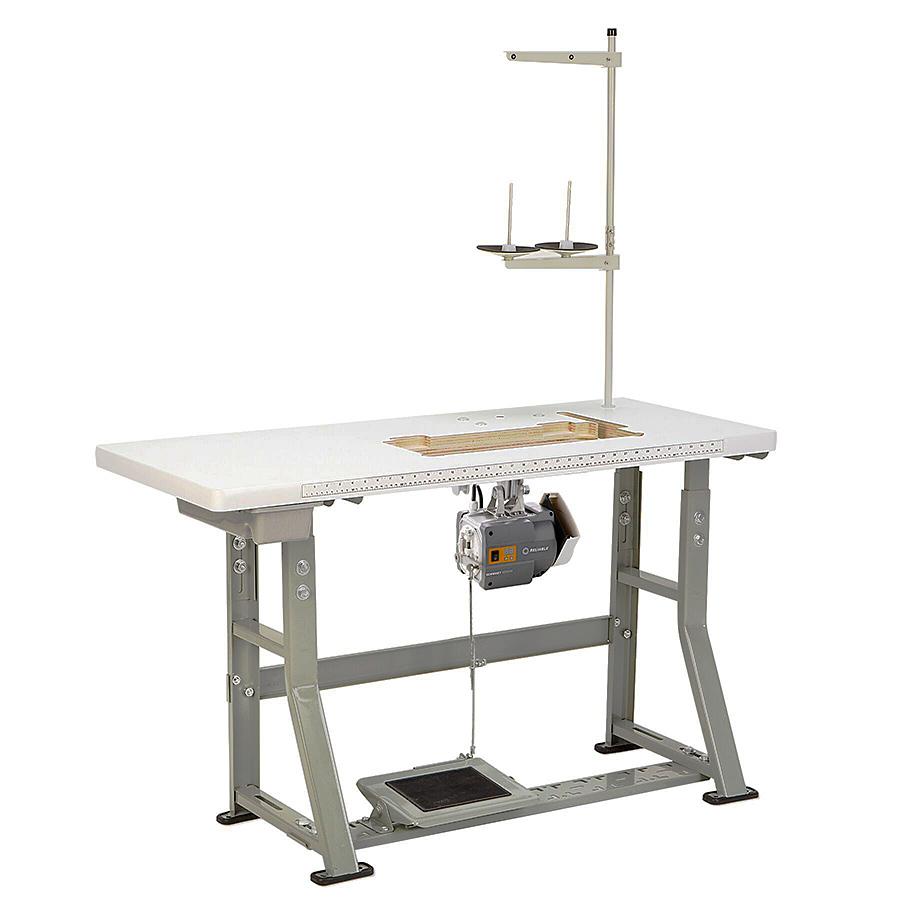

  • Superior 100% Plywood Table/Stand
  • FREE BONUS! LED Uberlight

SINGLE NEEDLE LOCKSTITCH, WALKING FOOT

For heavier work, the most common type of sewing machine is the single needle, walking foot (compound feed) lockstitch machine. Top and bottom feed, and a higher foot lift allows the 4000SW to sew from medium to heavy weight fabric.


As an added bonus, the Reliable 4000SW comes fully assembled. That means no wrestling with the machine head and motor trying to get them mounted! Start being productive right away!


The 4000SW single needle, compound feed walking foot sewing machine is ideal for sewing leather, upholstery, canvas, synthetics and other medium to heavy weight fabric. With its powerful feeding system (top and bottom feed) higher pressure foot lift and longer stitch length, the 4000SW can easily sew heavy materials with heavier thread.

QUALITY YOU CAN COUNT ON

For sewing leather, upholstery, canvas, and synthetics, the 4000SW offers the whole package. Low noise and vibration design, outstanding build quality and reliability and the industries #1 DC servomotor.


Key Features

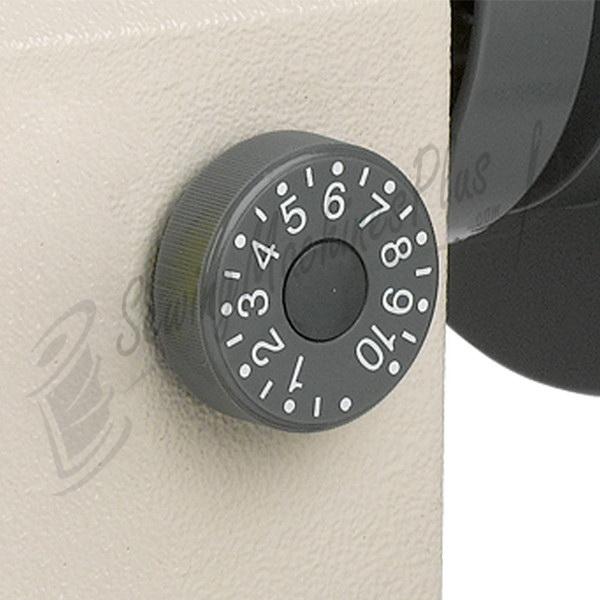

Stitch Dial Regulator

Stitch Dial Regulator

The stitch dial provides a simple adjustment (0-10 mm) for the length of the stitch.

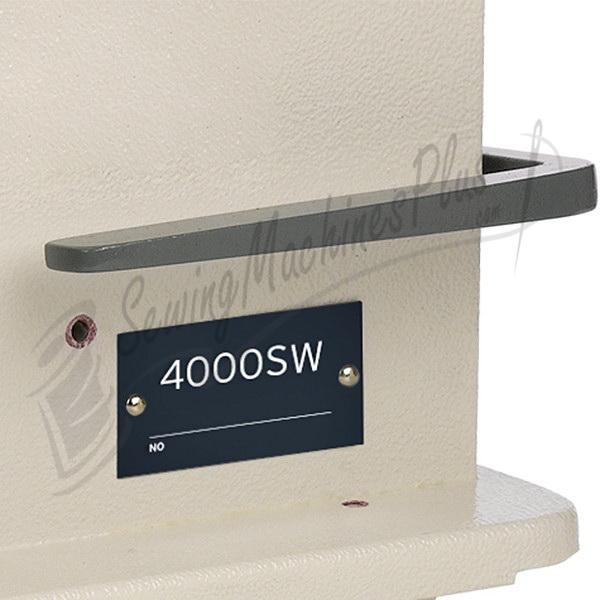

Reverse Lever Mechanism

Reverse Lever Mechanism

Creating the perfect back tack is easy with the 4000SW's reverse lever mechanism.

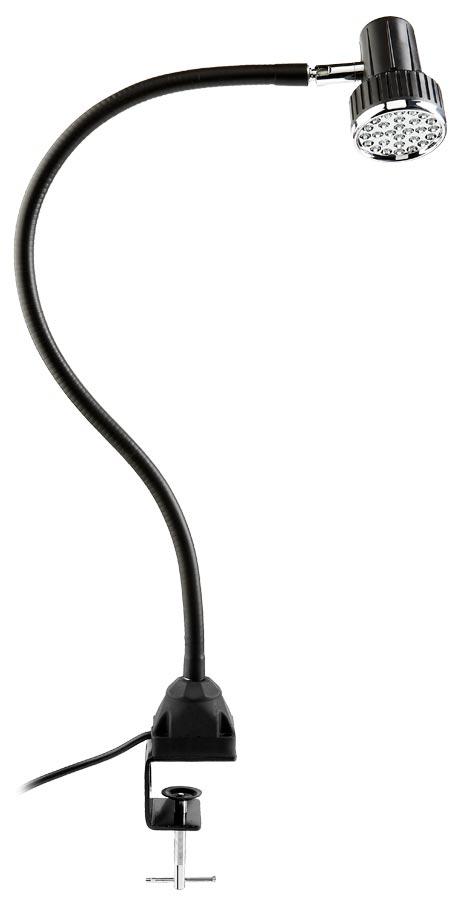

Ăśberlight 9000C SMD-LED Included

Ăśberlight 9000C SMD-LED Included

The perfect add on light ($99.00 retail value) is included at no extra charge for the MSK-335B making it both a great sewing machine and a great value.


Specifications

  • Maximum sewing speed 2,000 RPM
  • Stitch length 0 - 10 mm
  • Needle bar stroke 35 mm
  • Pressure foot lift By hand 8 mm
  • Pressure foot lift By Knee 14 mm
  • Needle system # 135 x 17
  • Thread take up stroke 71.5 mm
  • Feed dog Single row
  • Hook type Rotary auto lubricated
  • Lubrication Manual
  • Stitch dial regulator Yes
  • Reverse lever Yes
  • Country of origin China
  • Warranty Limited 1 Year
  • Dimensions - head 11" x 28" x 26"
  • Weight - head 76 lbs
  • Dimensions with stand 40" x 50" x 51"
  • Shipping weight w/stand 200 lbs

Reliable 4000SW Downloads

Reliable 4000SW Instruction Manual (PDF)

Download

Reliable 4000SW Product Brochure (PDF)

Download

Reliable 4000SW Frequently Asked Questions (PDF)

Download

Additional Features

  • 2,000-RPM high-speed operation
  • Large capacity hook
  • 14 mm foot lift (knee)
  • Single row feed dog
  • Manual lubrication
  • Instruction / parts manual included
  • Tool kit, drawer, thread stand included
  • Individually tested and sewn-off before shipping
  • SewQuiet DC servomotor
  • ĂśberLight LED light Included
  • Heavy-duty K-legs and table
  • Large capacity hook
  • SewQuiet DC servomotor

Best Used For

  • Leather
  • Canvas
  • Synthetic materials
  • Upholstery
  • Boat tops
  • Tarpaulins
  • Awnings
  • Tents

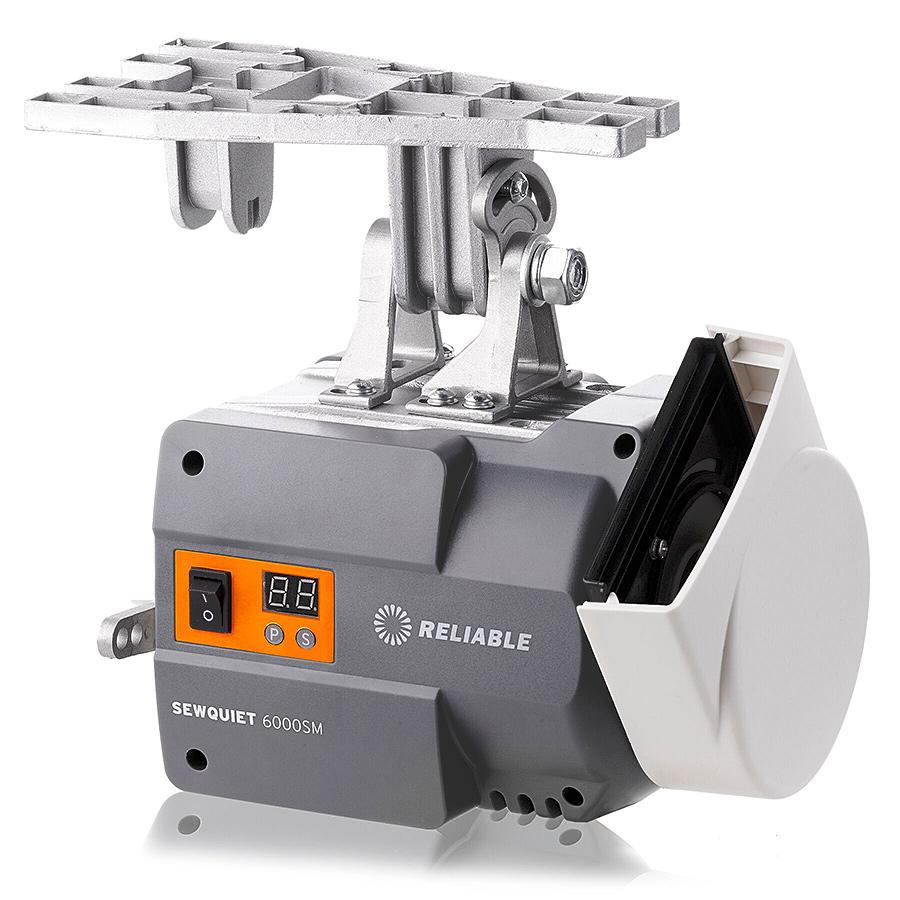

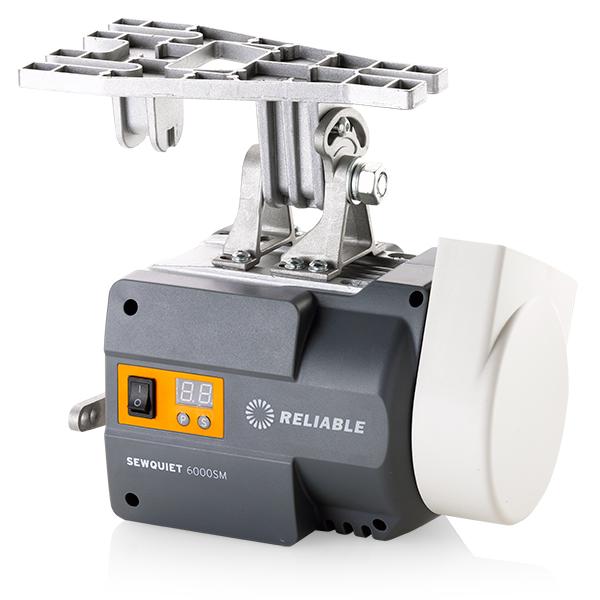

SewQuiet 6000SM Brushless DC Servomotor INCLUDED

BEAUTY AND BRAWN

The SewQuiet 6000SM brushless DC servomotor is a modern-day marvel of ingenuity and technology, crafted and designed to exceed your expectations. This is the only servomotor to incorporate a full 12-coil (vs. 6 or 9) design. This provides unparalleled power and torque, the kind of torque that’s needed to work with the toughest materials. And for those looking to add a synchronizer to your motor, it’s now available as a low cost stand-alone option.

CALIBRATED CONTROL

The SewQuiet 6000SM represents the fourth generation of Reliable’s energy saving servomotor innovation. Precision step-by step stitching for detailed sewing, the ability to plug in a grounded light directly to the rear of the motor, UL/CSA certified electrical components and the total silence that gives the SewQuiet its name… the new 6000SM takes everything we’ve learned about motors over the past 60 years to new heights.


Key Features

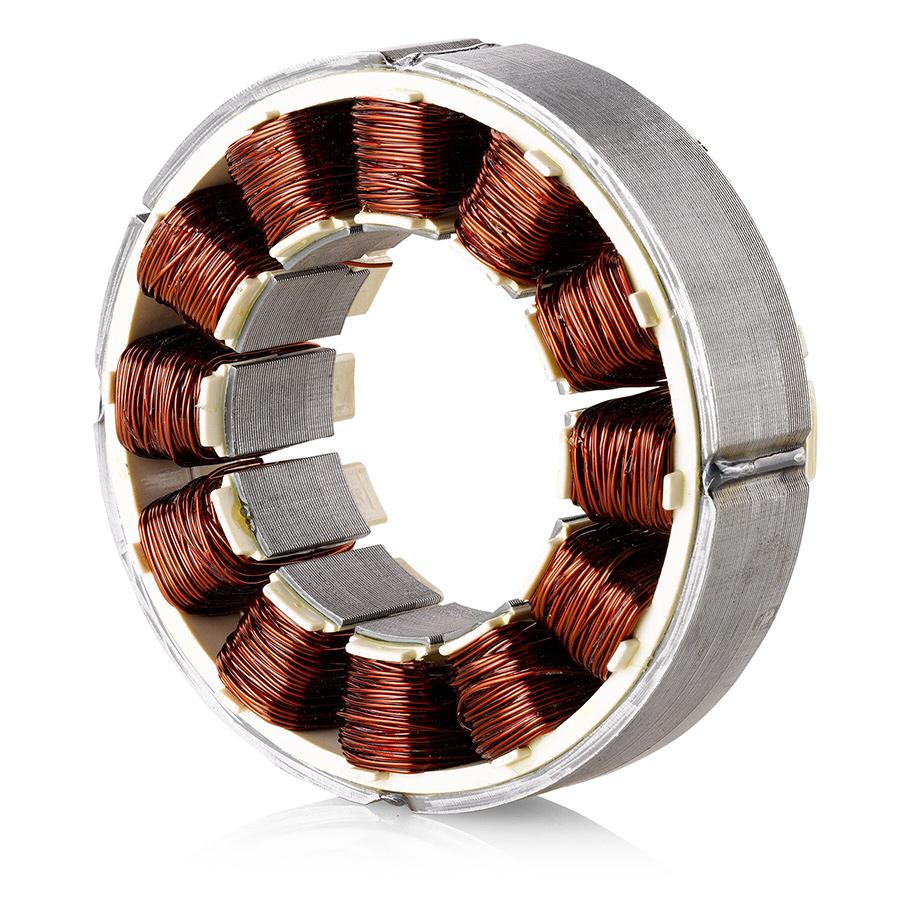

More Coils = More Torque

More Coils = More Torque

This is the only servomotor to incorporate a 12-coil (vs. 6 or 9) design, providing the torque you need to get through heavier sewing tasks with ease.

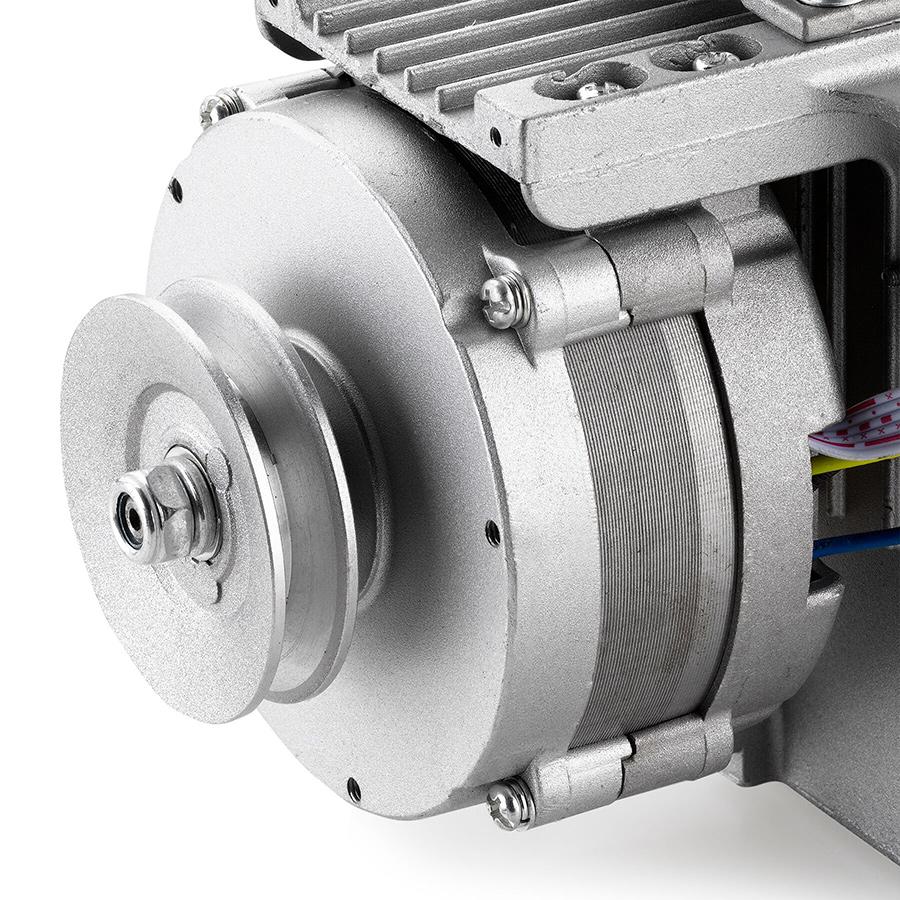

550W Servomotor

550W Servomotor

The SewQuiet’s servomotor is the powerhouse behind every 6000SM, providing revolutions up to 6000RPM.

Variable Speed Control

Variable Speed Control

Built-in push button on/off switch and variable speed control. Easy to read LED display.

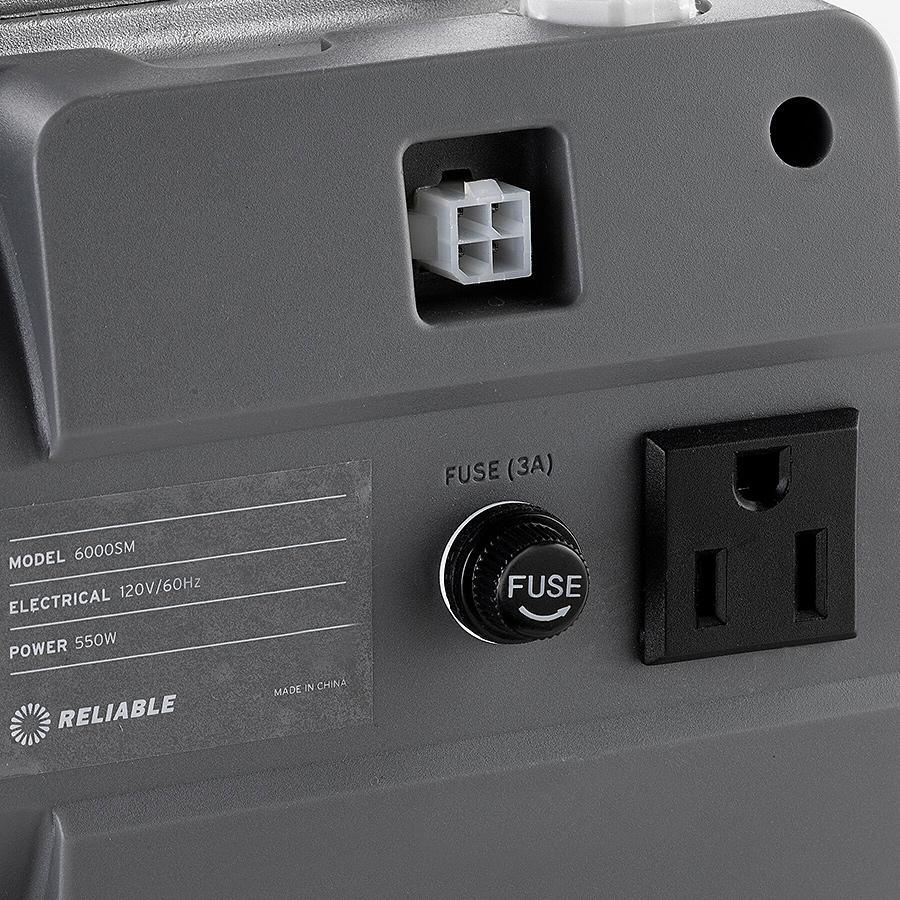

Built-In Light Receptacle

Built-In Light Receptacle

The 6000SM is equipped with a fused and grounded receptacle to plug in an UberLight LED light or a light of your choice.

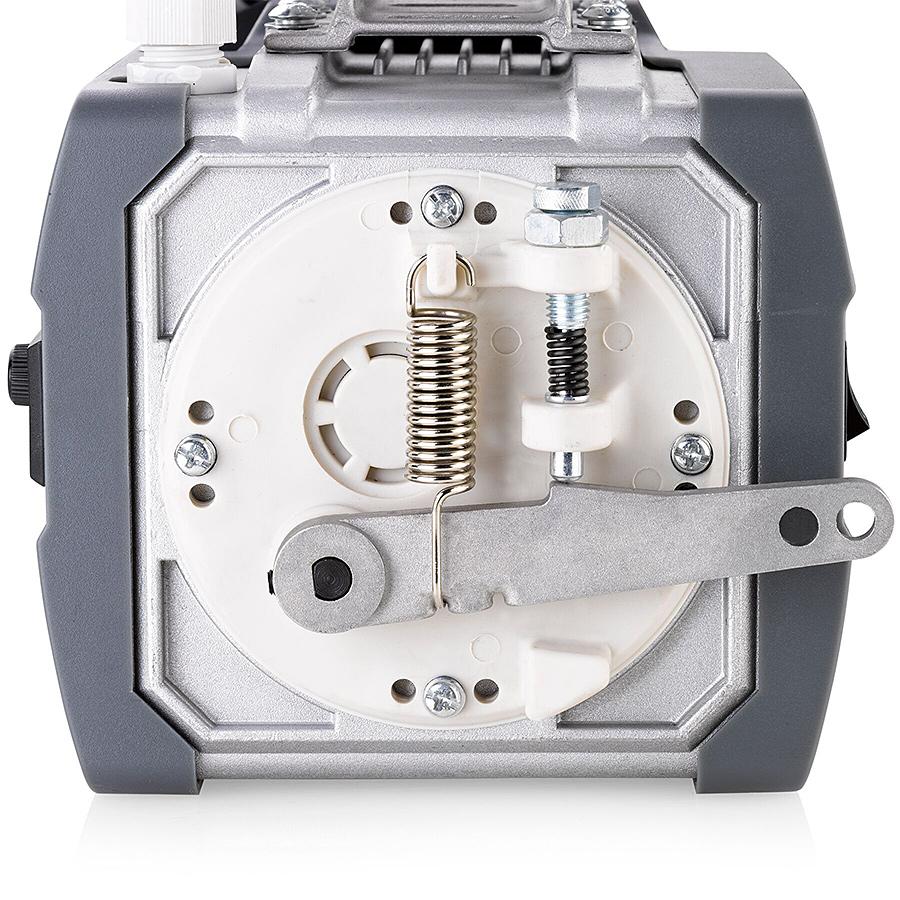

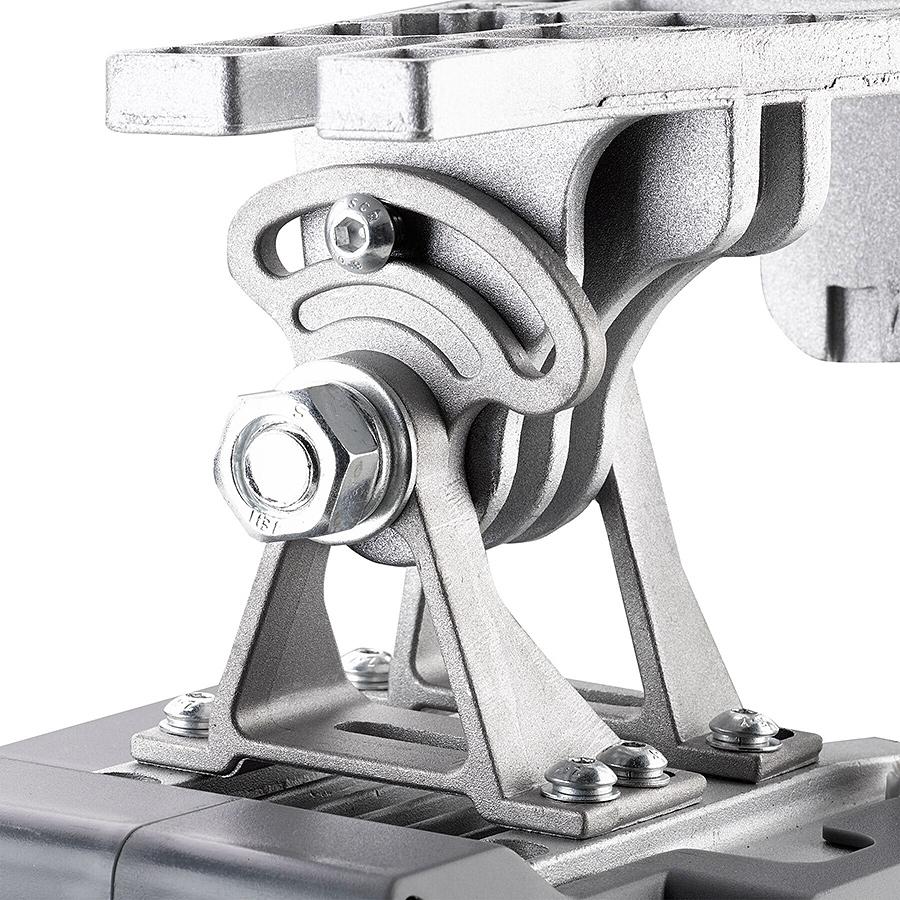

Belt Adjustment

Belt Adjustment

Regardless of the brand of sewing machine you are mounting the SewQuiet 6000SM to, the belt tensioning device is simple and easy to set-up.

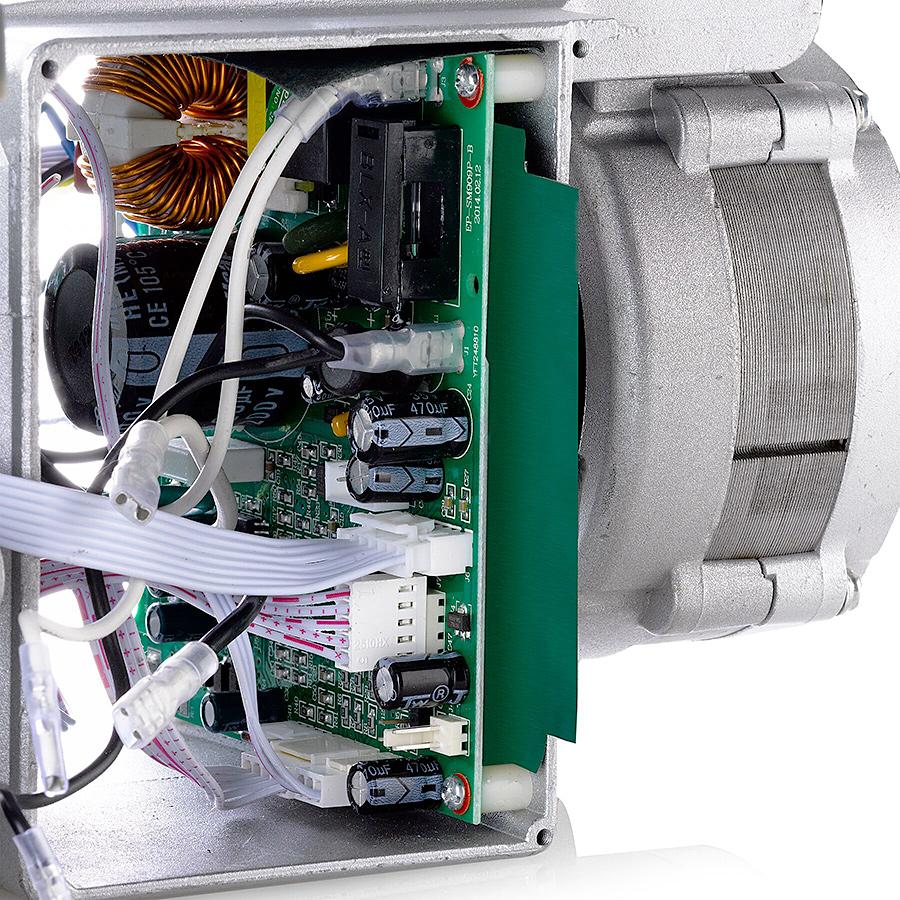

PCB Insulation

PCB Insulation

Inside the 6000SM you will find PCB insulation that houses and protects the internal electrical components of the motor.

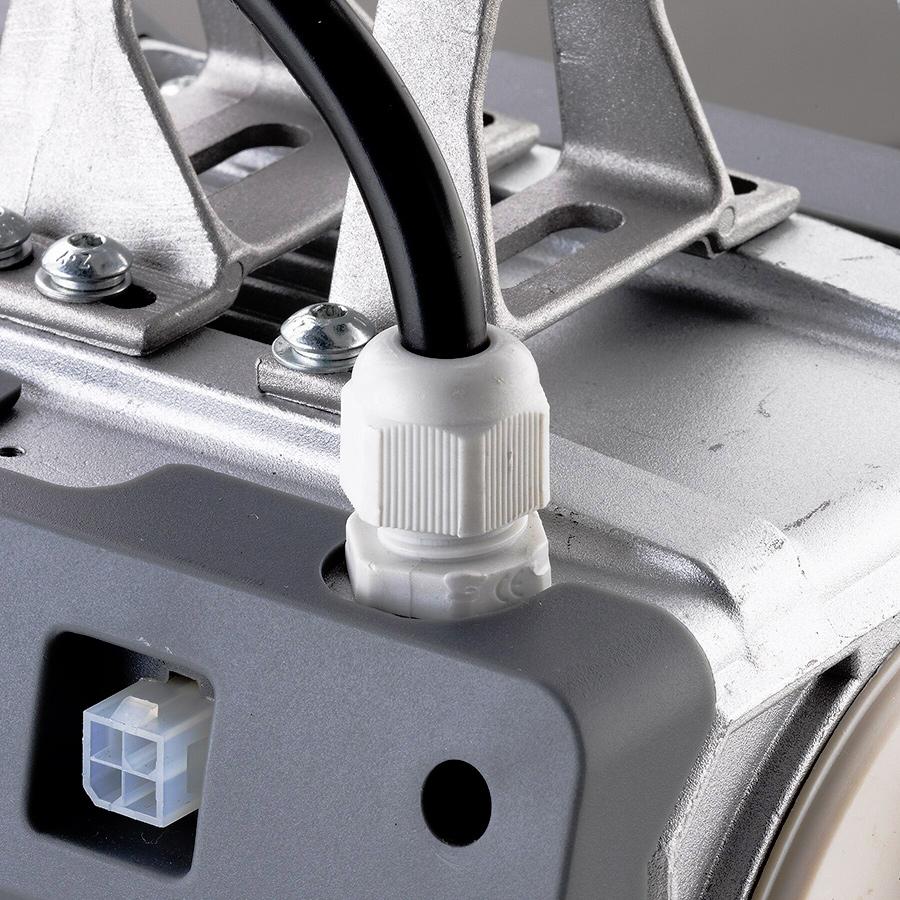

Strain Relief

Strain Relief

This smart safety feature prevents pullout and wear on the electrical cord.

No Extra Charge

No Extra Charge

And the best part of the new SewQuiet 6000SM? It's included at no additional cost with all Reliable industrial sewing machines.

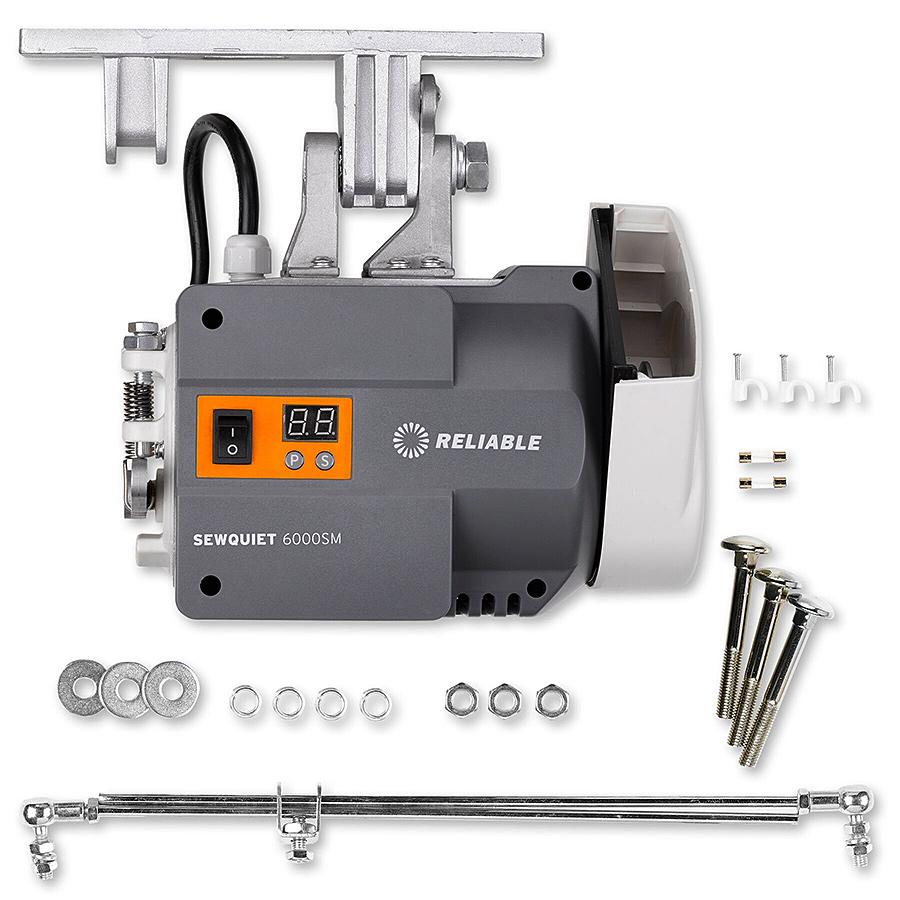

Simple Setup

Simple Setup

Everything you need to get your SewQuiet 6000SM up and running is supplied in the box.


Specifications

  • Electrical - 120V
  • H.P. - 3/4
  • Power - 550W
  • Power Consumption - 4.5 amps
  • Speed Control - Digital
  • Pulley Type - Aluminum
  • Pulley Size - 60mm
  • On-Off Switch - Built-in
  • Accessories - Treadle rod mounting hardware, belt guard
  • Dimensions - 9.75" x 9" x 6"
  • Weight - Net - 7.8 lb - 3.5 kg
  • Shipping Dimensions - 13.2" x 11.4" x 8"
  • Shipping Weight - 10 lb - 4.5 kg
  • Manufacturer's Warranty - Limited 1 year

Downloads

Servomotor Instruction Manual

Download

Servomotor Manf. Warranty

Download


Optional Sewing Chair Choices

Add Your Sewing Chair in the Dropdown Menu Above

Click to visit product page

SewErgo 100SE Chair

The SewErgo 100SE provides copious amounts of comfort for work or leisure. During development, our goal was to create an operator chair that provided comfort and style, yet offered safety and stability with an eco-conscious effort. The SewErgo 150SE maintains all these aspects while providing users with the affordable choice for their sewing environment.

Click to visit product page

SewErgo2 150SE Chair

The SewErgo 150SE provides copious amounts of comfort for work or leisure. During development, our goal was to create an operator chair that provided comfort and style, yet offered safety and stability with an eco-conscious effort. The SewErgo 150SE maintains all these aspects while providing users with the affordable choice for their sewing environment.

Click to visit product page

SewErgo 200SE Chair

The SewErgo 200SE provides copious amounts of comfort for work or leisure. During development, our goal was to create an operator chair that provided comfort and style, yet offered safety and stability with an eco-conscious effort. The SewErgo 200SE maintains all these aspects while providing users with the affordable choice for their sewing environment.


Optional 600SM Synchronizer for Servomotor

Add Your Synchronizer in the Dropdown Menu Above

600SM Synchronizer

for Servomotor

The Reliable 6000SMSYNCH allows you to stop the needle and position it in various set positions. Can be used with 6000SM or 6050SM motors.
