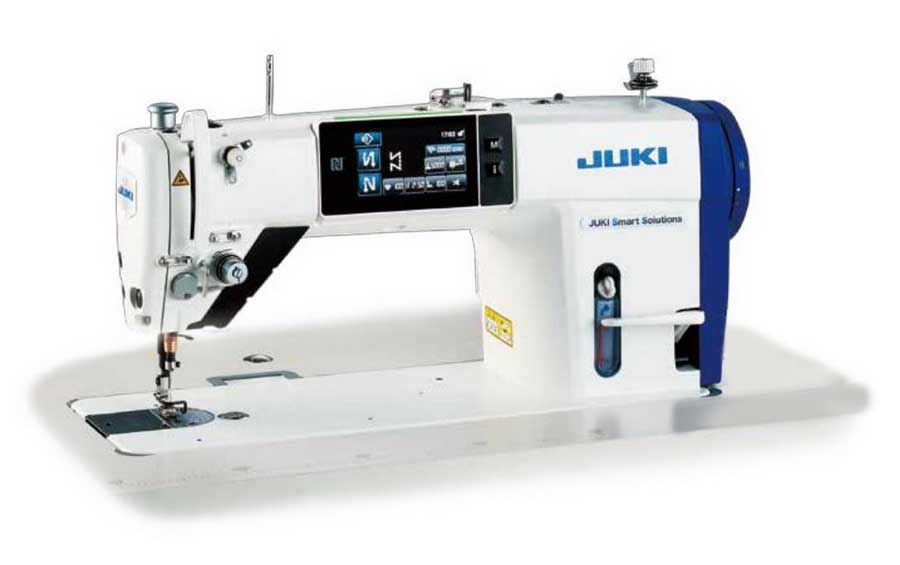

DDL-9000C Lockstitch Machine Overview
JUKI has digitalized the drive mechanism of the sewing machine which determines the "seam" quality, JUKI launches the new "direct-drive, high-speed, lockstitch sewing system with automatic thread trimmer" DDL-9000CF.This is the newest flagship lockstitch machine. Digitalized vertically- and horizontally-driven feed mechanism allows easy adjustment of settings such as the feed locus only on the operation panel according to the material to be sewn.Thanks to the digitalization, Optimum adjustment values required to produce high-quality seams can be stored, on a material-by-material basis, in memory and can be reproduced wi th ease. For sewing plants which produce diversified products using diversified materials, this feature is quite helpful to achieve stable seam quality. These machines are used in the new hit fashion tv show on Netflix: Next in Fashion with Tan France and Alexa Chung.
| Model | DDL-9000C-FMS | DDL-9000C-SMS |
|---|---|---|

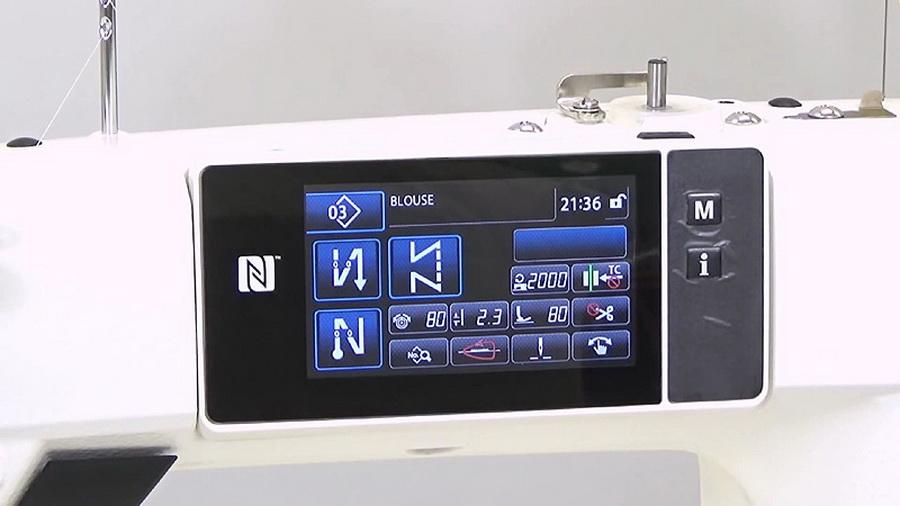

| Type | Full Digital Type - Adoption of a 4.3-inch large color liquid crystal touch panel ensures easy operation. The touch panel is provided with JUKI's unique intelligent sewing system features. | Digital Type - Adoption of a black-and-white liquid crystal switch panel ensures easy operation. Since, unlike the CP panel, the black-and-white liquid crystal panel provides verbal explanation of its operation, it is easier for the operator to understand how to operate it |
| Digital Feed (Horizontal Direction) | Yes | Yes |
| Digital Feed (Vertical Direction) | Yes | Yes |

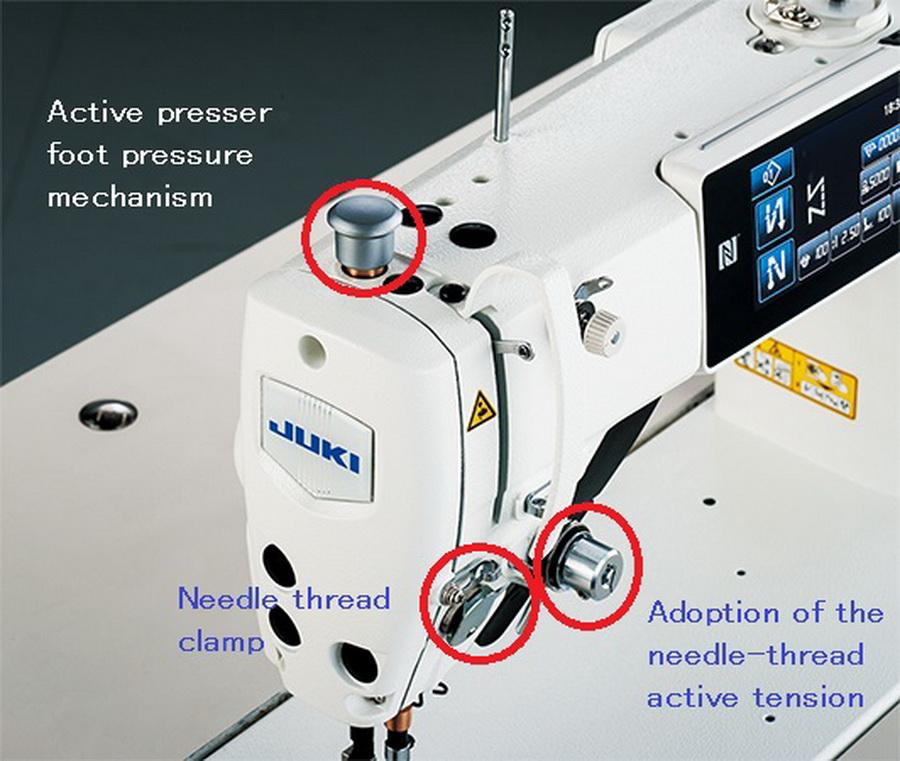

| Active Presser Foot | Yes | No |
| Active Tension | Yes | No |

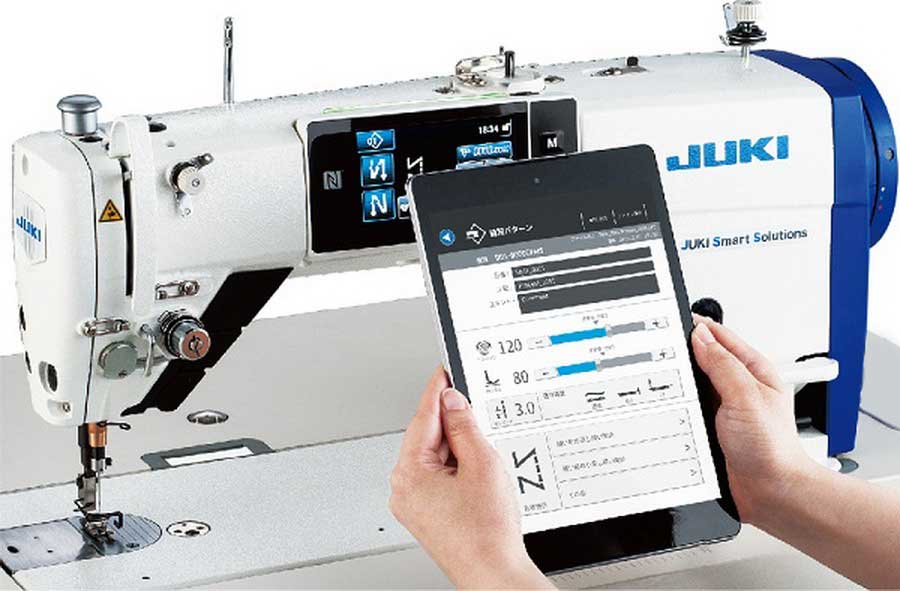

| Support to an Android Tablet | Yes | Yes |
| Network | Yes | (Support through and Android tablet only) |
| Shorter-thread remaining type thread trimming | Yes | Yes |
| Color Touch Panel | Yes | No - Black and White |
| Application | Medium-weight | Medium-weight |
| Lubrication | Semi-dry | Semi-dry |
| Max. sewing speed | 5,000sti/min1 | 5,000sti/min1 |
| Hand switch | Provided as standard (At the time of shipment : Hand switches are assigned respectively with the touch-back switch function and the one-touch changeover switch function.) 5mm | Provided as standard (At the time of shipment : Hand switches are assigned respectively with the touch-back switch function and the one-touch changeover switch function.) 5mm |
| Max. stitch length | 5mm | 5mm |
| Thread trimming method | Double-edge rotary system | Double-edge rotary system |
| Needle bar stroke | 30.7mm | 30.7mm |
| Feed dog height | 0.8mm | |
| Needle thread tension | Active tension | Spring Type |
| Presser foot pressure | Electronic control | Spring Type |
| Lift of the presser foot | By hand : 5.5mm, 1st stage 5.0 mm *0.18.5mm, 2nd stage 8.5 mm *8.5mm13.5mm * Adjustable on the operation panel | By hand : 5.5mm, By knee : 15mm Auto : 1st stage 5.0 mm *0.18.5mm, 2nd stage 8.5 mm *8.5mm13.5mm * Adjustable on the operation panel |
| Needle3 | DB×1DB×5#11, #918Nm65110 | DB×1DB×5#11, #918Nm65110 |
| Bobbin thread winder | Built in the top of machine head (provided with the bobbin thread retaining plate) | Built in the top of machine head (provided with the bobbin thread retaining plate) |
| Lubricating oil | JUKI New Defrix Oil No. 1 or JUKI CORPORATION GENUINE OIL 7 (equivalent to ISO VG7) | JUKI New Defrix Oil No. 1 or JUKI CORPORATION GENUINE OIL 7 (equivalent to ISO VG7) |
| Size of bed | 517×178mmdistance from needle to machine arm303mm | 517×178mmdistance from needle to machine arm303mm |
| Machine head drive | Compact AC servomotor (400W) that is directly connected to the main shaft (direct-drive system) | Compact AC servomotor (400W) that is directly connected to the main shaft (direct-drive system) |
| Power consumption | 520VA | 520VA |
| Net weight | Machine head 40.5kgwith AK-154 or 90 lbs. | Machine head 40.5kgwith AK-154 or 90 lbs. |
| Warranty | 90-days on mechanical components, 1 year on electronics. | 90-days on mechanical components, 1 year on electronics. |
