Consew Premier 2339RBLH-18 Double Needle Long Arm With Assembled Table and Servo Motor
Consew Premier 2339RBLH-18 Double Needle Long Arm With Assembled Table and Servo Motor
Consew Premier 2339RBLH-18 Double Needle Long Arm With Assembled Table and Servo Motor

Consew Premier 2339RBLH-18 Double Needle Long Arm With Assembled Table and Servo Motor

SKU : smp-con2339rblh-18

Consew

Sale price  $6,348.73 Regular price  $8,761.73

🏆 50+ Year Authorized Dealer | 60-Day Money Back Guarantee
Price Match — We Beat Any Price
Free Shipping on Orders Over $49 | Over 1 Million Happy Customers!

Condition:  Brand New

Have you seen this item for less?

Returns: General returns are not accepted on this item.

Product Information

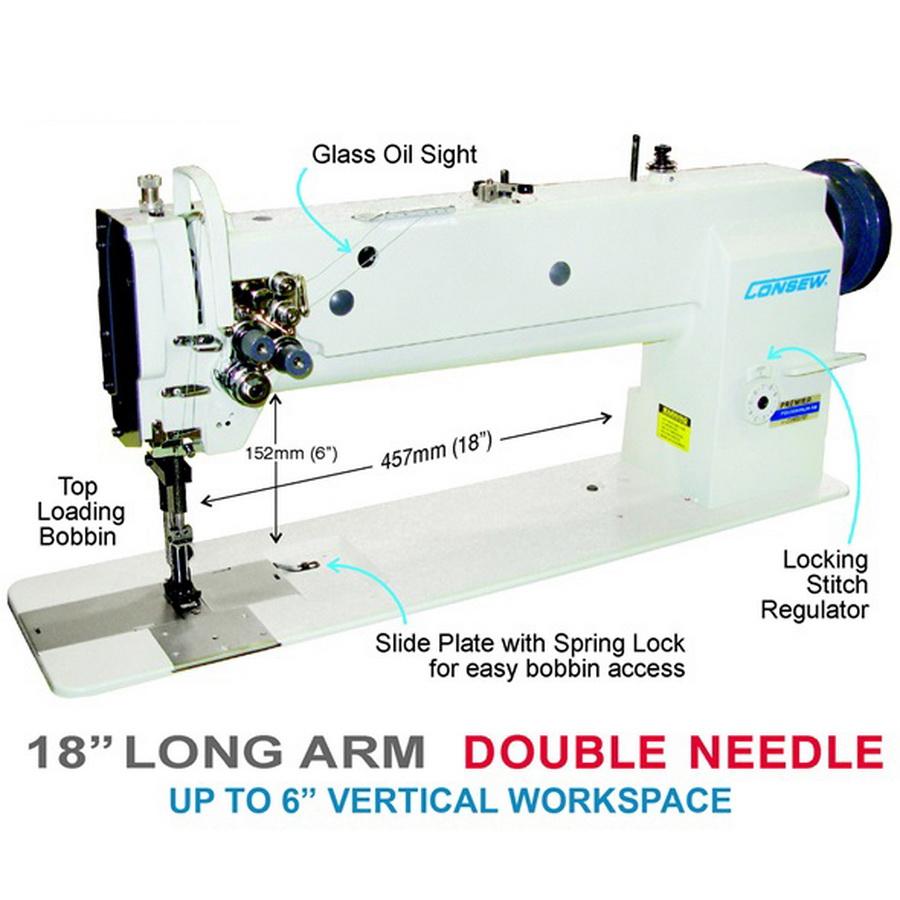

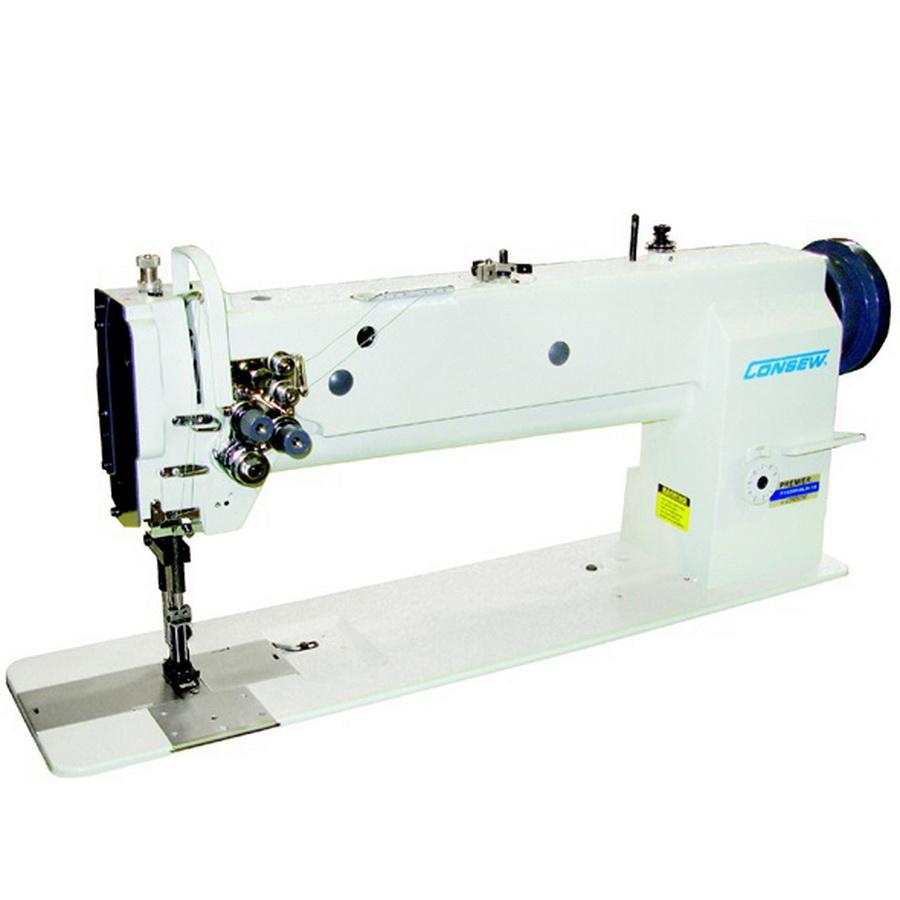

Consew Premier 2339RBLH-18 Double Needle Long Arm

When you're running double needle work through stacked upholstery panels or heavy canvas all day, the machine either keeps up or it costs you money. The Consew Premier 2339RBLH-18 keeps up.

The 18-inch long arm gives you genuine working room — no wrestling large panels into a cramped throat. Pair that with 6 inches of vertical clearance and you're handling the kind of layered, bulky work that stops lesser machines cold. The combined walking foot and needle feed system means every layer advances together, which is the only way to run consistent double needle rows through leather or multi-layer upholstery without drift or pucker. At 1,800 SPM, you're moving through production runs, not crawling through them.

What keeps this machine running all day is how it's built underneath: an oil pump with adjustable flow, a large automatically oiled vertical axis hook, and a safety clutch that protects your investment when something unexpected hits. The barrel-type locking stitch regulator holds your setting — stitch length doesn't wander mid-run. The large top-loaded bobbin means fewer stops. The included servo motor runs near-silent, draws 90% less power than a clutch motor, holds speed under load, and is fully adjustable for the work at hand.

It arrives assembled, table and all, ready to earn its keep on day one. SewingMachinesPlus has been an authorized Consew dealer for over 50 years — call 800-401-8151 and you'll reach someone who actually knows this machine, with 0% financing available to put it to work now.

INCLUDED: Assembled Table and Servo Motor



More Information

Features

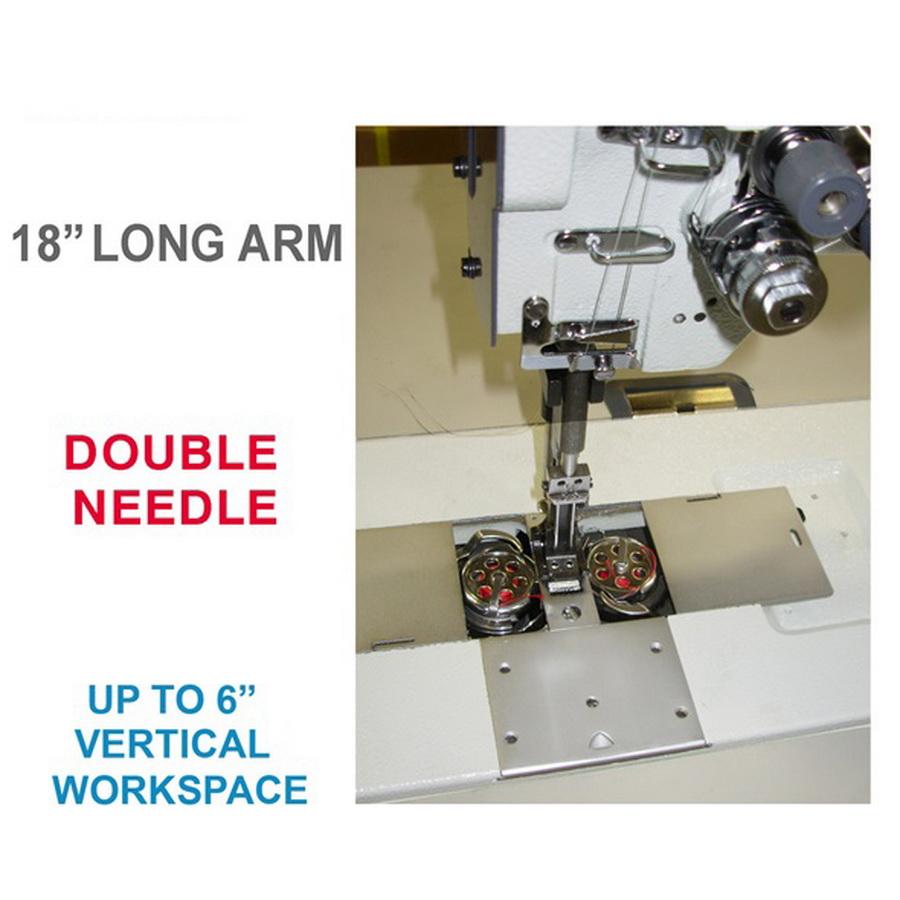

  • Double Needle
  • Long Arm with 18" Working Space
  • Up to 6" Vertical Working Space
  • Oil Pump System with Adjustable Oil Flow
  • Upper Oil Glass Sight
  • Large Vertical Axis Automatically Oiled Hook
  • Barrel-type, Locking Stitch Regulator
  • Locking Stitch Regulator
  • Large Top-Loaded Bobbin
  • Reverse
  • Quick Tension Release
  • Safety Clutch
  • Locking Slide Plate for easy bobbin access.
  • Adjustable Take-Up Thread Guide for thread loop timing

Specifications

  • Speed, Max. (S.P.M.): 1800 (*Speed depends on thread, material and operation)
  • Presser Foot Lift: By Hand - 5/16" (8 mm)/By Knee - 33/64" (13 mm)
  • Needle Bar Stroke: 1-27/64" (36 mm)
  • Stitch Length, Max: 2.8 s.p.i. (9 mm)
  • Work Space: 18" x 4-1/4" (457 x 110 mm)
  • Working Height Under Arm: 6" (152 mm) maximum
  • Needle: 135 x 17 (x2)

Specifications

Category Specification
Number of Needles 2 (Double)
Feeding Mechanism Walking Foot
Workspace Long Arm
Standard or Full Function Standard Functions
Stitch Type 301

Table & Clutch Motor

Table & Servo Motor

This Package includes a Fully Assembled Table and a Servo Motor.


Motor Options

With so many options available for motors when we talk about replacing or buying a motor for our industrial sewing machine, there is one important point to keep always in mind "The Speed".

Regardless of brand or price, motors come in two different configurations:

  1. Variable Speed Servo Motor
  2. Adjustable-Speed Servo Motor

Clutch motors operate at a fixed speed, typically between 1725 - 3450 rpm, depending on the type of machine. Servo Motors on the other hand are speed adjustable. The two major advantages of the Servo Motor are that you can control the speed of the motor and that the motor is completely silent when the pedal is not engaged.

Some other advantages of the Servo Motor include:

  • They consume up to 90% less energy than clutch motors
  • 1/3 lighter than clutch motors
  • Reverse motor rotation with the flick of a switch
  • Nothing to wear or adjust
  • Adjusted speed remains the same no matter how hard the pedal is pressed

Most of our customers find that the sewing machine is much easier to control with a Servo motor because of the speed control. This is especially helpful for beginner sewers but also for projects that simply don't require high speed stitching.

This machine package includes a fixed-speed servo motor.

If you need help deciding what option is best for you, give us a call at 800-401-8151, and have one of our experts walk you through the decision.


Optional Cool-Lite LED-10 Magnetic Light

Choose Add-on Cool-Lite LED-10 Magnetic Light Dropdown Menu Before Checkout

This Magnetic Lamp features 10 LED lights that cast a bright white across the target area. The magnetic attachment makes the lamp great for mounting on any metal surface. Light is powered by an included AC plug.

Specifications

  • Power: 0.5 W
  • Voltage: AC110-240V
  • Frequency: 50/60 Hz
  • LED10 connects to motor switch
  • Application: Any sewing machine
  • Feature: Has convenient on/off switch on magnet mounting
