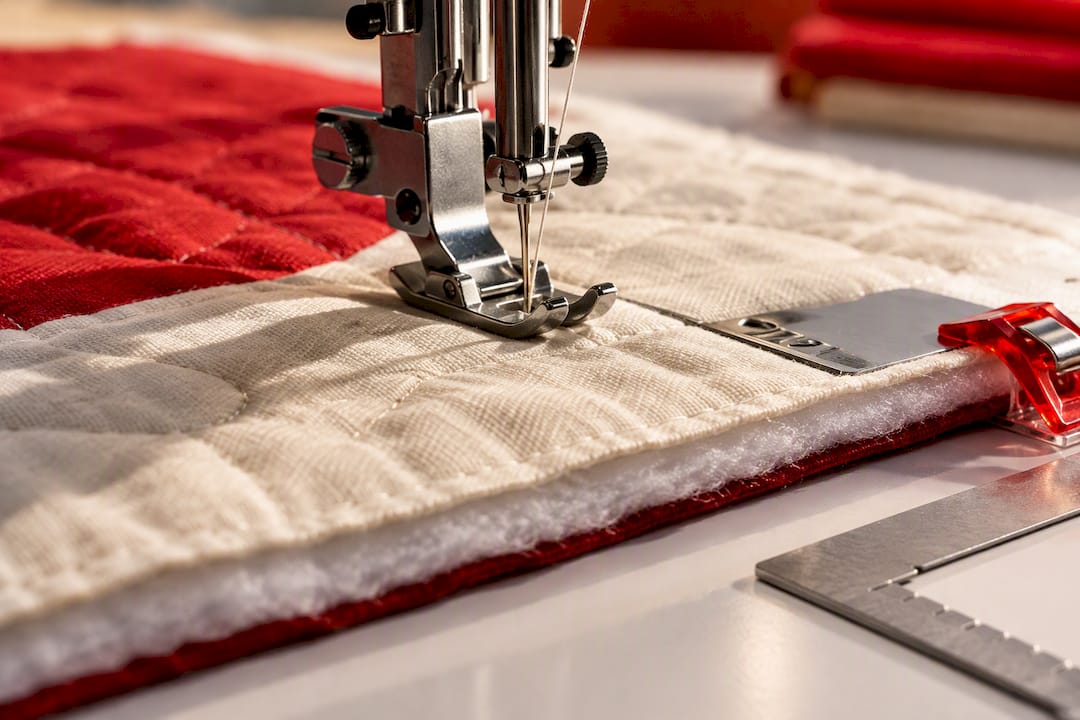

A walking foot evens out the feed of your fabric layers so nothing shifts, bunches, or puckers while you sew, which makes it one of the most reliable tools for quilting and multi-layer projects. Its upper feed dogs work in sync with your machine’s lower feed dogs, a mechanism manufacturer guidance backs up directly. Later sections walk you through setup, stitch length, and troubleshooting, with parts and support available from retailers when you need them.
TL;DR:
- A walking foot is most beneficial for even feeding during quilting, sewing multiple layers, matching patterns, and working with slippery or bulky fabrics.
- It uses a built-in upper feed mechanism that synchronizes fabric movement, preventing shifting, puckering, or pattern misalignment.
- Proper setup involves attaching it correctly, adjusting stitch length to around 3.0 millimeters, and testing on a scrap sandwich for optimal results.
- It is unsuitable for free-motion quilting, sharp curves, or single-layer seams, which require different techniques or standard presser feet.
- Built-in dual-feed systems offer similar performance but may be less effective on very slippery or thick fabrics, making aftermarket walking feet a valuable option.
What makes a walking foot worth the switch
The biggest advantage of a walking foot comes down to synchronized feeding. Your machine’s regular presser foot only holds fabric down from above while the lower feed dogs pull it through from below, and that gap between top and bottom layers is exactly where shifting starts. A walking foot adds a second set of feed dogs on top, moving your fabric layers at the same rate as the ones underneath. The result is stitching that stays even from start to finish, even across large quilts.
You’ll notice the difference most clearly on projects where layers used to fight each other:
- Quilt sandwiches: batting, backing, and top all move together instead of the top layer creeping ahead.
- Topstitching over multiple layers: waistbands, collars, and hems keep their shape instead of puckering.
- Plaids and stripes: patterns stay aligned across seams because both layers travel at the same speed.
- Minky, velvet, and corduroy: napped fabrics that normally creep or shift settle down and feed evenly.
- Bulky seam intersections: thick cross-seams in patchwork feed through without skipped stitches or foot bounce.
Manufacturer documentation for Bernina’s walking foot recommends a longer stitch length, generally in the 3.0 to 3.5 millimeter range, when quilting with the foot attached.
A longer stitch length isn’t a cosmetic choice. Bernina’s own #50 walking foot manual recommends this range specifically because shorter stitches combined with the foot’s own feeding action can crowd fabric and cause tunneling on thicker sandwiches.
Slippery fabrics deserve their own mention. Satin, some knits, and other fabrics with a shiny or slick face tend to slide under a standard foot no matter how carefully you pin them. A walking foot’s upper feed mechanism grips the top layer with the same motion driving the bottom, which keeps both layers moving together instead of one sliding ahead of the other.
If you’re piecing a quarter-inch seam and want a built-in guide, an edge stitching foot with a guide can complement your walking foot setup for topstitching tasks that need a consistent margin.
When to use a walking foot and when to skip it
A walking foot earns its place in your sewing box for specific jobs, but it isn’t the right tool for everything. Knowing the difference saves you time and frustration.
Best uses:
- Straight-line quilting across a pieced top and batting sandwich.
- Binding attachment, where consistent layer control matters at the edges.
- Bag-making and other structured projects with foam or heavy interfacing.
- Slippery or stretchy fabrics that shift under a standard foot.
- Matching plaids, stripes, or patterns across a seam.
Where it falls short:
- Free-motion quilting requires you to control stitch direction yourself with the feed dogs dropped, which defeats the purpose of a walking foot’s synchronized feed.
- Sharp curves are harder to maneuver because the foot’s bulk and feeding action resist quick turns.
- Everyday single-layer seams rarely need the extra mechanism, and a standard foot handles them just as well with less setup.
A walking foot also won’t rescue a badly basted quilt sandwich. If your pins are spaced too far apart or your basting spray missed a section, you can still get puckers even with the foot attached, a point quilting instructors raise often enough that it’s worth testing your basting before you blame the foot. You may also need to loosen top tension slightly once the walking foot is on, since the added feeding pressure can change how your stitches balance.
Before starting a new project, ask yourself three questions: Are you sewing multiple layers or a single layer? Is the fabric slippery, napped, or patterned? Will you need to quilt in straight lines or curves? If the answers point to multiple layers, tricky fabric, and straight or gently curved stitching, the walking foot belongs on your machine.
How the synchronized feed actually works
Underneath every sewing machine sit feed dogs, the small toothed bars that move up through the throat plate and pull fabric along with each stitch. On a standard setup, only those lower feed dogs are doing the work, while the presser foot simply holds fabric flat from above.
A walking foot changes that balance by adding its own feed dogs on top, driven by a fork that hooks over the needle clamp screw and moves with the needle bar. As the needle rises and falls, that motion also drives the foot’s upper feed dogs forward in step with the lower ones. Both layers get pulled through together instead of separately.
- Lower feed dogs move the bottom layer, as they always have.
- Upper feed dogs on the walking foot move the top layer at the same rate.
- The fork mechanism ties both motions to the needle bar’s up-and-down cycle, keeping them synchronized.
That synchronization is the entire point. On a standard foot, the top layer has nothing actively pulling it forward, so it relies on friction and the pressure of the foot itself. Thicker or slicker fabrics slip under that pressure, and the top layer starts to creep ahead of or behind the bottom one. Over a long seam, that creep compounds into visible puckering or a stitching line that drifts off course. With both layers moving at matched speed, that drift doesn’t have room to start.
Setting up your walking foot correctly
Getting reliable results starts with the install, and most walking feet attach the same basic way regardless of brand.
- Raise the needle and presser foot, then remove your current presser foot entirely.
- Hook the walking foot’s fork over the needle clamp screw before lowering the foot into place, following standard installation guidance.
- Check your shank type, since walking feet come in snap-on, low-shank, high-shank, and machine-specific mounts, and the wrong style simply won’t seat correctly.
- Set your stitch to straight or running stitch and lengthen it to roughly 2.5 to 3.5 millimeters, with 3.0 millimeters a common starting point for quilting.
- Confirm your feed dogs are raised, since a walking foot depends on both feed systems working together.
- Check stitch width limits on your machine’s settings, since a stitch that’s too wide can cause the needle to strike the foot’s body.
- Test on a scrap sandwich matching your project’s layers and thickness before sewing the real thing.
Our walking-foot quilting setup guide walks through these steps with more detail if you want a second reference while you set up.
Once the foot is on, guide your fabric rather than pushing or pulling it. The whole mechanism exists to move fabric for you, and fighting it tends to create the exact puckering you’re trying to avoid. Watch your needle clearance when you reverse stitch, too, since some walking feet handle reverse motion differently than forward sewing.
Pro Tip: Sew your test sandwich at a slow to medium speed first. A walking foot’s feeding action shows its flaws fastest when you rush, so slower stitching during setup makes tension and length issues easier to spot.
Tips from the sewing room: avoiding common mistakes
A walking foot solves a lot of problems, but good basting still does most of the heavy lifting. Pin every 4 to 6 inches for pieced quilts, or use basting spray for larger projects where pins would slow you down. Either method keeps layers from shifting before the foot ever gets involved.
- Puckering on the back: usually points to stitch length that’s too short, tension that’s too tight, or basting that missed a section.
- Bulky seam intersections: sew slowly through cross-seams and consider pressing seams open beforehand to reduce thickness.
- Long quilts: keep your hands about 6 inches from the foot and let excess fabric drape off the table instead of pulling on the sandwich, a technique experienced quilters rely on for large projects.
- Persistent puckering: run a few tests varying stitch length and slightly loosening top tension before you assume the foot is at fault.
Pro Tip: If puckering shows up only on thick cross-seams, try walking the foot over the intersection by hand-turning the flywheel for a stitch or two, then let the machine take over once you’re past the bulk.
Built-in dual-feed versus an aftermarket walking foot
Some machines come with a built-in dual-feed system, often marketed under names like AcuFeed or IDT, that does the same job as an aftermarket walking foot without the extra attachment. These systems tend to run quieter and feel smoother since the feeding mechanism is integrated into the machine’s design rather than bolted onto a presser foot.
- Built-in dual-feed offers convenience and a lower profile, since there’s nothing to attach or remove.
- Aftermarket walking feet work across a wider range of machines and often provide stronger grip on especially slippery or bulky fabrics.
- Cost favors built-in systems if you’re already buying a machine that includes one, while aftermarket feet are a smaller standalone purchase.
If your machine has dual-feed, use it first. If it doesn’t, or if you find yourself needing more aggressive grip than the built-in system provides, an aftermarket walking foot fills that gap without requiring a new machine.
How Sewing Machines Plus can help you get set up
Finding the right walking foot for your machine shouldn’t take hours of searching. Sewing Machines Plus carries compatible presser feet and accessories across snap-on, low-shank, and high-shank styles, and our team offers personalized consultations if you’re not sure which fit works with your model. Orders over $49 ship free, and our price match guarantee means you’re not overpaying to get the right tool. Browse our full accessories selection or reach out for fit help before you buy.
Sources
- Tips for machine quilting with a walking foot — Diary of a Quilter
- How to use a walking foot for quilting — Sewing Machine Advice
- How to use a walking foot — National Sewing Circle (video transcript)
FAQ
When should you not use a walking foot?
A walking foot isn’t the right choice for free-motion quilting, since that technique requires dropped feed dogs and hand-guided stitching. It’s also less practical on sharp curves, where the foot’s bulk makes quick turns difficult, and it offers little benefit on simple single-layer seams.
What stitch length works best with a walking foot?
Most guidance points to a range of 2.5 to 3.5 millimeters, with 3.0 millimeters a common starting point for quilting. A longer stitch reduces the chance of fabric tunneling or bunching under the foot’s added feeding pressure.
What is the difference between a walking foot and a quilting foot?
A walking foot has its own upper feed dogs that move fabric in sync with the machine’s lower feed dogs, which is ideal for straight-line stitching through multiple layers. A standard quilting foot, often used for free-motion work, has no feeding mechanism of its own and relies on you moving the fabric by hand.
Which part of your foot should touch the ground first when walking?
This question refers to human gait rather than sewing equipment, and it falls outside what this article covers. For walking-foot sewing questions, the setup and troubleshooting sections above address the mechanics you’ll actually use at the machine.
Do I need a walking foot if my machine has built-in dual-feed?
If your machine includes a built-in dual-feed system, it already performs the same synchronized feeding job as an aftermarket walking foot. You’d only need an additional walking foot if you want stronger grip on particularly slippery or bulky fabrics than the built-in system provides.
