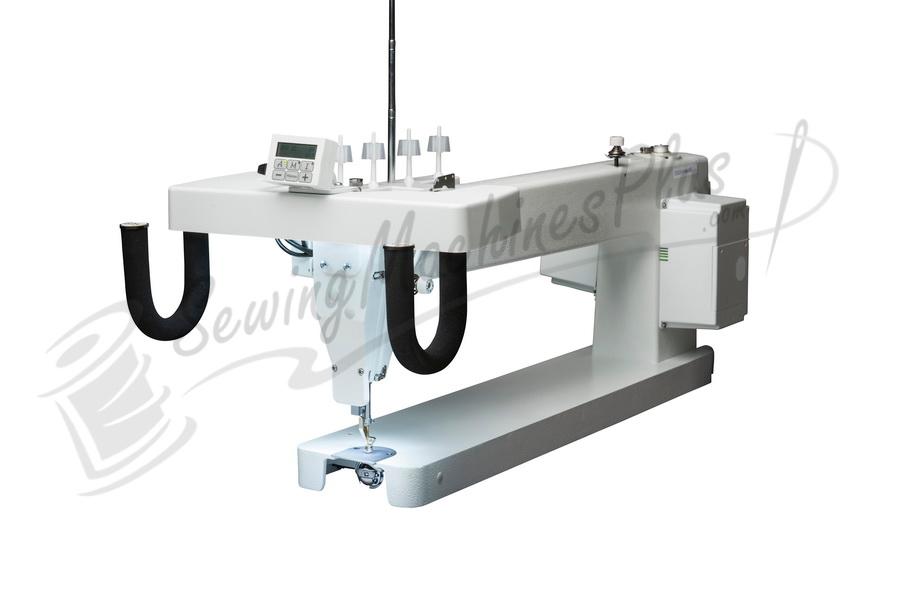

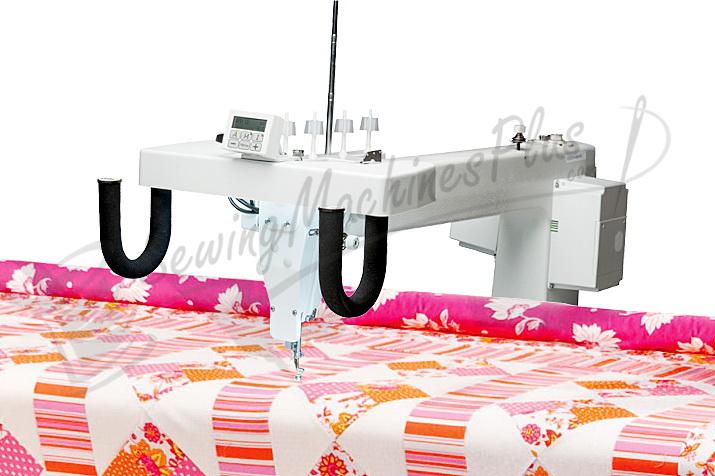

Artistic 26-8 Long Arm Quilting Machine w/ C-Frame

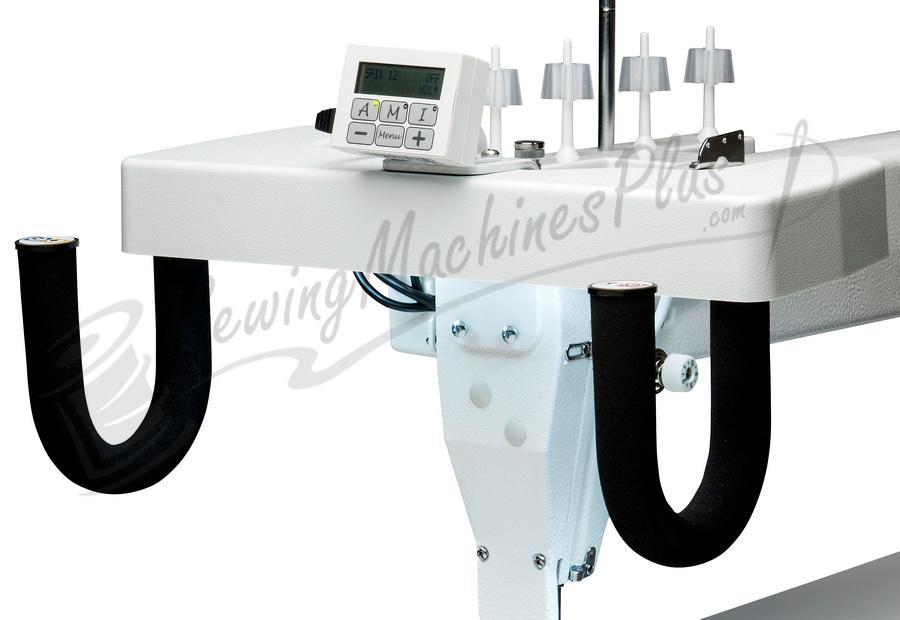

Ergonomic Controls

New "Ram's Horn" Ergonomic handlebar with controls easily reachable.

Large Bobbin Capacity

Quilt longer between bobbin changes. The extra large bobbin makes this possible.

Locking Cable Connectors

Cables easily snap into place and lock.

Many New Stitches

• Constant Stitch: You control the stitch length manually
• Stitch regulates 4 to 22 stitches per inch

Needle Positioning

1. Needle up: Parks needle up after stitching
2. Needle Down: Parks needle down after stitching
3. Half Stitch: Up to Down, and Down to Up
4. Full Stitch up: Takes a full stitch and ends with needle up
5. Full Stitch Down: Takes a full stitch and ends with needle down

More Features

New LED Lighting

Adjustable brightness White Light.

Convenient Rear Handles

Rear LCD Handlebar for pantographing from the rear of the machine.

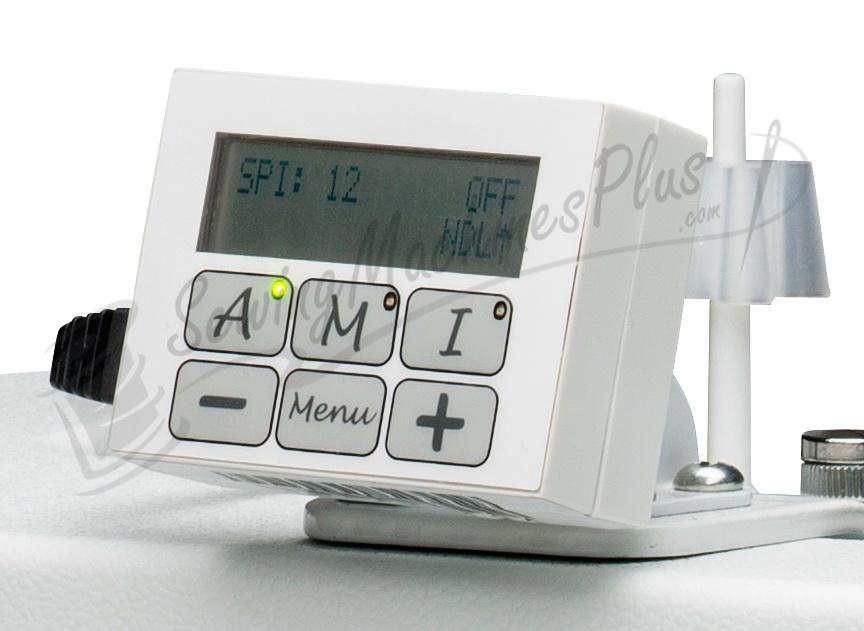

LCD Screen with Easy Touch keys

The screen and controls are built in to the head of the machine making it quick and easy to make your selections.

New UV LED Lighting

New UV LED Lighting: Adjustable brightness Blacklight lights for quilting "White on White".

Auto Needle Position

You can set the machine stop with the needle up or down. This minimizes bending or breaking needles and allows for free movement of machine.

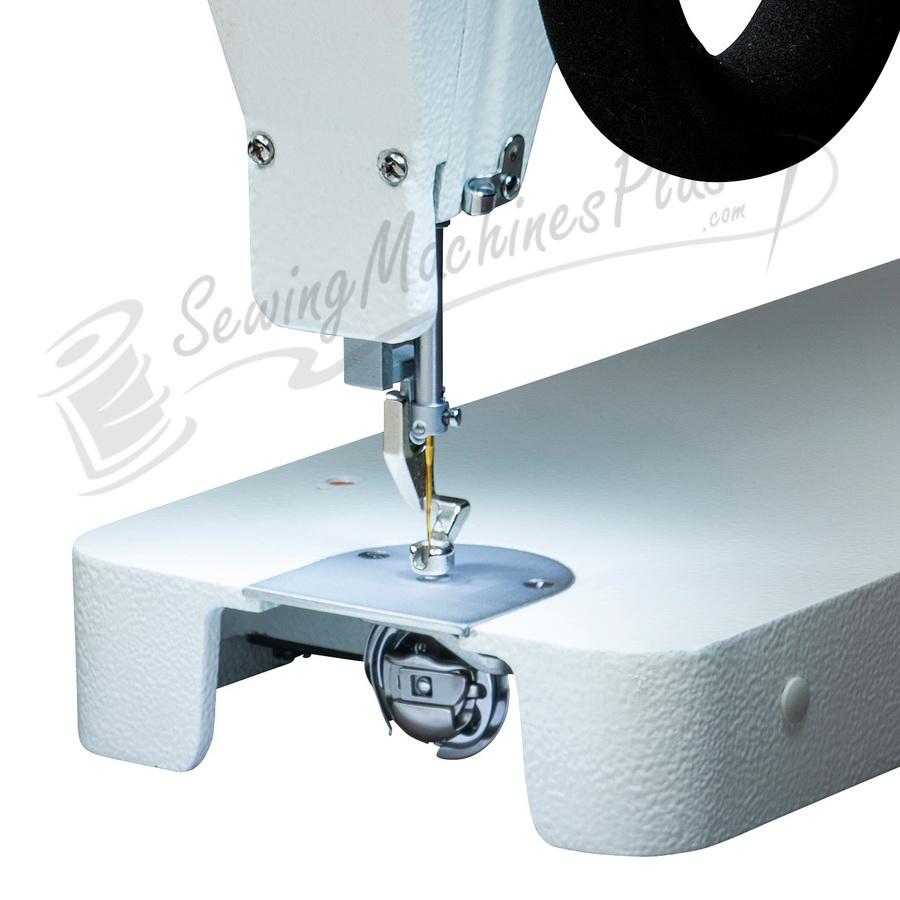

Built-In Bobbin Winder With Large Bobbin

The Top of the Line 26" Quilting Machine has a built-in bobbin winder. It winds while you quilt so your next bobbin is always full and ready. It also features the largest available bobbin: M-size.

Flexible Lamp

Light where you need it! This flexible lamp bends close for micro stippling and adjusts to the back for pantographs.

Oil Reservoir

Little maintenance is needed. The oil is self-contained. No need to worry about oil on your quilts and no oiling the hook with every bobbin change.

Downloads

Replacement Instructions

Five Stitch Regulated Modes

1. Equate Stitch: Needle Stops when you stop moving the machine
2. Cruise Stitch: Needle keeps moving when you stop moving the machine
3. Basting Stitch: Large 4 stitches per inch
4. Ruler Stitch: Machine waits for you to move ruler and does not time-out
5. Robot Stitch: Gives control of the machine over to a Robot
6. Quilt Motion Robot Stitch: Gives control to Grace's Quilt Motion Robot

Additional Information

• Optional Adjustable Laser Light
• One-Button Operation
• Adjustable Walk Hopping Foot
• Variable Speed Control
• Two-Station Needle Positioner w/Single Stitch
• Throat Space: 26-inch
• Actual Quilting Area: 23 inches
• Velcro Attaching Cloth Leaders
• Flexible Light Fixture
• Specially Designed Vertical Wheel
• Gear Driven Shaft Power Transfer
• Cast Aluminum Molded Sewing Head
• Double-Capacity "M" Style Bobbin
• Dual Thread Capability
• Built-in Bobbin Winder
• Hook Position Finger
• Automatic Hook Lubrication
• Centralized Lubrication System
• 3 Heavy-Duty top shaft bearings and bushings
• Oil Impregnated Bushings
• Bungee Clamps
• Operator's Manual
• Machine Weight: 52 lbs

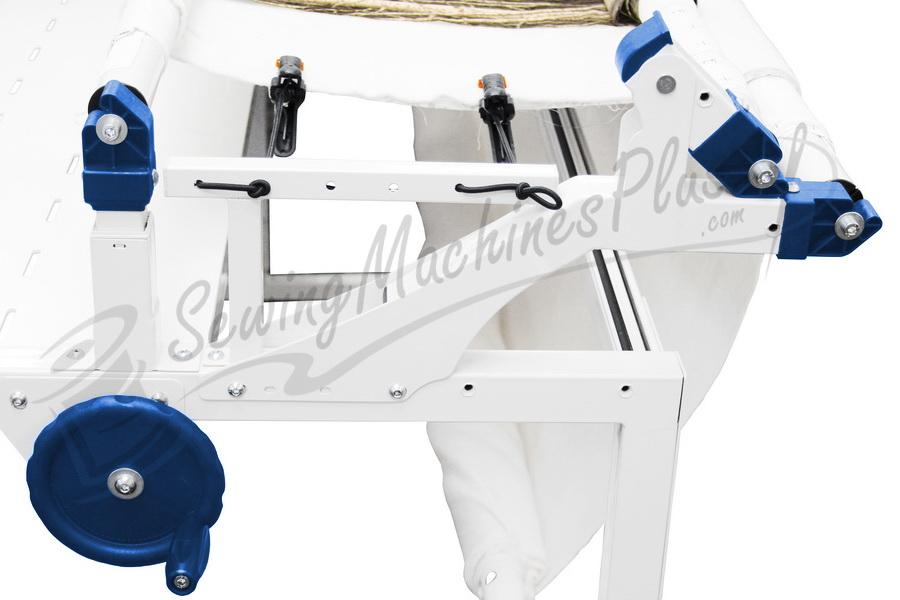

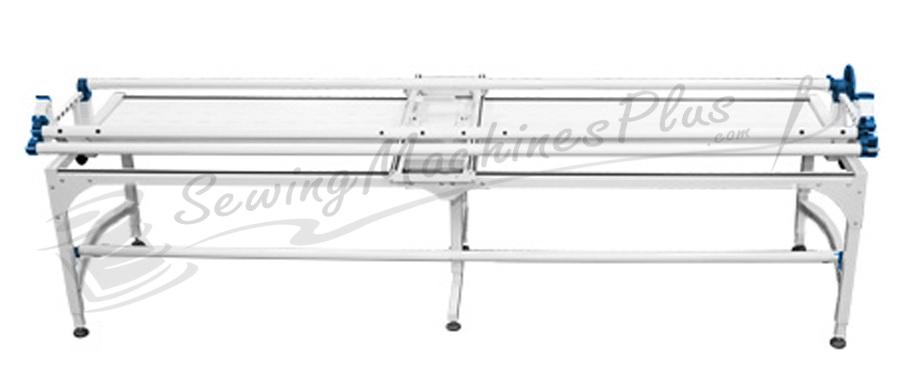

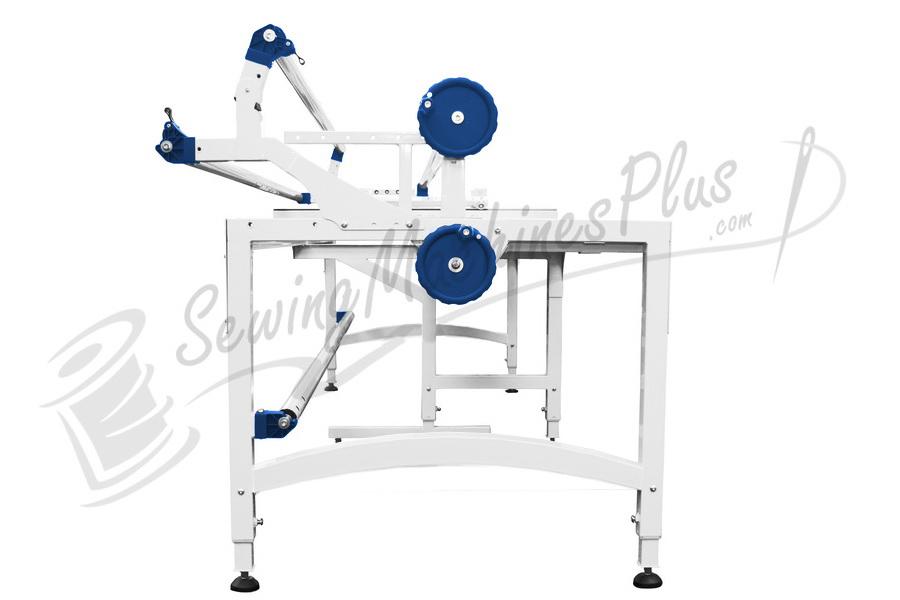

Features and Benefits

• Height adjustable legs
• Accurate quick-release ratchets to help to precisely tension fabric
• Pivoting top fabric rail to allow access to batting
• Adjustable dual-bearing wheels on front and back tracks increases the stability and accuracy
• Easy turn wheels for adjustment

Download

C-Frame Instructions
