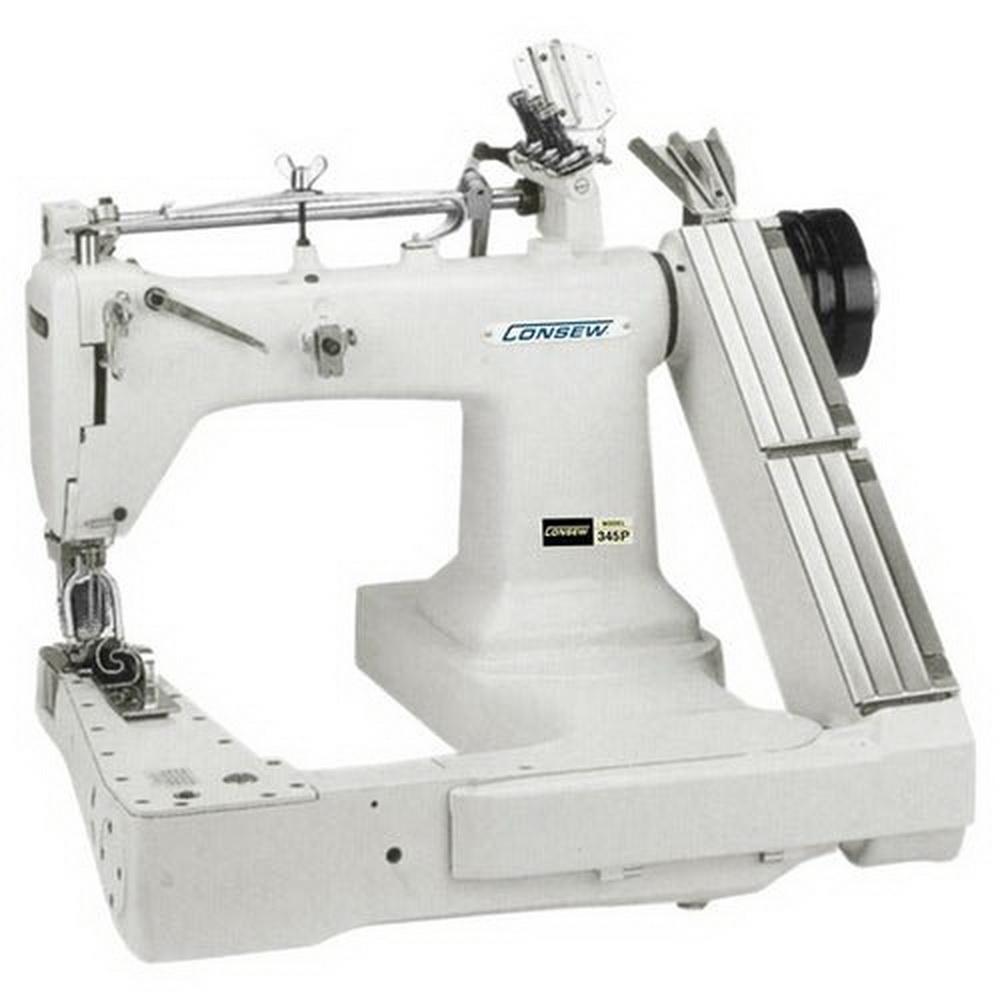

Consew 345-3 High Speed, Feed-Off-The-Arm Type, Drop Feed, Double Chainstitch, Lap Seam Felling Machine, 3 Needles

Consew 345-3 High-Speed 3-Needle Feed-Off-The-Arm Double Chainstitch Lap Seam Felling Machine

The Consew 345-3 is a high-speed, three-needle, feed-off-the-arm industrial sewing machine designed for double chainstitch lap seam felling operations. Featuring a drop feed mechanism and specialized cylinder arm construction, this machine is suitable for sewing light to heavy-weight materials and producing durable, consistent seams.

Equipped with fully automatic lubrication, a chain cutter, screw-adjustable stitch regulator, and a presser foot lifting mechanism, the Consew 345-3 is designed for efficient industrial garment manufacturing. Its narrow cylinder arm makes it particularly suitable for sewing tubular garments, jeans, workwear, and other products requiring lap seam felling in difficult-to-reach areas.

With a maximum sewing speed of 3,600 stitches per minute, the Consew 345-3 provides reliable performance for high-volume industrial sewing applications.

Applications

• Sewing light to heavy-weight fabrics and industrial textile materials.
• Manufacturing shirts, sleepwear, jeans, pants, and skirts.
• Producing industrial uniforms, workwear, and heavy-duty overalls.
• Stitching raincoats and other outerwear garments.
• Performing lap seam felling operations on garment panels and fabric sections.
• Sewing difficult-to-handle tubular garments and narrow fabric openings.
• Creating parallel chainstitch seams for apparel manufacturing.
• Industrial garment production requiring consistent, high-speed stitching.

Ideal for: Denim manufacturers, garment factories, workwear producers, uniform manufacturers, apparel workshops, and industrial sewing operations requiring a specialized feed-off-the-arm lap seam felling machine.

Key Features

• Three-Needle Chainstitch System: Produces three parallel rows of Type 401 double chainstitch sewing for industrial lap seam felling applications.
• Feed-Off-The-Arm Design: Features a specialized cylinder arm construction that allows tubular garments and fabric sections to move through the machine during sewing.
• Lap Seam Felling Capability: Designed for creating consistent lap-felled seams on jeans, workwear, uniforms, and other garments.
• High-Speed Operation: Supports sewing speeds of up to 3,600 stitches per minute for efficient industrial production.
• Drop Feed Mechanism: Provides material feeding through the machine's lower feed system during sewing operations.
• Fully Automatic Lubrication: Features an automatic lubrication system designed to supply oil to the machine's operating components.
• Chain Cutter: Includes a chain cutter for cutting the thread chain after completing sewing operations.
• Narrow Cylinder Arm: Allows lap seam felling on narrow openings and difficult-to-sew tubular products.
• Adjustable Presser Foot Lift: The presser bar can be raised using a knee lifter or foot pedal for convenient material handling.
• Screw-Adjustable Stitch Regulator: Allows operators to adjust stitch length according to material and sewing requirements.
• Adjustable Stitch Length: Supports stitch lengths up to approximately 4.2 mm, equivalent to 6 stitches per inch.
• Compact Cylinder Diameter: Features a 1-23/32" (53.5 mm) cylinder diameter at the needle bar for specialized tubular sewing operations.

Stitching Capabilities

The Consew 345-3 produces Type 401 double chainstitches using a three-needle configuration. Its feed-off-the-arm design allows operators to create consistent lap-felled seams on tubular garments and other products where conventional flat bed sewing machines may provide limited access.

• Stitch Type: 401 Double Chainstitch
• Number of Needles: 3 (Three)
• Feeding System: Drop Feed
• Maximum Stitch Length: 4.2 mm
• Maximum Sewing Speed: 3,600 Stitches Per Minute
• Presser Foot Clearance: 5/16" (8 mm)
• Seam Type: Lap Seam Felling

The narrow cylinder arm is particularly useful when stitching tubular products such as denim trouser legs, workwear, and other garments requiring accurate parallel stitching.

Note: Maximum sewing speed depends on the thread, material, machine setup, and sewing application.

Technical Specifications

Feed-Off-The-Arm Design

The Consew 345-3 features a specialized feed-off-the-arm cylinder construction designed for lap seam felling operations on tubular garments and other difficult-to-sew products.

This configuration allows the material to move along the cylinder arm during stitching, making it suitable for sewing trouser legs, workwear, and garment sections that require consistent parallel seams.

• Specialized feed-off-the-arm sewing configuration
• Designed for three-needle lap seam felling operations
• Suitable for tubular and narrow garment openings
• Supports consistent parallel chainstitch seams
• Designed for industrial apparel manufacturing

Important Notes

• The Consew 345-3 is a three-needle, Type 401 double chainstitch machine.
• It is designed for lap seam felling and feed-off-the-arm sewing applications.
• Maximum sewing speed depends on the material, thread, machine setup, and operating conditions.
• The machine features an automatic lubrication system, but oil levels and routine maintenance must still be checked.
• The presser bar can be lifted using a knee lifter or foot pedal.
• The Consew 345-3P is a separate model equipped with a cloth puller. A puller is not specified for the standard 345-3.
• Compatible attachments and specialized accessories may require separate purchase.
• Table and motor inclusion are not specified in this product's supplied package details.
