GO! Arrowhead-9" Finished Die

The stunning block created using this die is a classic that’s anything but boring. Dive right into creating bold and modern designs using this die that’s sure to hit the mark for quilters of any skill level with ease.

AQ Cutting Mat Required: GO! Cutting Mat, 6 in. x 24 in. (15.2 cm x 61 cm)

Compatible with the following cutters:

GO! ME

GO!

GO! Big Electric

How to Die Cut 2-Color Arrowhead Blocks:

For best cutting results, position fabric on the lengthwise grain (straight of grain) as it goes under the roller. Tip: The die is specially designed to cut one complete 2-color 9" finished block in one pass through the cutter.

• Fabric Color 1:
  • Cut one 4 1/2" x 2 1/2" rectangle. Place right side up over shapes A to cut two shapes.
  • Cut one 8 1/2" x 3 3/4" rectangle. Place right side up over shapes B to cut two shapes.
  • Cut two 5 7/8" x 4 1/2" rectangles. (Do not fanfold.) Place right side up over shapes C to cut four shapes.
• Fabric Color 2:
  • Cut one 4 1/2" x 2 1/2" rectangle. Place right side up over shapes A to cut two shapes.
  • Cut one 8 1/2" x 3 3/4" rectangle. Place right side up over shapes B to cut two shapes.
  • Cut two 5 7/8" x 4 1/2" rectangles. (Do not fanfold.) Place right side up over shapes C to cut four shapes.

Block Assembly Instructions

Dimensions:

• Cut Size: Shape A Square: 2"W x 2"H (5.1 cm x 5.1 cm), Shape B Quarter Square Triangle: 5 1/4"W x 2 7/8"H (13.3 cm x 7.3 cm), Shape C Chisel: 5 3/8"W x 2"H (13.7 cm x 5.1 cm).
• Finished Size: 9" Finished Block (22.9 cm).
• Die Board Size: 6 in. x 24 in. (15.2 cm x 61 cm)

Why Quilters Love the GO! Arrowhead Die:

• The Arrowhead Quilt Block features angular designs that resemble the pointed tips of arrows, creating a dynamic and visually striking pattern. Its clean lines and strong shapes make the Arrowhead Quilt Block a favorite for modern quilters seeking a bold and contemporary look.
• Arrowhead is a Block on Board® (BOB®) die which means it’s specially designed to cut a 2-color, 9" block in one pass through the cutter.
• No Y seams! Arrowhead includes 6 shapes that are time-consuming and difficult to cut by hand.
• Arrowhead features specialized dog-ears and ¼" seam allowances for easy alignment and piecing.
• Arrowhead includes screen printed letters on die for easier piecing and organization of shapes.
• Free pattern downloads and step-by-step block assembly instructions are available to get you started.
• Fat Quarter-friendly
• Do you EQ? If you have Electric Quilt ® software, you can use it to create your own Arrowhead designs from their block library and cut your fabric.

---

AccuQuilt Benefits:

• Cut so much more fabric in less time.
• Get accurate cuts every time -- No slipping rulers or mistakes

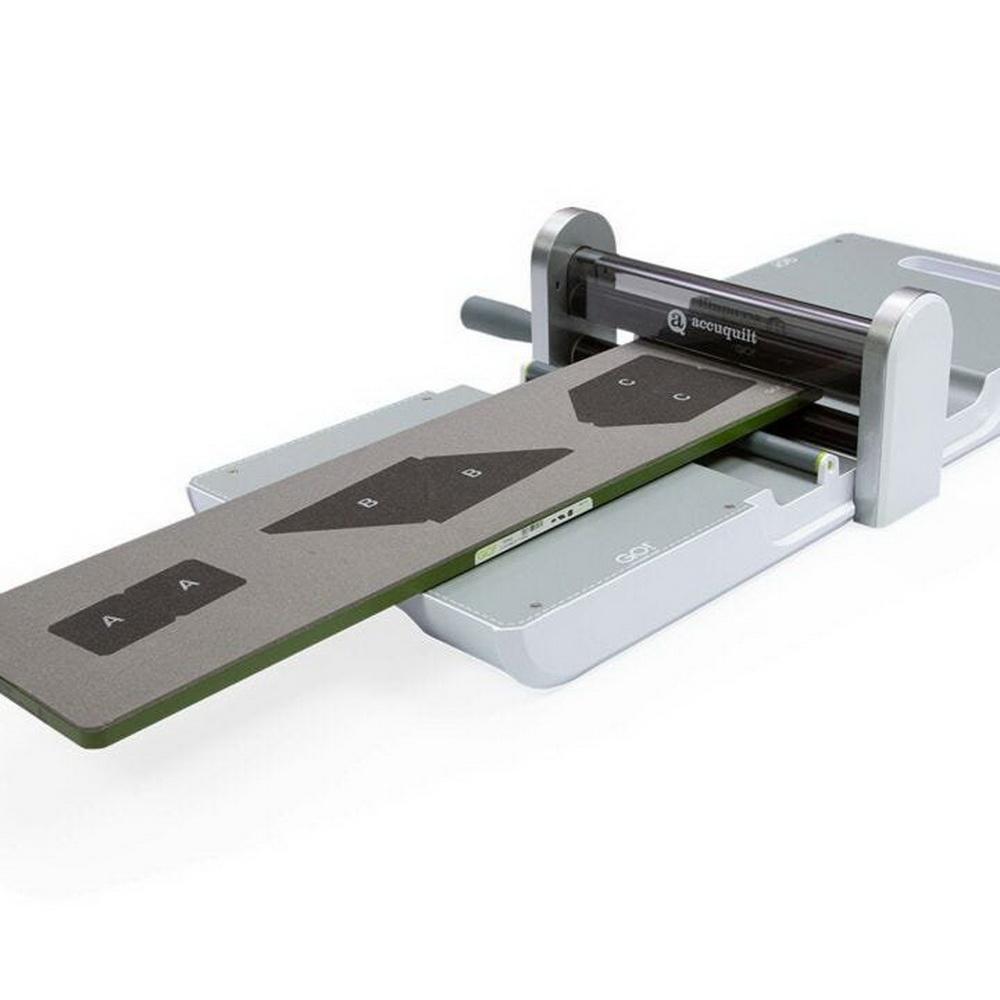

• Easiest to use -- Simply place die on cutter, then fabric and cutting mat on top
• Save fabric with Two Tone Foam -- Get more out of your fabric by placing it only over the shape you want to cut.
• Safe to use -- No blades come anywhere near your fingers

---

Die Tips:

• With some fabrics, after cutting, a thread or two will remain where die blades meet. Snip threads with scissors.
• Blades on some dies are positioned at an angle. Align fabric to edge of shape, not edge of die board.
• Use good quality fabric to reduce fabric stretch.
• It's always a good idea to test cut one shape before cutting many shapes to ensure fabric orientation is correct.
