IQ INTUITION POSITIONING®

This innovative app allows you to take a photo of your fabric in a special hoop and wirelessly transfer it to your machine. The image will display onscreen in lifelike color and high resolution, allowing you to position your design exactly where you want it, how you want it, every time.

IQ DESIGNER

Create your own designs with ease! You can draw on the screen, scan your favorite artwork, upload an existing file using a USB drive, or wirelessly send artwork to your machine. Your art will instantly convert for embroidery!

2-POINT POSITIONING

Use the 2-point positioning function, with needle beam, to preview the position of your embroidery design, then adjust the position and angle for precise placement.

NEEDLE BEAM

Know exactly where your needle will drop with a brilliant LED pointer, included on the embroidery foot.

WI-FI ENABLED

Wi-Fi enabled for optional download of update files, apps, and design transfer with Design Database Transfer or Palette 11 (optional purchase).

QUILTING AROUND AN EMBROIDERY PATTERN

Add stippling, echo quilting, or any of the 48 Decorative Fill patterns from IQ Designer around a selected design. Line spacing, distance, and frame size are easily adjustable.

DESELECT REGION

Deselect regions of a design to preview and stitch with fewer colors.

LARGE 11.25” WORKSPACE

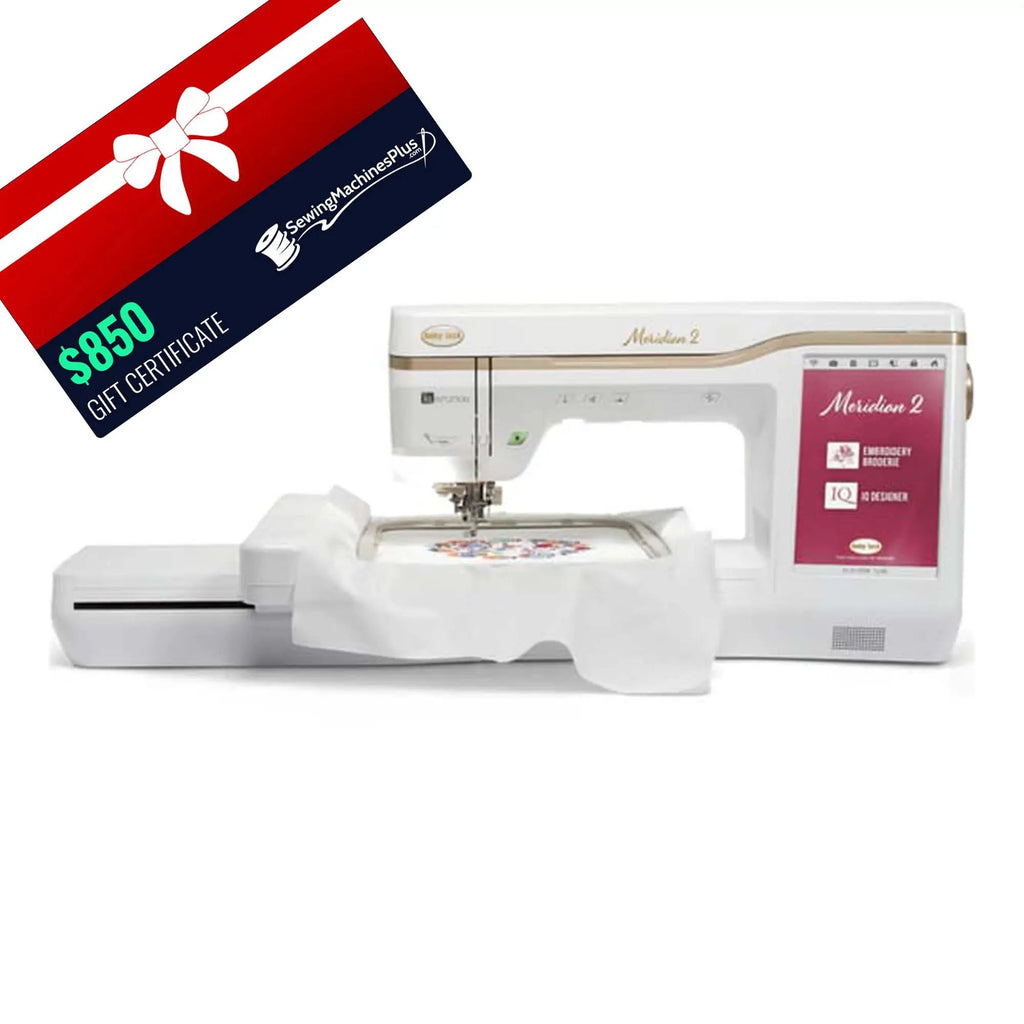

With a generous 11.25" workspace to the right of the needle, Meridian 2 gives you ample room to work.

FILL COUCHING ALPHABET

Stitch dimensional couched letters, characters, and designs.

9.5" X 14" EMBROIDERY FIELD

Stitch bigger embroidery designs and enjoy less re-hooping with a large embroidery field.

10.1" LCD SCREEN

Gain better control over your stitches, embroidery designs, placement, colors, and more on a large touchscreen. Comparable to many popular tablets, it features large, clear buttons and vivid colors.

COLOR VISUALIZER

Choose from random, vivid, gradient, and soft colors, and watch as your design transforms in an array of color combinations. Tag your favorite combinations, then select your favorite from the finalists.

534 BUILT-IN EMBROIDERY DESIGNS

You’ll have a collection of designs to embroider at your fingertips with Meridian 2’s vast selection of built-in designs that include 200 exclusive designs from Baby Lock. The library features large thumbnail images to make finding the perfect match easy.

QUICK-SET DROP-IN BOBBIN

Simply drop your bobbin in the machine, pull your threads through the slot, and let Meridian 2 do the rest.

Machine Features:

• Embroidery foot with LED pointer
• Soft canvas cover
• Bobbin center pin
• Embroidery bobbin thread
• Bobbins (10)
• Embroidery positioning stickers (4 sheets of 64)
• Lens calibration sheet for use with the positioning app
• Needle set
• Spool caps (5)
• Spool felt and spool nets (2)
• Embroidery needle plate cover
• Q Intuition® embroidery hoops and grids included:
  • 9.5” x 14” (240mm x 360mm)

Convenience Features:

• 11.25" workspace to the right of the needle
• Quick-Set top-loading bobbin with sensor
• Quick-Set independent bobbin winding system with variable speed
• Automatic thread cutter with on/off capability
• Auto presser foot lift
• NeverMiss™ Automatic Advanced Needle Threading System

Specifications:

• MACHINE WEIGHT ONLY - 33.1 lbs
• DATA INPUT TYPES - .pes, .phc, .pec, .dst
• NUMBER OF HOOPS INCLUDED - 2
• BUILT-IN FONTS - 30
• WEIGHT WITH EMBROIDERY UNIT - 43.2 lbs
• FRAME PATTERNS - 140
• ON-SCREEN EDITING - Yes
• NUMBER OF NEEDLES - 1
• ROTATION CAPABILITY - Yes
• BUILT-IN DESIGNS - 494
• EMBROIDERY PATTERN MEMORY - Yes
• TOTAL NUMBER OF USB PORTS - 2
• MAXIMUM EMBROIDERY FIELD SIZE - 9.5" X 14"
• COMBINE DESIGNS - Yes
• EMBROIDERY SPEED - 1,050 SPM
• NUMBER OF USB TYPE A PORTS - 2

Warranty:

• 25-year limited
• 10-year parts
• 5-year computer circuit
• 5-year electrical
• 1-year labor

Included Accessories:

• Embroidery foot “W+” with LED pointer
• Embroidery couching foot “Y”
• Yarn guide for embroidery couching
• Yarn threader
• Needle set: 75/11 6 needles
• Bobbin × 10
• Seam ripper
• Scissors
• Cleaning brush
• Screwdriver (small)
• Screwdriver (large)
• Disc-shaped screwdriver
• Spool cap (small)
• Spool cap (medium) × 2
• Spool cap (large)
• Thread spool insert (mini king thread spool)
• Vertical spool pin
• Spool felt (on machine)
• Spool net × 2
• Embroidery needle plate cover
• Touch pen (stylus)
• Bobbin case (on machine)
• Bobbin cover (on machine)
• Embroidery frame with decal set 14 in (H) × 9.5 in (W)
• Embroidery frame with decal set 7 in (H) × 5 in (W)
• Embroidery positioning sticker sheets × 4
• Lens calibration sheet
• Embroidery bobbin thread (#90, white)
• Stabilizer materia
• Bobbin center pin and instruction sheet
• Accessory bag
• Soft cover
• Power cord
• Instruction and Reference Guide
• Quick Reference Guide
