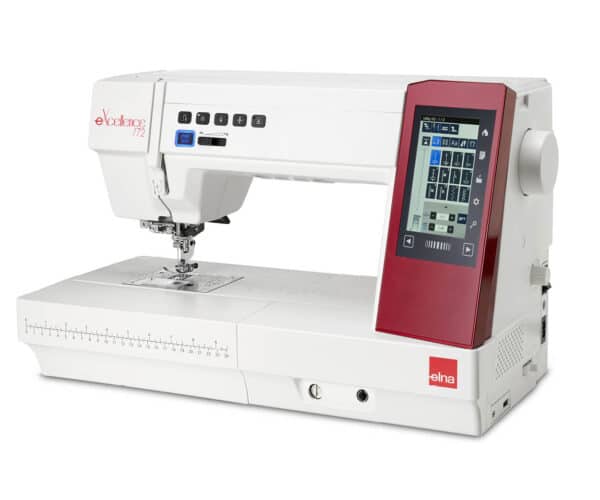

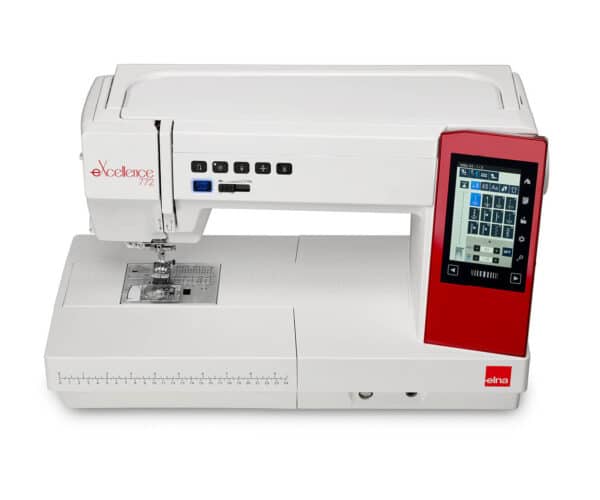

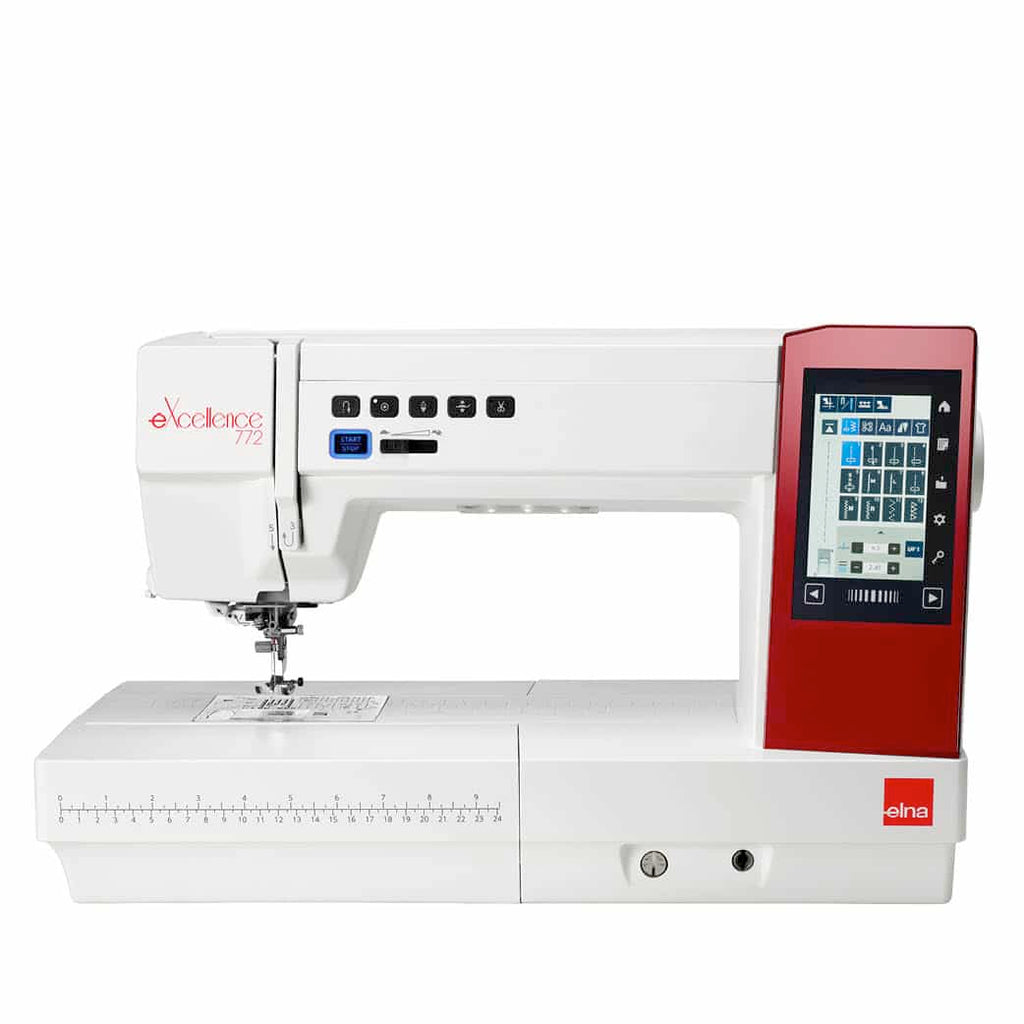

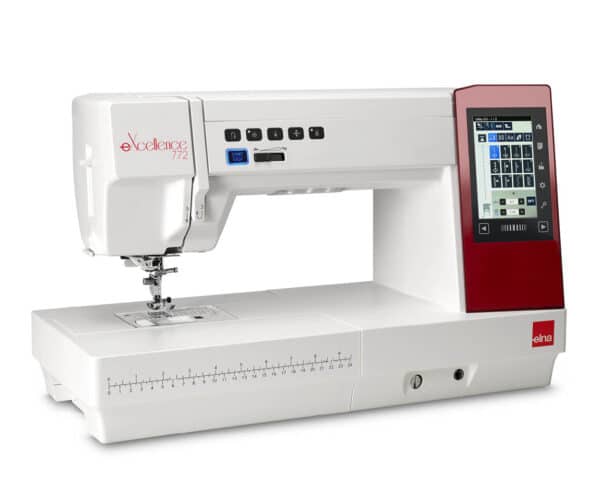

The new name for sewing perfection. The elna eXcellence 772 unites the comfort of an extra-large work space, a host of exceptional functions and perfection of stitching. Explore unlimited possibilities!
- 300 stitch patterns, including alphabet in 3 fonts
- 9 mm stitch width
- 10 automatic and 1 sensor buttonholes
- Maximum sewing speed adjustable up to 1060 stitches/min.
- Long arm and extra-large sewing space (280 x 120 mm)

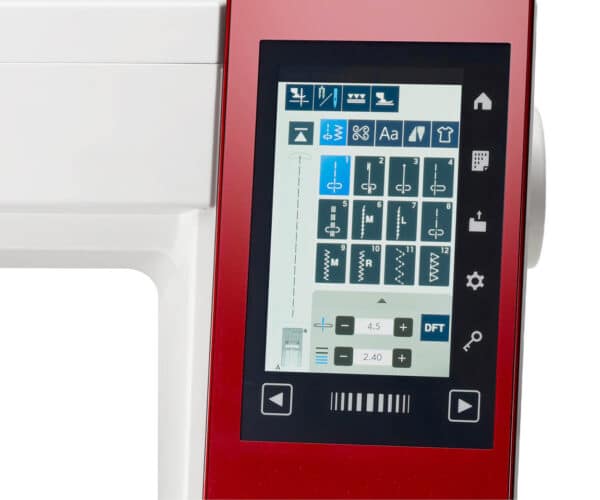

- 5 inch color HD touch screen
- Dual Feed Plus System for wide and narrow feet (optional accessories)
- Automatic thread tension control
- Automatic foot pressure adjustment with fabric sensor
- Automatic presser foot lifter
- Automatic and programmable thread cutter
- Easy Pivoting function
- 9 LED lights in 4 areas
- 3 MB built-in memory and 1 USB port
| eXcellence 772 | ||
| TECHNICAL | ||
| Machine size | 535 x 326 x 243 mm | |
| Machine weight | 13.5 kg | |
| Free arm | Extra-long free arm (150 mm) | |
| Sewing space | 280 x 120 mm | |
| Screen type | Color HD touch screen | |
| Screen size | 5″ (W 64.8 x H 108 mm) | |
| Rotary hook | Horizontal with clear bobbin cover | |
| Spool pin | Horizontal | |
| Bobbin winder | Auto declutch | |
| Bobbin threader | Easy and guided system with built-in thread cutter | |
| Needle threader | Built-in Smart System | |
| Upper thread sensor | x | |
| Bobbin thread sensor | x | |
| Feed dog | 7-piece / Retractable | |
| Drop feed sensor | x | |
| Dual Feed Plus System | Removable / For wide and narrow presser feet (feet optional accessories) | |
| Thread tension control | Automatic | |
| Presser foot pressure adjustment | Automatic with fabric sensor | |
| Extra-high presser foot position | x | |
| Presser foot | Clip-on easy conversion system | |

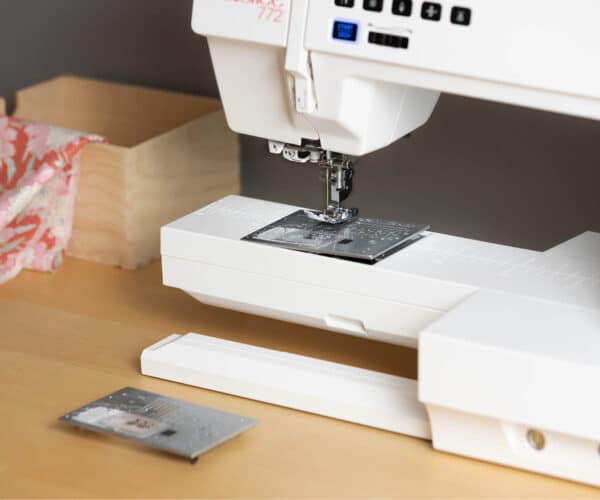

| Needle plate | One-step conversion system | |
| Knee lifter | Optional item | |
| Lighting | 9 high-illuminance LED lights in 4 areas | |
| Stitch reference chart | Top cover | |

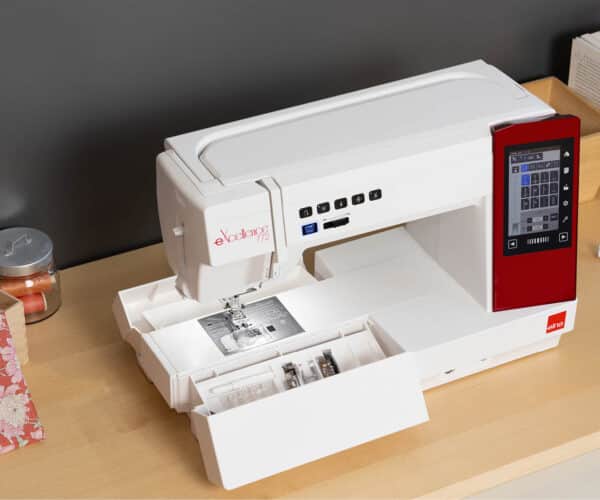

| Accessory storage | 3 built-in compartments | |
| USB port | 1 | |

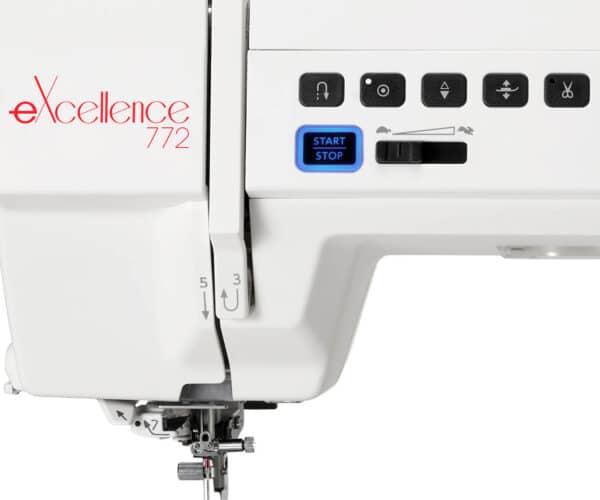

| FUNCTION BUTTONS | ||
| Start / Stop | x | |
| Reverse sewing | x | |
| Automatic lock stitch | x | |
| Up / Down needle position | With memory function | |
| Automatic presser foot lifter | x | |
| Automatic and programmable thread cutter | x | |
| Speed control slider | x | |
| Stitch selection | Touch panel | |
| SEWING | ||
| Number of stitches | 300 | |
| Maximum stitch width | 9 mm | |
| Maximum stitch length | 5 mm | |
| Maximum sewing speed | 1060 stiches/min. | |
| One-step buttonholes | 10 automatic + 1 sensor | |
| Alphabets | 3 | |
| Typefaces | 3 | |
| Capital letters and numbers available in 9 mm | x | |
| Built-in memory | 3 MB | |
| Pattern combinations | Including up to 100 stitches | |
| Favourite Stitch function to customize and save stitch settings | x | |
| Easy pivoting function | x | |
| Tapering function | x | |
| Variable zigzag (knee lifter control) | x | |
| Ruler work function | x | |
| Stitch Composer stitch creation software | x | |
| Variable needle positions |
91 |
|
Â
Â
Standard accessories
- Standard foot A
- Rolled hem foot D
- Zipper foot E
- Satin stitch foot F
- Open-toe satin stitch foot F2
- Blind hem foot G
- Overlock foot M
- ¼” seam foot O
- Closed-toe darning foot PD-H
- Free-motion quilting closed-toe foot QC
- Free-motion quilting open-toe foot QO
- Free-motion quilting zigzag foot QV
- Ruler work foot QR
- Automatic buttonhole foot R with stabilizer plate
- Button sewing foot T
- Straight stitch needle plate
- Circular sewing pivot pin
- Quilting guide bar
- Button shank plate
- Bobbins
- Seam ripper
- Needle set
- Lint brush
- Spool holder small x2
- Spool holder large x2
- Spool holder special x2
- Additional spool pin
- Screwdriver small
- Touch panel stylus
- Standard foot controller
- Stitch Composer stitch creation software
