SKU : GC20528-B
Highlead
🏆 50+ Year Authorized Dealer | 60-Day Money Back Guarantee
Price Match — We Beat Any Price
Free Shipping on Orders Over $49 | Over 1 Million Happy Customers!
Pickup currently not available
Returns: General returns are not accepted on this item.

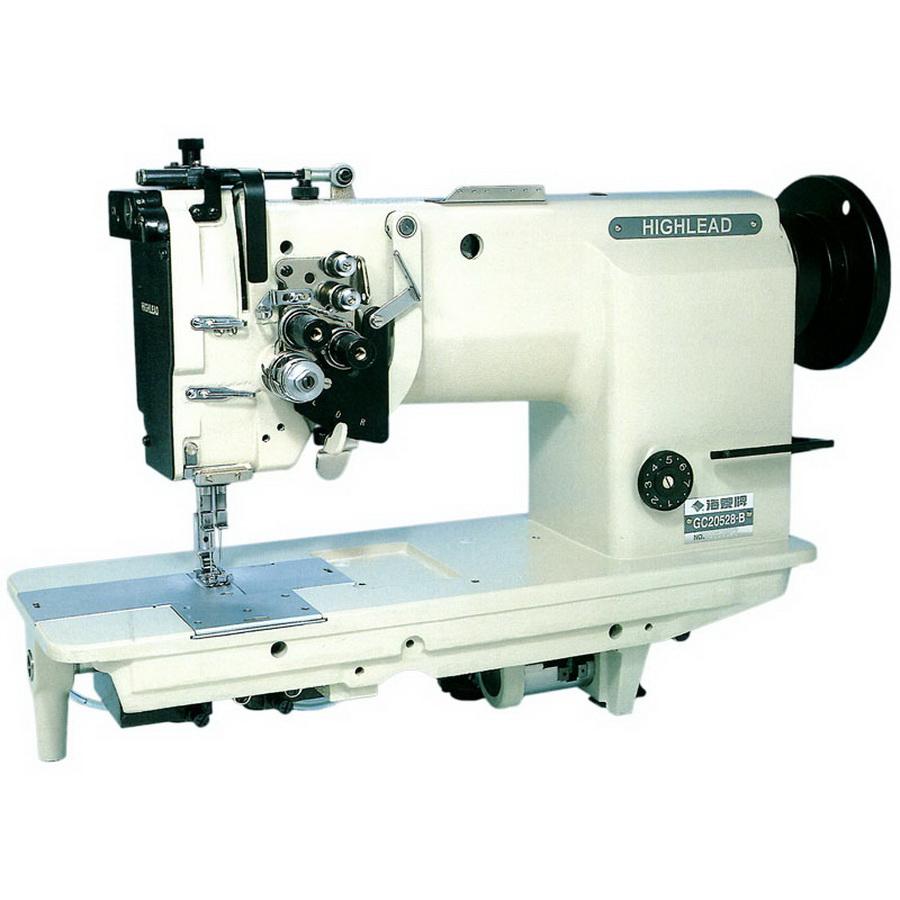

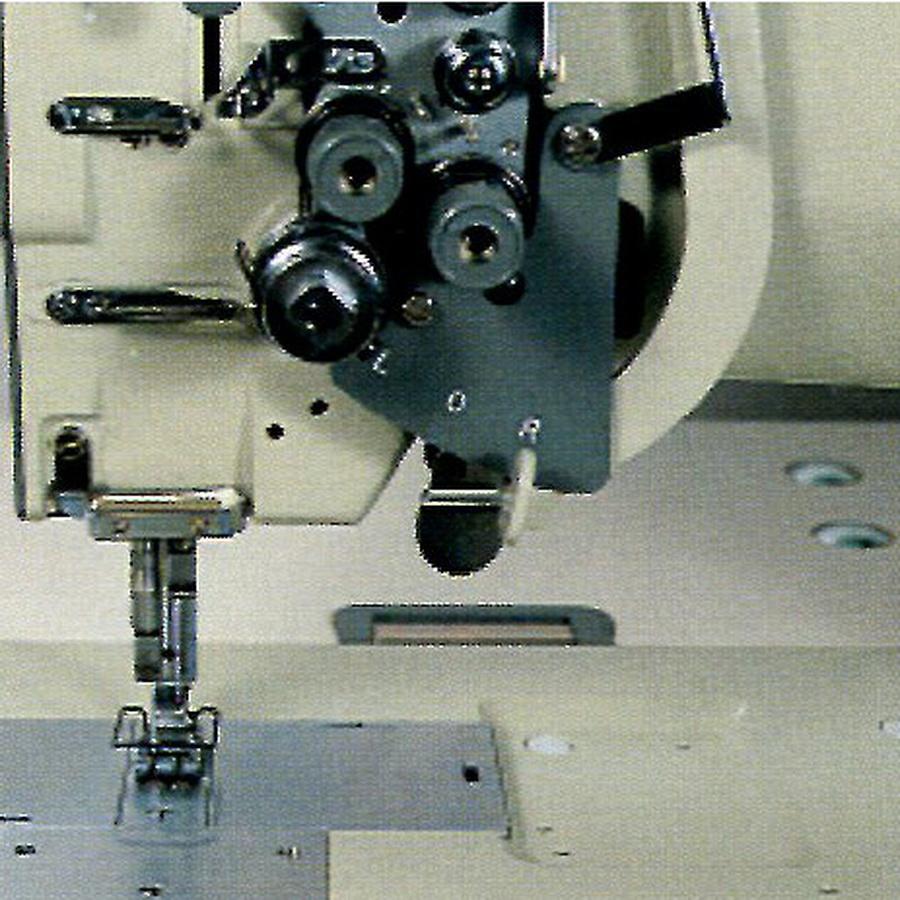

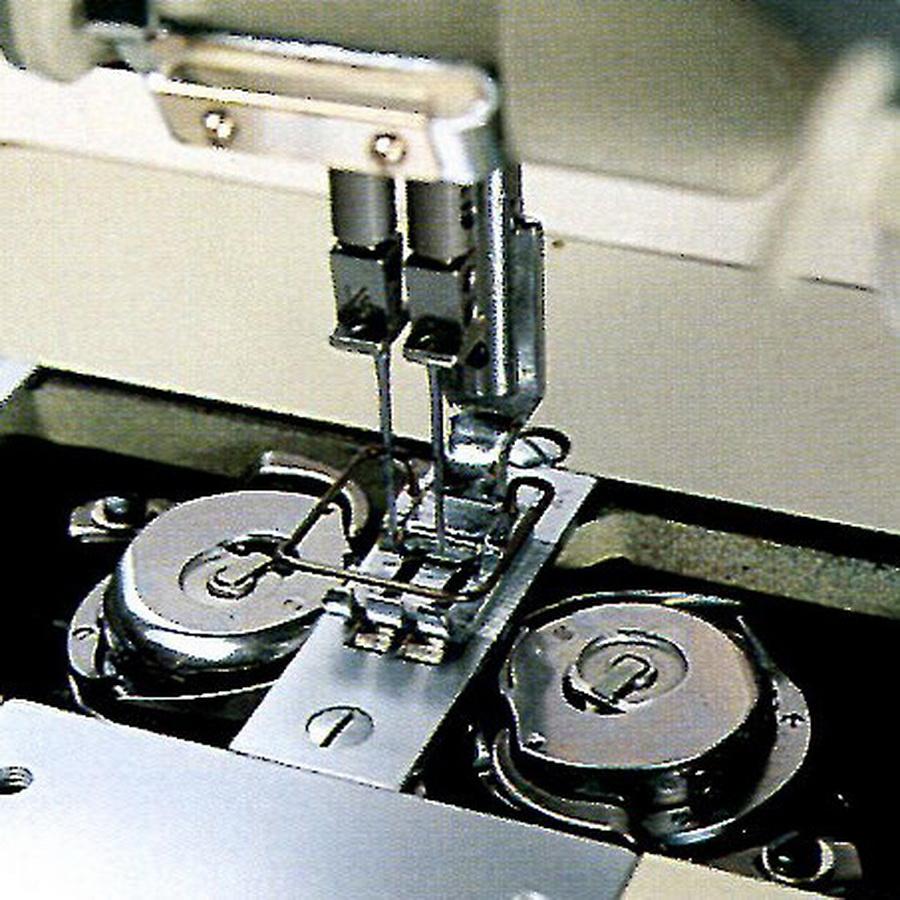

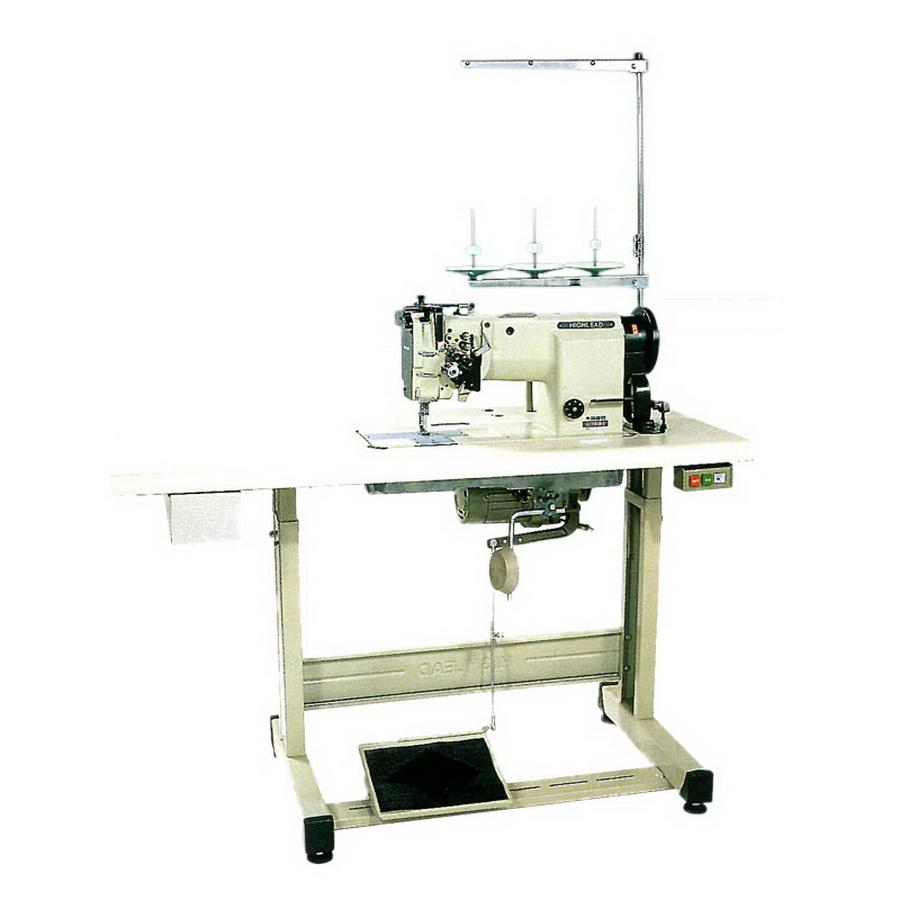

This is a split needle bar machine built on the GC20518 platform that is available in standard size (model GC20528-M) and large capacity hooks (model GC20528-B). It uses two vertical axis rotating hooks and a sliding bar take up to produce two lines of double lock stitch. Automatic lubrication in combination with the drive belt and plumber pump mechanism ensure smooth and quiet operation. The arm shaft and hook shaft are supported by ball bearings. A knob type stitch regulator and lever type reverse feeding mechanism make the machine easy to operate. The split needle bar can be engaged or disengaged mechanically. A bobbin thread pull back spring in the bobbin case guarantees the synchronization of the needle thread and bobbin thread creating seamless stitching. It can be used to produce overalls, jeans, uniforms and for decorative sewing on bags.
For those seeking additional functions and increased productivity model numbers GC20528-M-D and GC20528-B-D are available as undertrimming machines.
| Model | Application | Max Sewing Speed | Stitch length | Needle bar stroke | Presser foot lift By Hand | Presser foot lift By Knee | Needle Size | Rotating Hook | Lubrication | Auto Trimmer | Motor | Needle Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GC20528-B | Medium heavy weight | 3000 rpm | 0 - 7 mm | 33.4 mm | 7 mm | 13 mm | DB x 5 18#-22# | Large hook with bobbin thread pull-back | Auto lubricated | N/A | 370W Clutch motor | Standard 6.4 mm special 3.2 4 4.8 5.6 8 9.5 12.7 15.8 19 mm |
| GC20528-B-D | Medium heavy weight | 3000 rpm | 0 - 7 mm | 33.4 mm | 7 mm | 13 mm | DB x 5 18#-22# | Large hook with bobbin thread pull-back (thread trimming) | Auto lubricated | Yes | Speed Adjustment Motor | Standard 6.4 mm special 3.2 4 4.8 5.6 8 9.5 12.7 15.8 19 mm |
Compare models and choose your model in the dropdown below the add to cart.
