Product Information

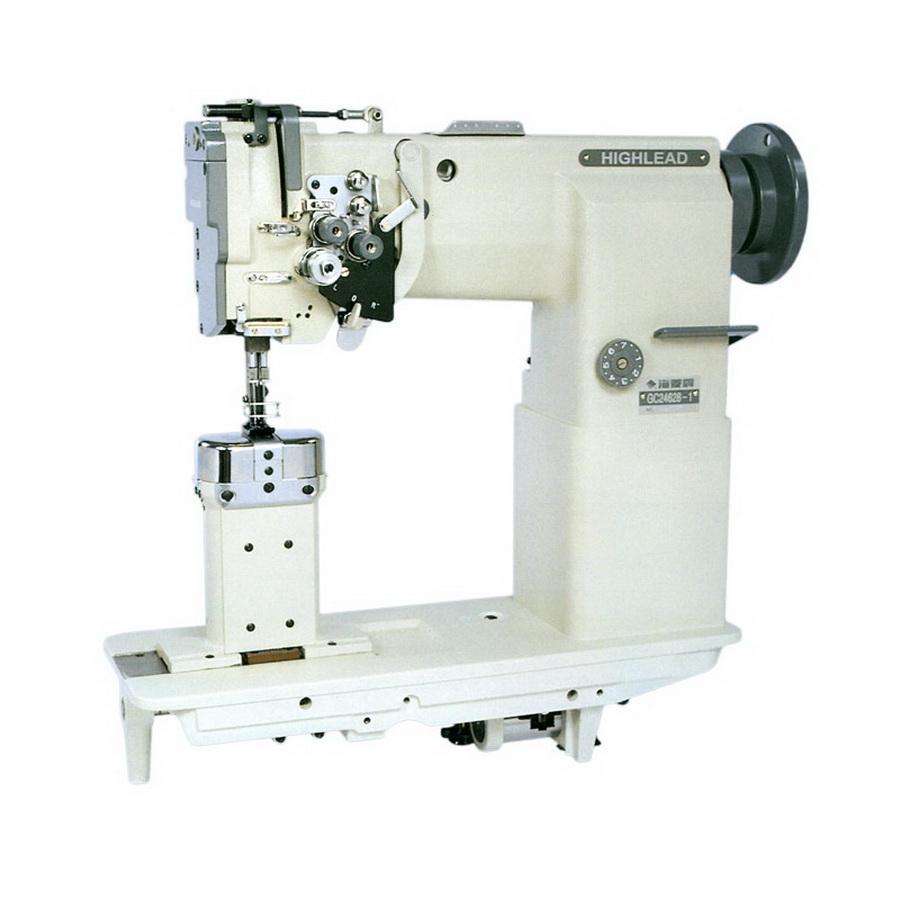

Highlead GC24628 Series Industrial Sewing Machines with Assembled Table and Motor
Two Needle Post Bed Compound Feed Split Needle Bar Lockstitch Sewing Machine
This machine is a new product of High lead brand post bed two needle lockstitch sewing machine series, which is designed with post bed, compound feeding mechanism and split needle bar mechanism. The two needles can be engaged or disengaged for convenient corner stitching and clear stitches, especially available for stitching on surface with radius. With compound feeding mechanism, it is available for stitching multi-layer material of heavy weight, such as leather, foam plastics, synthetic fabric, etc and can avoid any displacement. It is a high class equipment for stitching car seats, fabric decorations in cars, shoe uppers of leather or synthetic leather, sports apparatus, office furniture, soft cushion, trunk, bag, etc.
Model GC24628-1
Two needle post bed complund feed split needle bar lockstitch sewing machine
Model GC24628-25
Long arm two needle post bed compound feed split needle bar lockstitch sewing machine
Specifications and Model Comparison
| Category | GC24628-1 | GC24628-25 |
|---|---|---|
| Max Sewing Speed | 2000 rpm | 1600 rpm |
| Stitch length | 0 - 7 mm | 0 - 7 mm |
| Needle bar stroke | 33.4 mm | 33.4 mm |
| Presser foot lift | By hand: 7mm; By knee: 13 mm | Pneumatic foot lifting 13 mm |
| Reverse feeding device | By hand | Pneumatic |
| Needle Size | DP x 17 23# | DP x 17 23# |
| Needle Gauge | 8mm (Standard) 4.8 6.4 9.5 12.7mm (Special) | 8mm (Standard) 4.8 6.4 9.5 12.7mm (Special) |
| Highness of post-bed | 178 mm | 178 mm |
| Rotating hook | Auto lubricated large hook | Auto lubricated large hook |
| Lubrication | Semi-auto lubricated | Semi-auto lubricated |
| Motor | 370W Clutch motor 1400 r.p.m. | 220V 550W Servo motor |
| Working space | 250 mm x 280 mm/9.84 in. x 11.02 in. | 635 mm x 280 mm/25 in. x 11.02 in. |
Compare models and choose your model in the dropdown below the add to cart.

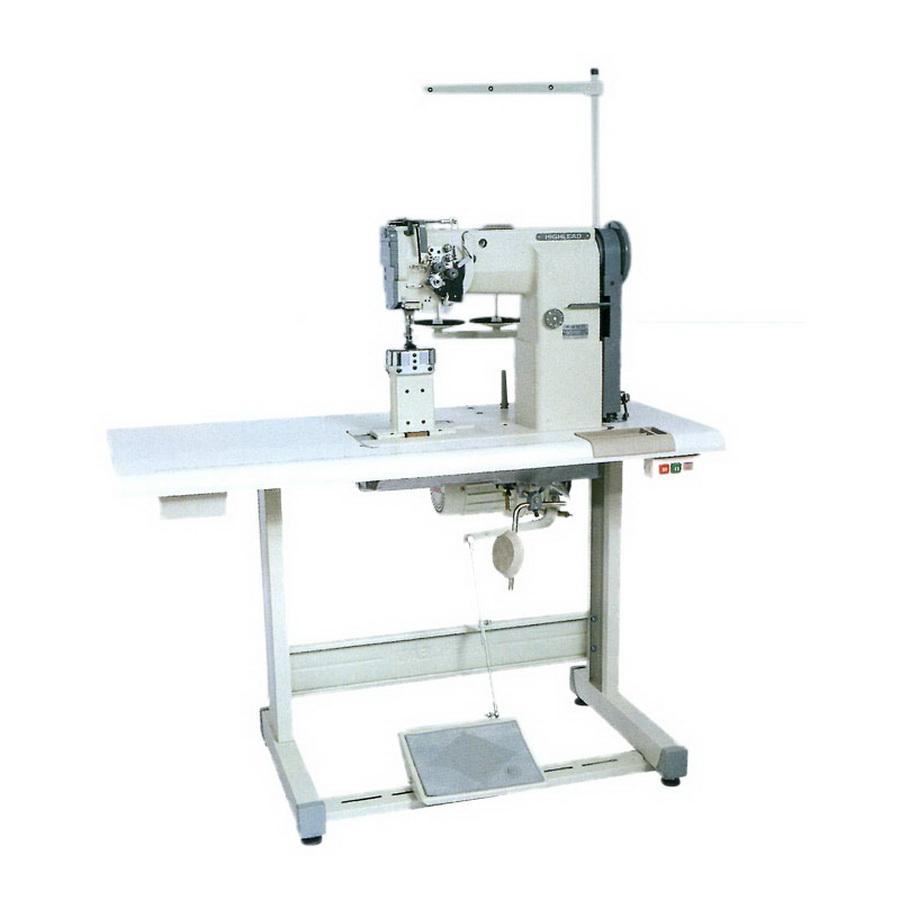

This machine comes with a table and motor assembled.
