Highlead GK500 Series Industrial Sewing Machines with Assembled Table and Servo Motor
SKU : GK500
Highlead
Sale price
$2,199.00
Regular price
$2,475.00
Free Shipping | 60-Day Returns* | Price Match Guarantee
Pickup currently not available
Item ships from another facility. Expedited shipping is not available.
Freight shipping charges will apply on this item.
Condition:
Brand New
Returns: General returns are not accepted on this item.
Product Information
Highlead GK500 Series Industrial Sewing Machines with Assembled Table and Motor
High Speed Three-Needle Interlock Chainstitcher

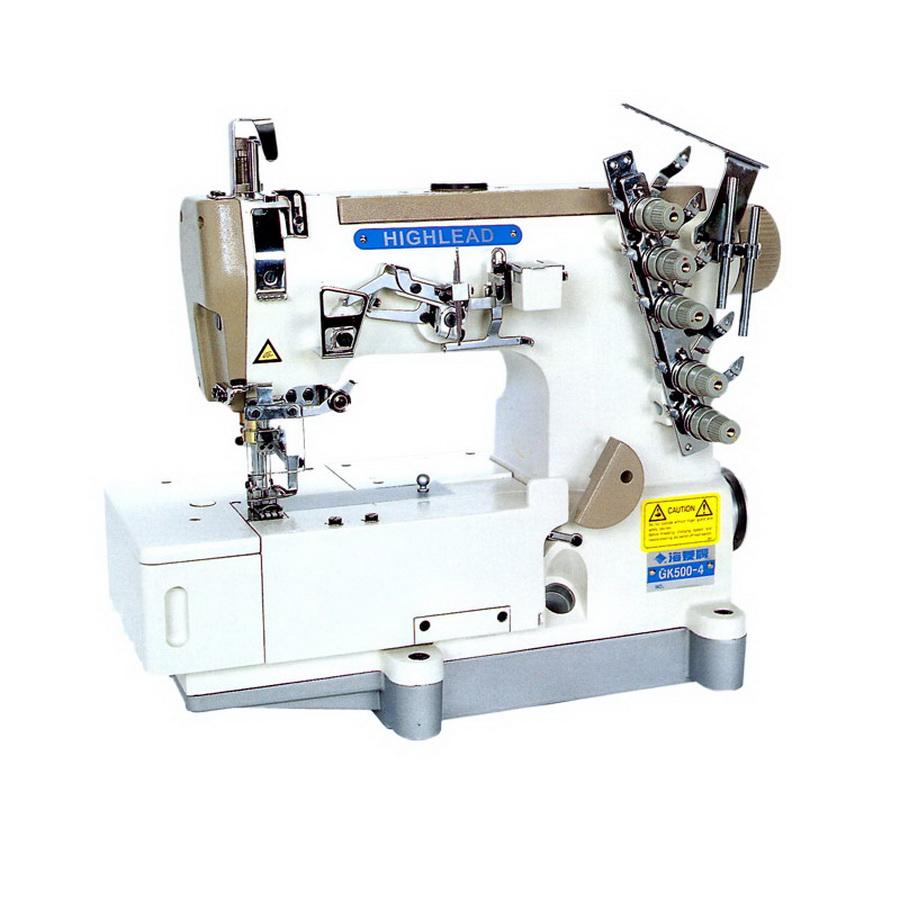

Model GK500-4 is Highlead's newest style 3 needle 5 thread differential feed flat bed top and bottom cover stitch machine. The machine is very smooth and quiet running being automatically lubricated by a fully sealed gear pump that circulates oil throughout the machine and its moving parts. Needle bearings and timing belts are used in critical driving positions. Easy adjustment of the bottom differential feeding system, an easy to use knob type stitch regulator and easy machine threading are but a few of the machines many features. It is used in the production of a variety of knit goods such as underwear, sportswear, T shirts and polo shirts and is capable of covering seams as well as being used as a decorative stitch on the above mentioned and similar articles.
GK500-4:
Three needle flat bed top and bottom cover stitch
GK500-401:
Three needle top and bottom cover stitch for binding operations
GK500-4D:
Three needle flat bed top and bottom cover stitch UBT
Specifications and Model Comparison
| Category | GK500-4 | GK500-401 | GK500-4D |
|---|---|---|---|
| Max Sewing Speed | 6000 rpm | 6000 rpm | 6000 rpm |
| Stitch length | 4.4 mm | 4.4 mm | 4.4 mm |
| Number of needle | 3 | 3 | 3 |
| Number of thread | 5 | 5 | 5 |
| Presser foot lift | 5.5 mm | 5.5 mm | 5.5 mm |
| Needle gauge | 5.5 6.4 | 5.5 6.4 | 5.5 6.4 |
| Needle Size | UY 128GAS 9#-10# | UY 128GAS 9#-10# | UY 128GAS 9#-10# |
| Motor | 370W Clutch motor | 370W Clutch motor | 220V 550W Servo motor |
| Differential | 0.5 – 1.3 | 0.5 – 1.3 | 0.5 – 1.3 |
Compare models and choose your model in the dropdown below the add to cart.

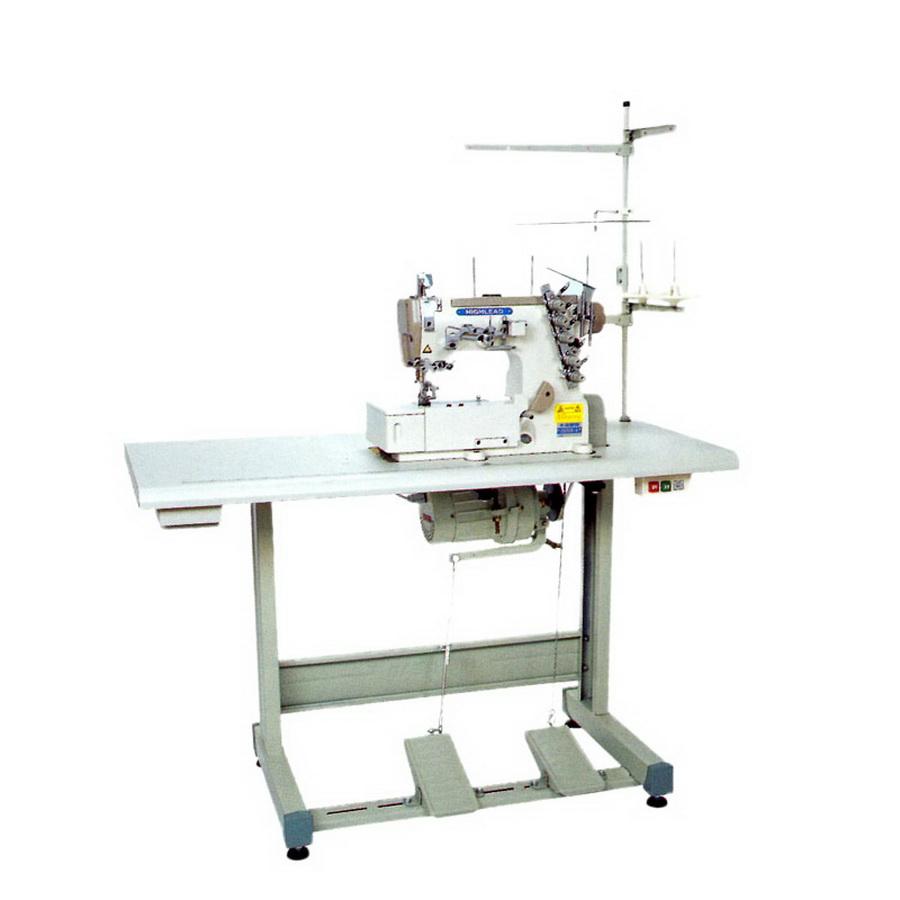

This machine comes with a table and motor assembled.
Manual
Download
