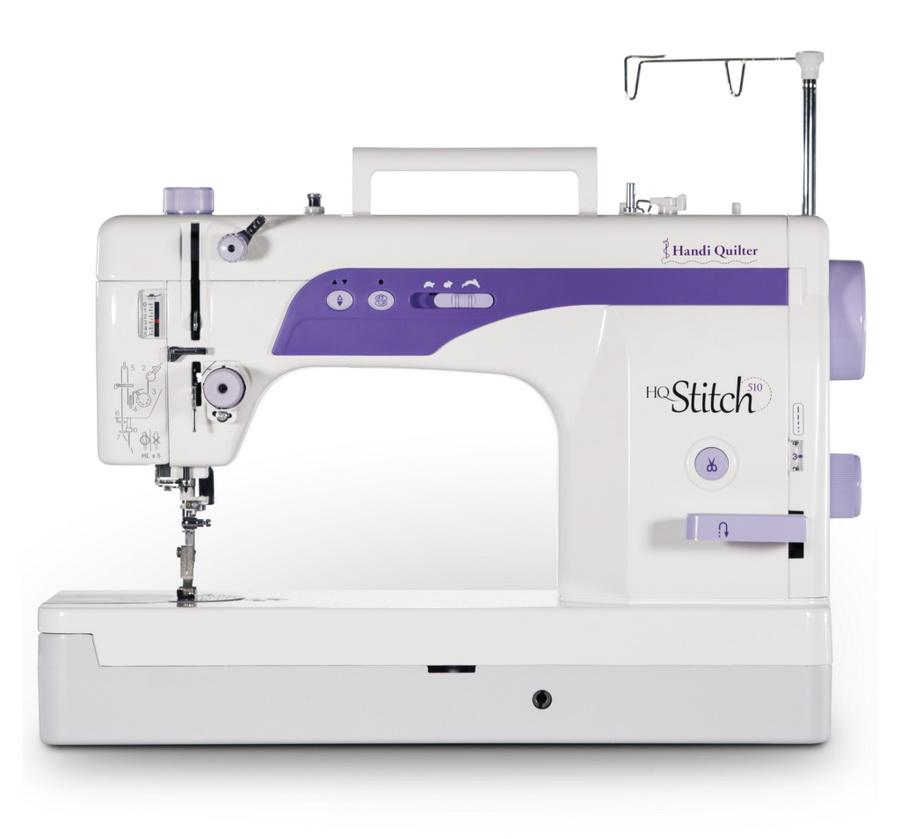

HQ Stitch 510 Machine

HQ Stitch 510 Machine

SKU : hq-sm09402

Handi Quilter

Sale price  $1,195.00 Regular price  $1,495.00

Free Shipping | 60-Day Returns* | Price Match Guarantee

Condition:  Brand New

Have you seen this item for less?

Product Videos

Product Information
Warranty
Accessories

10 Year Limited Warranty on Handi Quilter Machines

Handi Quilter, Inc. warrants this Product for a period of ten (10) years against defective materials and/or workmanship, five (5) years on electrical components and mechanical failure, and ninety (90) days FREE parts and labor

HQ Stitch 510 Machine

Click for larger view

The Workhorse

The Handi Quilter Stitch 510 is a must-have for every serious quilter. This powerful, high-speed straight stitch machine boasts a nearly 9 x 6 workspace, stitching speeds up to 1,600 stitches-per-minute (SPM), an automatic thread cutter, an easy needle threader, and an ergonomic knee presser-foot lift.Finish quilts faster with the HQ Stitch 510.

Included Accessories

Presser Foot, Hemmer Foot, Knee Lifter, Accessory Box, Dust Cover, Oil and Tools

Optional Accessories

1/4" Seam Foot, Convertible Free-motion Quilting Feet Set, Even-Feed Foot, Darning Foot and Plate, Extension Table, HLx5 Needles


Machine Comparison Chart

Models HQ Stitch 210 HQ Stitch 210 HQ Stitch 510 HQ Stitch 510 HQ Stitch 710 HQ Stitch 710
Maximum Stitch Width 5 mm N/A 9 mm
Maximum Stitch Length 4 mm 6 mm 5 mm
# of Stitches 20 1 170
Alphabet Stitches No N/A Yes
Elongate Stitches No N/A Yes
Mirror Designs No N/A Yes
Pattern Combinations No N/A Yes
Stitch Selection Easy Navigatiom Buttons N/A Direct Selection Buttons
Speed 650 SPM 1,600 SPM 1,000 SPM
Free Arm Yes No Yes
Drop Feed Yes Optional Cover Yes
Needles Positions 11 1 91
Needle Up/Down Memorized Memorized Memorized
Needle threader Built In Built In Built In
Thread Cutter Manual Electronic Electronic
# of Buttonholes 2 One Step Buttonholes N/A 10 One Step Buttonholes
Start/Stop Button Yes No Yes
Locking Stitch Button Yes No Yes
Easy Reverse Button Yes Yes Yes
Lighting Needle Area Needle Area 5 ultra bright LED lamps for shadow-free sewing
Display LED Screen with easy navigation keys None High resolution LCD touchscreen
Programmable Features No N/A Yes
Twin Needle Gaurd No No Yes
Straight Stitch Needle Plate Optional Accessory N/A Yes
Knee Lift No Yes Yes
Machine Size(W x H x D) 13.9 x 10 x 6.5 19.6 x 12.7 x 7 20.4 x 12.4 x 9.1
Machine Weight 12 lbs 32 lbs 26.5 lbs
Workspace (W x H) 5.1 x 4 9 x 5.5 11 x 4.7
Foot Pressure Adjustment No Yes Yes
Extra High Pressure Foot Lift No No Yes
Hook Type Top Loading, full rotary hook bobbin Vertical, full rotary, industrial hook bobbin Top Loading, full rotary hook bobbin
Bobbin Style Class 15 L Style Class 15
Thread Tension Control Manual Manual Automatic
Feed System 4 Piece Feed Dog Standard Dual feed ready
Bobbin Winding Auto Declutch Independant Motor Auto Declutch
Cover Hard Cover Dust Cover No

Add-on SewingMachinesPlus Branded Sewing Machine Mats

AVAILABLE IN 12 COLORS AND 4 SIZES

Small 12" x 18" | Medium 17" x 23" | Large 18" x 33" | XL 22" X 39"Red, Blue, & Gold Available in XXL 24" x 45"

  • Medium, Large, XL and XXL Sewing mats are 3/16" thick
  • Small Sewing mats are 1/8" thick
  • Reduces vibration to your machine
  • Helps reduce noise from your machine
  • Prevents scratches to the surface your machine is sitting on
  • Color matches your machines brand colors
  • Made of high quality Neoprene
  • Wipe down with damp cloth to clean
