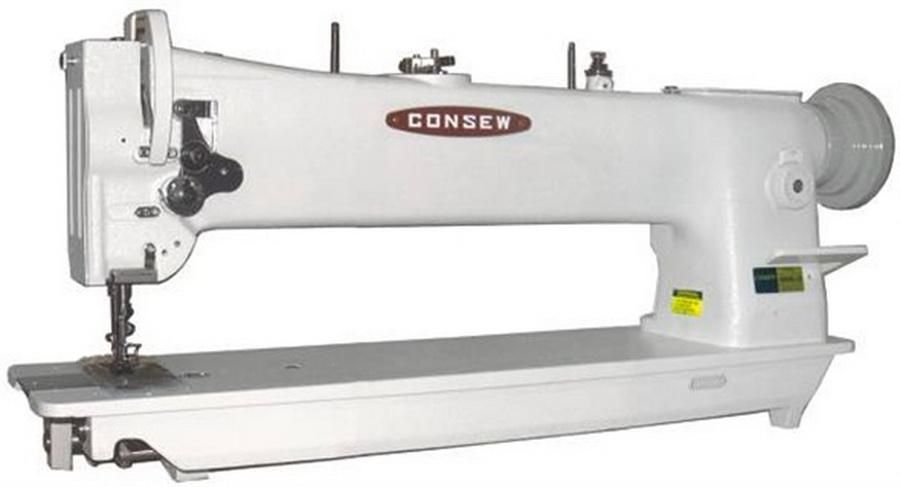

Consew 206RBL-18 Triple Feed, Heavy Duty, Single Needle, Drop Feed, Needle Feed, Compound Feed, Alternating (Walking) Presser Feet, Lockstich Machine with Assembled Table and Servo Motor

Consew 206RBL-18 Triple Feed Heavy Duty Single Needle Walking Foot Lockstitch Sewing Machine with Assembled Table and Servo Motor

The Consew 206RBL-18 is a heavy-duty, long-arm industrial sewing machine featuring a single-needle lockstitch system, triple feed, compound feed, and alternating walking presser feet. It is designed for sewing light to heavyweight materials used in commercial and industrial applications.

Equipped with a large horizontal-axis rotary hook and bobbin, centralized arm lubrication, adjustable reverse feed, locking stitch regulator, and safety clutch, this machine provides controlled stitching for leather, vinyl, canvas, upholstery, and similar materials. This package includes a fully assembled industrial sewing table and servo motor.

Applications

• Sewing light to heavyweight leather and vinyl
• Stitching canvas and synthetic materials
• Sewing coated and laminated fabrics
• Automotive, marine, and furniture upholstery
• Manufacturing tarpaulins and protective covers
• Producing sails, tents, and awnings
• Sewing camping trailer covers and umbrellas
• Manufacturing bags, luggage, and handbags
• Stitching travel accessories and outdoor equipment
• Sewing sports and camping equipment
• Manufacturing wearing apparel and outdoor clothing
• Stitching canvas shoes and slippers
• Sewing orthopedic appliances
• General industrial and commercial sewing applications

Ideal for: Upholstery manufacturers, leather goods manufacturers, marine upholstery businesses, canvas product manufacturers, luggage and handbag makers, outdoor equipment manufacturers, garment factories, and industrial sewing workshops.

Key Features

• Triple Feed Mechanism: Combines drop feed, needle feed, and alternating walking presser feet for controlled material feeding.
• Single Needle Lockstitch: Produces Type 301 lockstitches for industrial sewing applications.
• Heavy-Duty Construction: Designed for demanding sewing applications involving leather, canvas, vinyl, and layered materials.
• 18-Inch Long Arm: Provides an extended workspace for handling larger sewing projects.
• Compound Feed Walking Foot: Helps maintain consistent material movement during stitching.
• Large Horizontal-Axis Rotary Hook: Features an all-gear-driven hook mechanism for industrial lockstitch sewing.
• Large Bobbin: Provides increased thread capacity, reducing interruptions during sewing.
• Convenient Bobbin Replacement: The bobbin can be changed without removing the material being sewn.
• Built-In Bobbin Winder: Provides a convenient mechanism for winding bobbins.
• Extra-Long Stitch Capability: Supports stitch lengths up to 2-1/2 stitches per inch (10 mm).
• High Presser Foot Lift: Provides clearance up to 9/16" (14 mm).
• Adjustable Center Foot: Allows raising and lowering the center foot to accommodate different material thicknesses.
• Adjustable Reverse Feed: Reverse stitch length can be adjusted to match the forward stitch length.
• Locking Stitch Regulator: Helps prevent unwanted changes in stitch length caused by vibration.
• Safety Clutch: Features push-button re-engagement for the machine's safety clutch.
• Centralized Arm Lubrication: Provides lubrication to the machine's arm mechanism.
• Reservoir-Oiled Hook: Includes a micrometric control valve for hook lubrication adjustment.
• Heavy Thread Support: Includes a thread release finger for sewing operations involving heavy thread.
• Interchangeable Attachments: Compatible walking feet, needles, and selected attachments can be interchanged with Consew 226R-2 and 255RB-2 models.
• Maximum Sewing Speed: Supports a rated speed of 1,800 stitches per minute.
• Servo Motor Included: Provides adjustable motor speed for controlled sewing operations.

Heavy-Duty Sewing Capabilities

The Consew 206RBL-18 is designed for industrial sewing operations that require consistent feeding of thick materials, multiple layers, and large workpieces.

• Leather Sewing: Suitable for leather accessories, bags, upholstery, and similar products.
• Canvas and Vinyl Stitching: Designed for manufacturing tarpaulins, tents, awnings, and protective covers.
• Upholstery Applications: Suitable for automobile, boat, and furniture upholstery.
• Layered Material Feeding: Triple feed combines needle movement, lower feed, and walking presser feet to help move material layers together.
• Long Stitching Operations: Adjustable stitch length supports heavy-duty seam requirements.
• Reinforced Seams: Adjustable reverse stitching allows operators to secure the beginning and end of seams.
• Large Project Handling: The 18-inch workspace provides additional clearance for bulky sewing projects.

Sewing performance depends on material thickness, needle selection, thread size, and machine setup.

Technical Specifications

Maximum sewing speed depends on the selected material, thread, needle, and sewing operation.

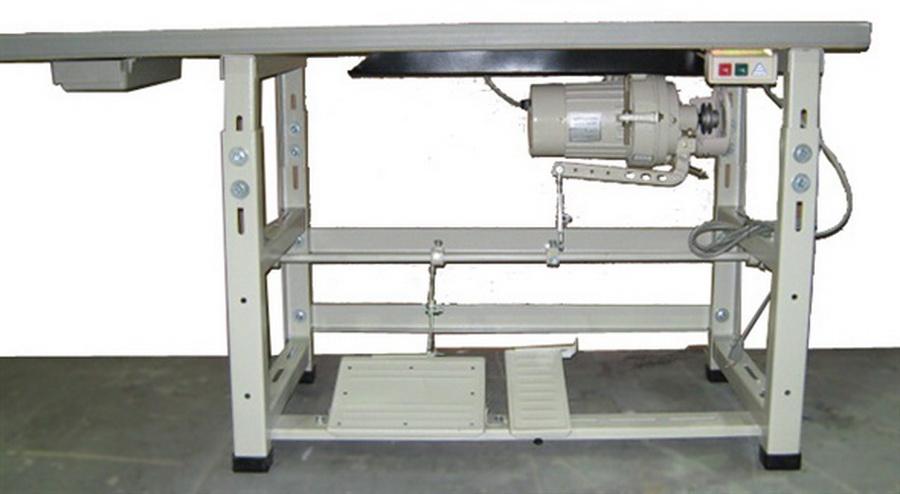

Table & Servo Motor Package

This Consew 206RBL-18 package includes a fully assembled industrial sewing table and a servo motor.

• Consew 206RBL-18 industrial sewing machine
• Fully assembled industrial sewing table
• Servo motor
• Foot-pedal-operated motor control

The servo motor provides speed control for sewing operations involving different materials and stitch requirements.

Adjustable motor speed can be useful for detailed stitching, positioning heavy materials, and maintaining control during difficult sewing operations.

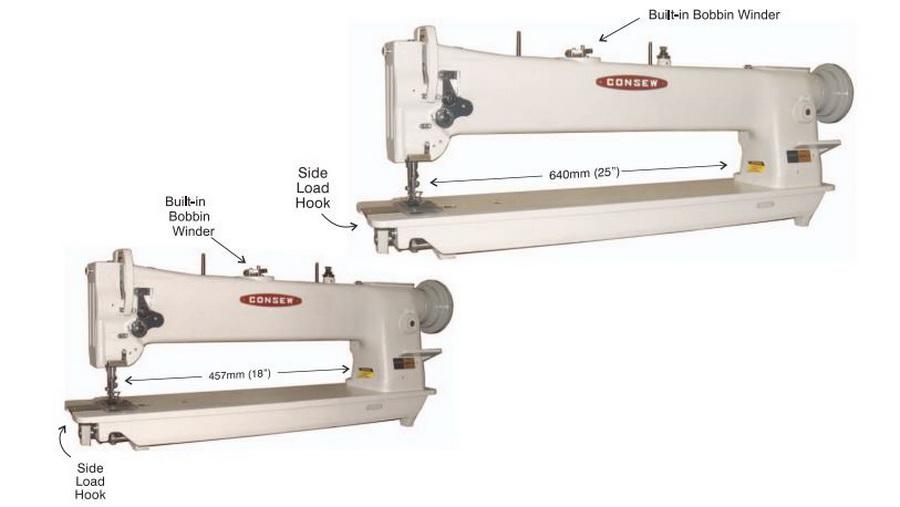

Consew 206RBL Series

The Consew 206RBL series includes long-arm industrial sewing machines designed for heavy-duty lockstitch operations.

• 206RBL-18: 18-inch long-arm configuration with safety clutch. (Currently Viewing)
• 206RBL-25: 25-inch long-arm configuration with safety clutch.
• 206RBL-30-1: 30-inch long-arm configuration. This model does not include the safety clutch.

Each configuration is designed for different workspace requirements, allowing operators to select the appropriate machine for larger materials and sewing projects.

Optional Cool-Lite LED-10 Magnetic Light

The optional Cool-Lite LED-10 Magnetic Light provides additional illumination for the sewing work area.

Featuring 10 LED lights, this lamp attaches to suitable metal surfaces using its magnetic mounting base. The integrated on/off switch provides convenient lighting control.

• Power: 0.5 W
• Voltage: AC 110-240 V
• Frequency: 50/60 Hz
• Lighting: 10 LEDs
• Mounting: Magnetic Base
• Control: On/Off Switch

The LED-10 light is an optional accessory and is not included unless selected separately.
