Consew 206RBL-25 Triple Feed, Heavy Duty, Single Needle, Drop Feed, Needle Feed, Compound Feed, Alternating (Walking) Presser Feet, Lockstich Machine with Assembled Table and Servo Motor

Consew 206RBL-25 Heavy-Duty Long-Arm Walking Foot Sewing Machine with Table and Servo Motor

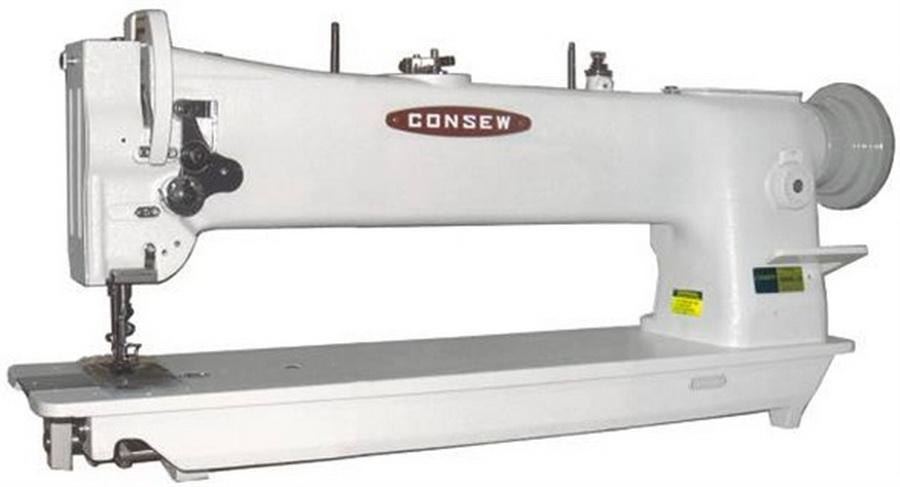

The Consew 206RBL-25 is a heavy-duty, single-needle, triple-feed industrial lockstitch sewing machine designed for sewing medium to heavy-weight materials. Its compound feeding system combines drop feed, needle feed, and alternating walking presser feet to provide consistent material feeding during demanding sewing applications.

Featuring a 25-inch (635 mm) long-arm workspace, large horizontal-axis rotary hook and bobbin, adjustable reverse feed, centralized arm lubrication, and a safety clutch, this machine is suitable for upholstery, leatherwork, canvas products, and other industrial sewing operations.

This package includes a Fully Assembled Table and Servo Motor.

Applications

• Sewing medium to heavy-weight materials, including leather, vinyl, canvas, upholstery fabrics, and synthetics.
• Stitching coated, laminated, and other demanding industrial fabrics.
• Automotive, marine, and furniture upholstery applications.
• Manufacturing tarpaulins, protective covers, tents, sails, and awnings.
• Sewing camping trailer covers, umbrellas, and outdoor equipment.
• Production of handbags, luggage, travel accessories, and industrial bags.
• Manufacturing sports equipment, camping equipment, and outdoor clothing.
• Stitching canvas shoes, slippers, orthopedic appliances, and related products.
• Working with larger materials that benefit from an extended sewing workspace.

Ideal for: Upholstery workshops, leather goods manufacturers, marine canvas shops, automotive upholstery businesses, and industrial sewing operations requiring a heavy-duty, long-arm walking foot machine.

Key Features

• Triple-Feed Walking Foot System: Combines drop feed, needle feed, and alternating presser feet to help move multiple fabric layers evenly.

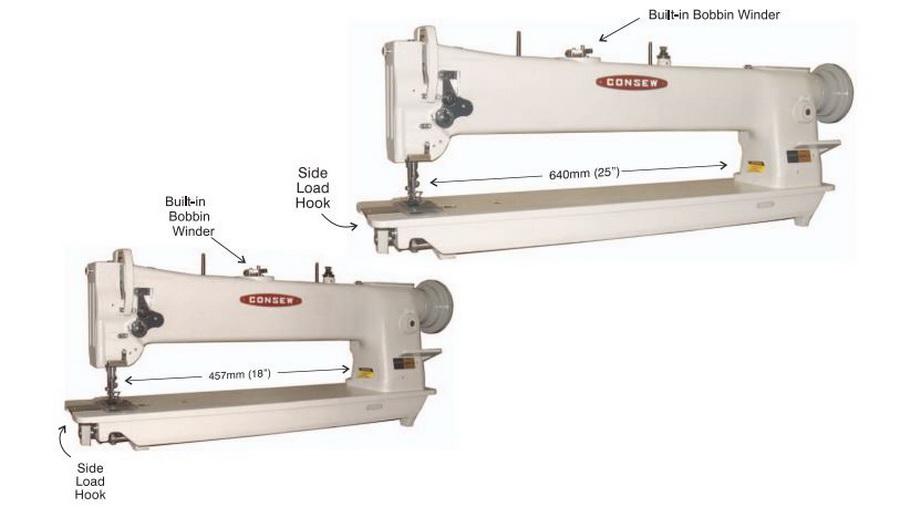

• 25-Inch Long Arm: Provides an extended 25" (635 mm) workspace for handling larger sewing projects and bulky materials.
• Extra-Long Stitch: Supports stitch lengths up to 10 mm, approximately 2-1/2 stitches per inch.
• Large Rotary Hook and Bobbin: Features a large horizontal-axis rotary hook and bobbin system. The bobbin can be changed without removing the material being sewn.
• High Presser Foot Lift: Provides up to 9/16" (14 mm) clearance for sewing thicker materials.
• Adjustable Reverse Feed: Allows reverse stitching to be adjusted to match the forward stitch length.
• Centralized Arm Lubrication: Includes a reservoir-oiled hook with a micrometric control valve.
• All-Gear-Driven Hook Mechanism: Uses a gear-driven mechanism with a large horizontal-axis hook.
• Safety Clutch: Includes a safety clutch with push-button re-engagement.
• Adjustable Center Presser Foot: Allows the center foot to be raised or lowered to accommodate different material thicknesses.
• Locking Stitch Regulator: Helps prevent stitch-length adjustments from changing due to vibration.
• Heavy-Thread Support: Includes a thread-release finger for sewing with heavy thread.
• Built-In Bobbin Winder: Provides convenient bobbin winding.
• Interchangeable Components: Walking feet, needles, and certain attachments are interchangeable with Consew models 226R-2 and 255RB-2.
• Adaptable Sewing Components: The needle plate, presser foot, and feed dog can be changed for specialized sewing operations.

Stitching Capabilities

The Consew 206RBL-25 uses a Type 301 lockstitch combined with a triple-feed walking foot mechanism. This system helps maintain consistent stitching when sewing layered, thick, or difficult-to-feed materials.

• Stitch Type: 301 Lockstitch
• Feeding System: Drop Feed, Needle Feed, and Walking Presser Feet
• Maximum Stitch Length: 10 mm
• Reverse Stitching: Adjustable
• Maximum Sewing Speed: 1,800 Stitches Per Minute
• Presser Foot Clearance: 9/16" (14 mm)

Its extended arm provides additional space for handling large upholstery panels, canvas assemblies, covers, and other oversized sewing projects.

Note: Maximum operating speed depends on the thread, material, and sewing application.

Technical Specifications

Table & Servo Motor Package

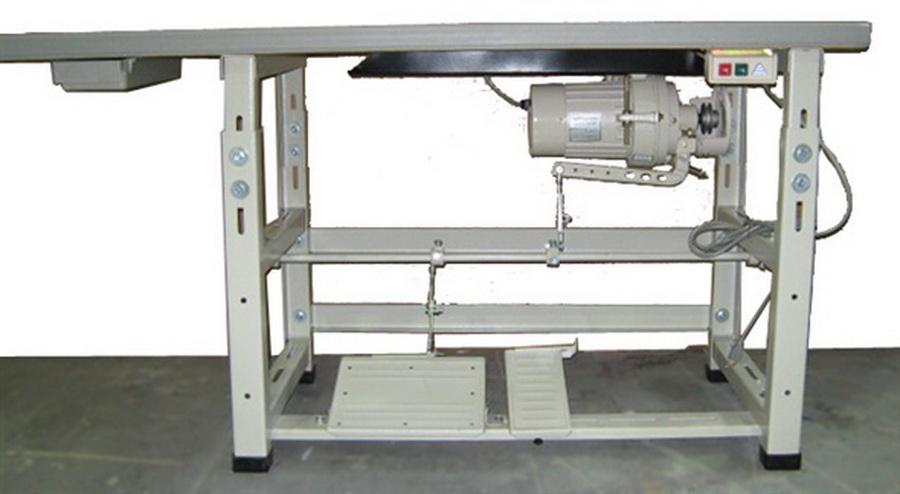

This Consew 206RBL-25 package includes a fully assembled industrial sewing machine table and servo motor.

The servo motor provides speed control, allowing operators to adjust sewing speed according to their experience, material thickness, and stitching requirements. Unlike a continuously running clutch motor, a servo motor remains quiet when the machine is not sewing.

• Fully assembled industrial sewing table included
• Servo motor included
• Adjustable sewing speed for improved operator control
• Suitable for precision stitching and heavy-duty sewing applications

Optional Cool-Lite LED-10 Magnetic Light

The Cool-Lite LED-10 Magnetic Light is an optional sewing machine accessory that provides additional illumination around the needle and work area.

It features 10 LED lights, a magnetic mounting base, and a convenient on/off switch. The magnetic attachment allows the lamp to be positioned on a suitable metal surface.

• Lighting: 10 LED Lights
• Power: 0.5 W
• Voltage: AC 110-240V
• Frequency: 50/60 Hz
• Mounting: Magnetic Base
• Switch: On/Off Switch on Magnetic Mount
• Application: Sewing Machine Work Area Lighting

Note: The Cool-Lite LED-10 is an optional accessory and is not included unless selected or purchased separately.

Important Notes

• The Consew 206RBL-25 features a 25-inch long arm designed for handling larger sewing projects.
• The safety clutch is included on the 206RBL-25 model.
• Maximum sewing speed depends on the material, thread, and operating conditions.
• Presser feet, needles, and certain attachments are interchangeable with compatible Consew models 226R-2 and 255RB-2.
• Optional accessories and specialized attachments may require separate purchase.
