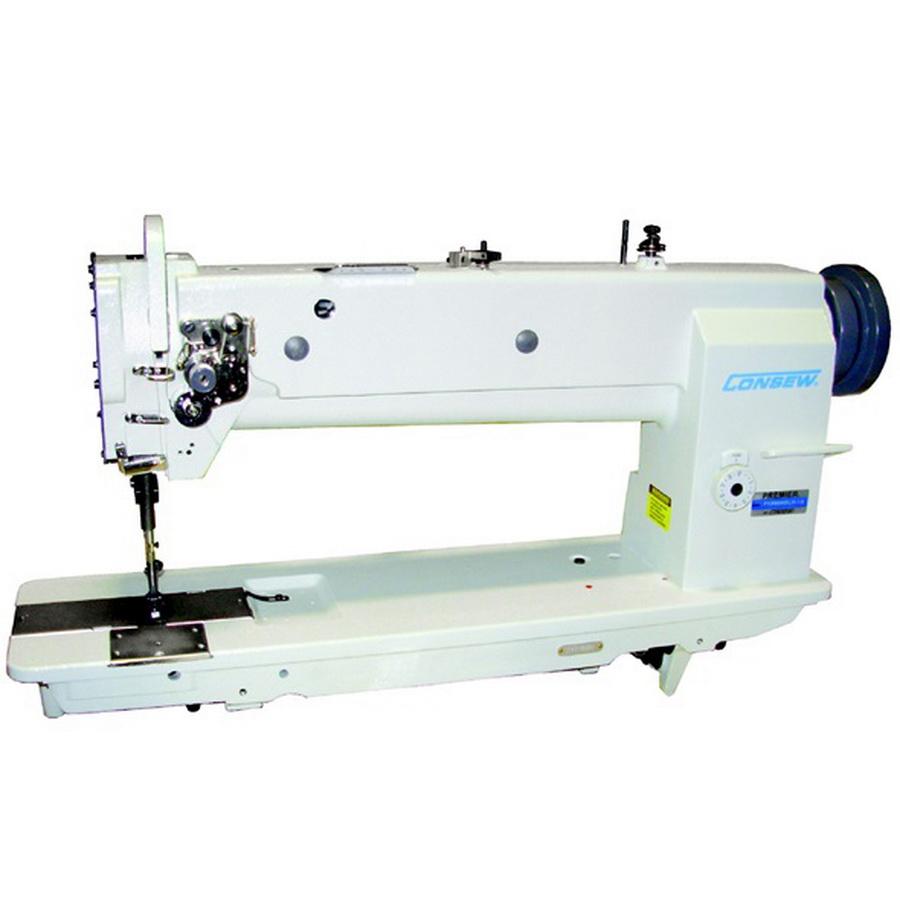

Consew Premier 1255RBLH-18 Long Arm Machine with Assembled Table and Servo Motor

Consew Premier 1255RBLH-18 Long Arm Machine

The Consew Premier 1255RBLH-18 is a heavy-duty industrial lockstitch sewing machine featuring an 18-inch long arm and up to 6 inches of vertical working space. Designed for professional sewing applications, this machine provides additional room for handling larger and bulkier materials.

Featuring drop feed, needle feed, and alternating walking presser feet, the machine uses a compound-feed system for controlled material feeding. Its large vertical-axis, automatically lubricated hook and adjustable oil pump system support demanding industrial sewing operations.

The machine also features a locking stitch regulator, large top-loaded bobbin, safety clutch, reverse stitching, and quick tension release.

Package Includes: Consew Premier 1255RBLH-18 Long Arm Sewing Machine, Fully Assembled Table, and 3/4 HP Adjustable-Speed Servo Motor.

Applications

The Consew Premier 1255RBLH-18 is designed for sewing medium to heavyweight materials that require additional working space and controlled material feeding.

• Upholstery: Suitable for sewing upholstery materials, cushions, and related fabric products.
• Leather Goods: Designed for compatible medium to heavyweight leather sewing applications.
• Bag Manufacturing: Suitable for stitching luggage, suitcases, and other heavy-duty bags.
• Canvas Products: Designed for sewing tents, covers, and similar heavy fabric products.
• Large Sewing Projects: The extended arm provides additional space for handling bulky or oversized materials.
• Industrial Textiles: Suitable for manufacturing selected mats, protective covers, and other sewn products.

Ideal For: Upholstery workshops, leatherworkers, canvas product manufacturers, bag manufacturers, and professional industrial sewing facilities.

Key Features

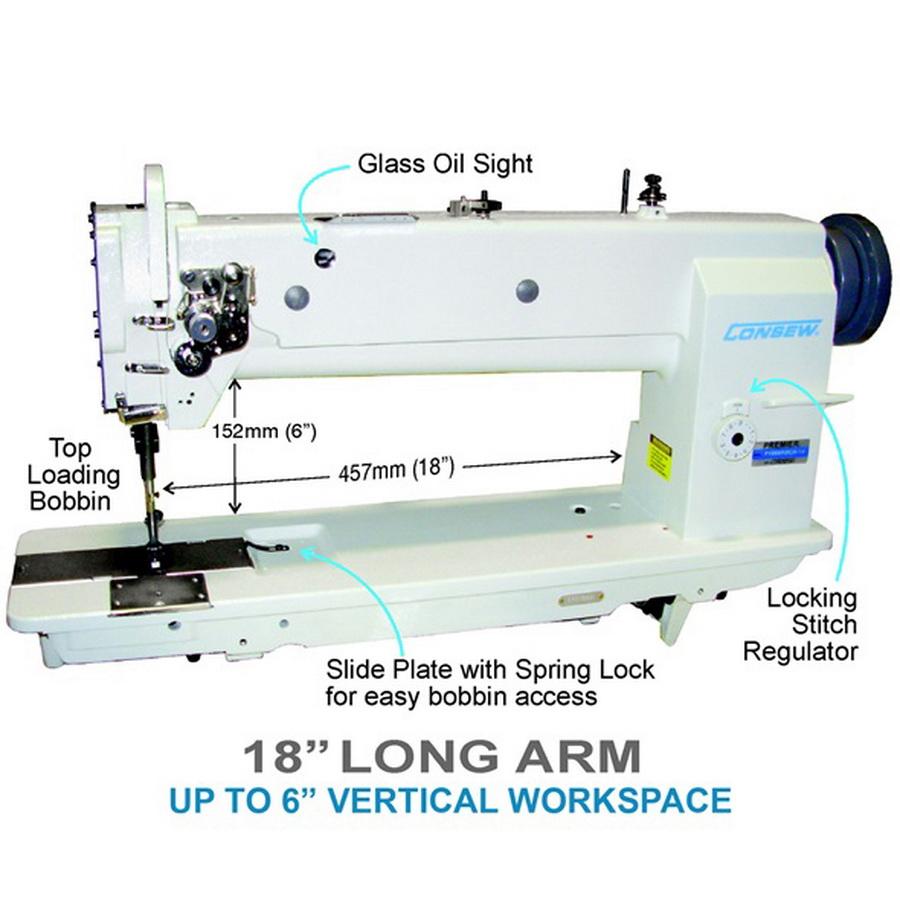

• 18-Inch Long Arm: Provides extended horizontal working space for larger sewing projects.
• High Vertical Clearance: Offers up to 6 inches (152 mm) of working height beneath the arm.
• Compound Feed Walking Foot: Combines drop feed, needle feed, and walking presser feet for controlled material movement.
• Large Vertical-Axis Hook: Features an automatically lubricated hook designed for industrial lockstitch sewing.
• Adjustable Oil Pump System: Provides lubrication with adjustable oil flow.
• Upper Oil Sight Glass: Allows visual observation of the machine's lubrication system.
• Barrel-Type Locking Stitch Regulator: Provides stitch-length adjustment with a locking mechanism.
• Reverse Stitching: Includes reverse-feed operation for reinforcing stitched seams.
• Large Top-Loaded Bobbin: Features a top-loading bobbin arrangement with convenient access.
• Safety Clutch: Helps protect the hook mechanism if a sewing obstruction occurs.
• Locking Slide Plate: Features a spring-locking slide plate for convenient bobbin access.
• Quick Tension Release: Provides a mechanism for releasing thread tension when required.
• Adjustable Take-Up Thread Guide: Allows adjustment of thread-loop timing.
• Long Stitch Capability: Supports stitch lengths up to 9 mm for suitable sewing applications.
• Industrial Sewing Speed: Maximum sewing speed of 1,800 stitches per minute, depending on the thread, material, and operation.

Stitching Capabilities

The Consew Premier 1255RBLH-18 features a single-needle, compound-feed lockstitch system designed for sewing medium to heavyweight materials.

Its walking-foot mechanism works together with the needle-feed and drop-feed systems to help move materials through the machine during sewing.

The extended working area makes the machine suitable for larger projects that may be difficult to position under a standard industrial sewing machine arm.

• Stitch Type: 301 Lockstitch
• Number of Needles: 1
• Feeding Mechanism: Compound Feed / Walking Foot
• Maximum Stitch Length: 9 mm
• Maximum Sewing Speed: 1,800 S.P.M.
• Reverse Stitching: Yes
• Needle System: 135 x 17

Technical Specifications

Table & Servo Motor Package

This package includes a Fully Assembled Table and a 3/4 Horsepower CSM-550-1 Adjustable-Speed Servo Motor.

The assembled table provides a working surface for the sewing machine, while the servo motor allows the operator to control sewing speed according to the material and application.

The adjustable-speed servo motor is particularly useful when working with bulky materials or completing sewing tasks requiring controlled stitching speed.

Motor Options

Industrial sewing machines commonly use clutch motors or servo motors. Servo motors provide adjustable speed control and remain quiet when the foot pedal is not engaged.

• Adjustable sewing speed for different materials.
• Controlled operation for detailed sewing tasks.
• Quiet operation when the pedal is released.
• Suitable for sewing applications requiring slower speeds.

Included Motor: CSM-550-1 Adjustable-Speed Servo Motor, 3/4 HP.

Optional Cool-Lite LED-10 Magnetic Light

The Cool-Lite LED-10 Magnetic Light is an optional accessory designed to provide additional illumination around the sewing area.

Featuring 10 LED lights, this magnetic lamp provides bright white lighting for the work area. Its magnetic base allows convenient attachment to suitable metal surfaces.

• LED Lights: 10
• Power: 0.5 W
• Voltage: AC 110-240V
• Frequency: 50/60 Hz
• Mounting: Magnetic Base
• Power Source: AC Plug
• Switch: On/Off Switch on Magnetic Mount
• Application: Sewing Machine Work-Area Lighting

Note: This magnetic light is an optional accessory and is not included unless selected separately.

Important Notes

• Maximum sewing speed depends on the thread, material, and sewing operation.
• The machine is designed primarily for medium to heavyweight sewing applications.
• Proper needle and thread selection is necessary when working with different materials.
• Automatic thread trimming and automatic backtacking have not been confirmed as standard features of this machine configuration.
• The machine features manual reverse stitching and a safety clutch.
• Manufacturer specifications and machine appearance may change without notice.
