Hotronix Air Fusion IQ Heat Press - Table Top
Hotronix Air Fusion IQ Heat Press - Table Top - Sewingmachinesplus.com

Hotronix Air Fusion IQ Heat Press - Table Top
$220.00 OFF THE ESSENTIAL PLATEN SET! Expires 06/26

SKU : XRF-TT

Hotronix

$4,995.00

🏆 50+ Year Authorized Dealer | 60-Day Money Back Guarantee
Price Match — We Beat Any Price
Free Shipping on Orders Over $49 | Over 1 Million Happy Customers!

Condition:  Brand New

Have you seen this item for less?

Product Videos

Product Information

MORE CAPABILITY LESS COST

SAVE $220 ON THE SHOP ESSENTIALS 3 PLATEN SET WITH ANY 16” × 20” HEAT PRESS PURCHASE

Make a smarter heat press purchase with limited-time savings on a bundle of essential platens, designed to help you say YES! to more orders and more profit!

From now through the end of June, when you purchase a 16” × 20” heat press, you can save over 40% on a set of three core platens.

Get the Shop Essentials 6” × 10”, 8” × 10”, and 11” × 15” platens so you’re ready for any size order!

BUNDLE BENEFITS - DO MORE WITH LESS!

  • Take on more jobs with confidence
  • Reduce setup time & increase efficiency
  • Expand decoration capabilities with one heat press

Set your shop up for success with flexibility you can put to work from day one.

MORE OPTIONS. LESS INVESTMENT.

Discount applies only to the Shop Essentials platen bundle (6” × 10”, 8” × 10”, and 11” × 15”) with purchase of a Hotronix® 16” × 20” heat press. Valid for orders that ship during the promotional period and while supplies last. Offer expires 6/26/26. Applies to North American Distributors only.

ADD A TAG ALONG HP PLATEN WITH HEAT PRESS PURCHASE

The Tag Along™ HP Platen, a patented design of Livingston Systems, allows you to thread your garment onto the platen and apply a full front and tagless label in one simple step. It’s compatible with select 16" x 20" heat presses.

Features:

  • Must be used with a threadable heat press
  • Design helps load shirts straight
  • 16" x 15" full front print area
  • 3.25" x 3.25" tag print area
  • Actual weight: 20 lbs.
  • Ship weight: 23lbs.
  • Ship dim. 26″ x 20″ x 5″

logo

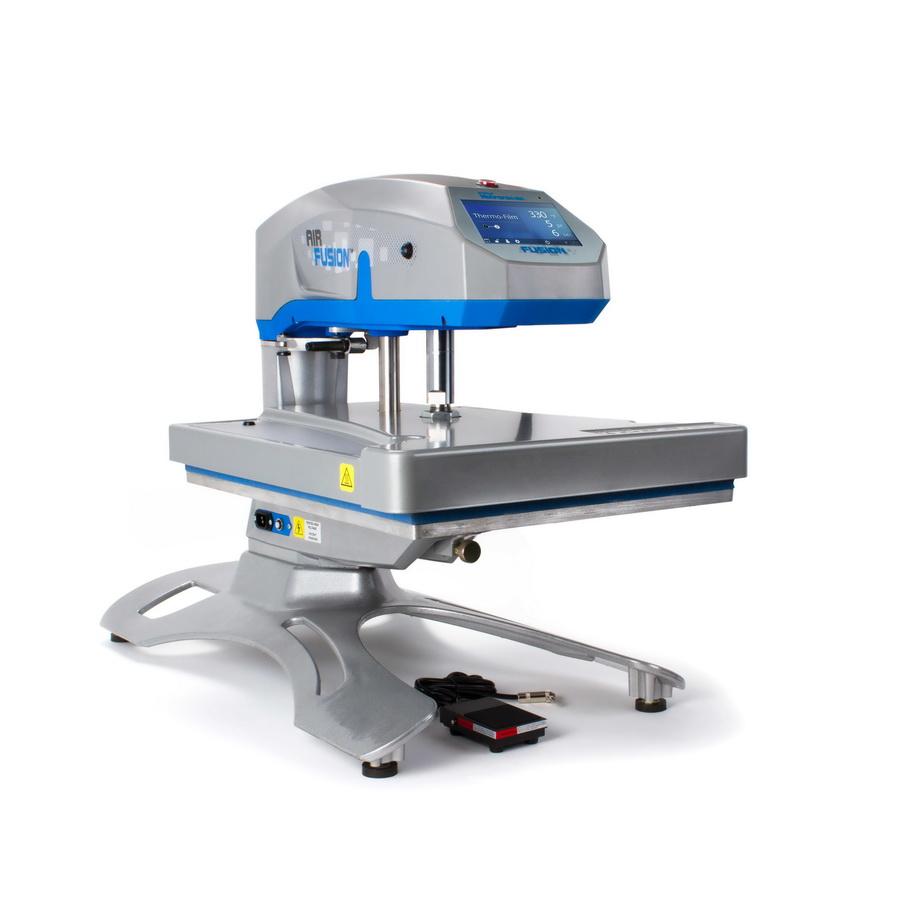

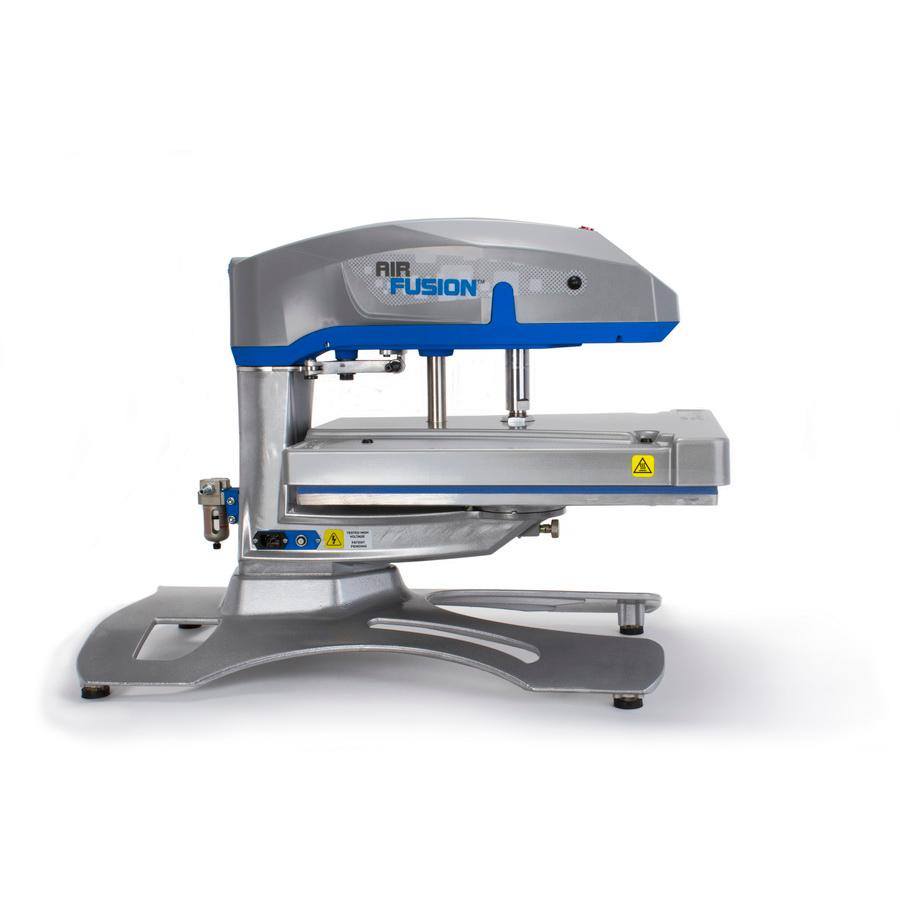

Hotronix® Air Fusion IQ® Heat Press - Table Top

Smarter Air-Powered Technology. Faster Production.

Perfect for high-volume shops, specialty decorators, and Direct-to-Garment printing, the air-powered Air Fusion IQ heat press features a 16" x 20" heated upper platen and swing motion, for a heat-free workspace.

  • New Fusion IQ™ controller features troubleshooting and self-diagnostic capabilities
  • Track performance and print productivity reports from anywhere with the new Hotronix Online Portal
  • New larger, higher resolution screen with improved touchscreen response
  • Exclusive Auto-Adjust Pressure™ automatically adjusts to the thickness of the item being printed
  • Full Threadability™ on the lower platen: position the garment, rotate, and decorate any area
  • Auto open, auto swing design, with a foot pedal reduces fatigue
  • Swing motion allows for a heat-free workspace
  • Touchscreen stores frequently used settings, production cycle counter, and auto on/off capability
  • Data interface port allows for future software upgrades
  • User-safe two-hand push-button operation
  • 120 PSI for high-pressure applications
  • Optional quick-change platens; no tools required
  • Program up to four different pressure and time settings
  • Die pressure cast 365 aluminum corrosion-free framework
  • Requires air compressor (not included) with minimum ½ horsepower and 2-gallon hold tank. Uses 2.3 CFM
  • Electrical Options:
    • 120 v; 15 amps; 1800 w
    • 240 v; 15 amps; 1800 w
  • Must have dedicated circuit breaker

Universal Features

  • Made in the USA
  • Cast-in tubular heating
  • Powder coated finish
  • UL/ULC/CE

Details

  • Actual weight: 126 lbs.
  • Ship weight: 180 lbs.
  • Actual Dimesions: 34" x 18" x 24"
  • Ship dim. 37" x 24" x 24

Warranty

  • Heating Element - Lifetime
  • Framework - 5 years
  • Circuit Board - 2 years
  • Parts & Labor - 1 year

Optional Platens

  • 7" round
  • 6" x 10"
  • 8" x 10"
  • 11" x 15"

Manual

Download

Choosing the right platen:

Download

Brochure

Download

Air & Electricity Requirements

Download
